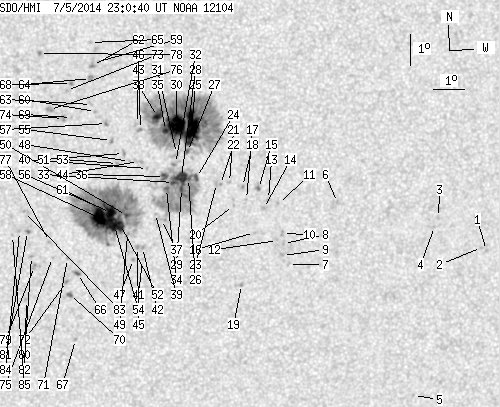

SDO HMI 2014-07-05 23:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 156.74 | 888.50 | 82.69 | 469.16 | -11.80 | 268.43 | 13.33 | 220.93 | 0.3471 | 306.2 | 111.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-05 23:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.45 | 0.00 | 0.83 | -14.51 | 279.63 | 24.53 | 233.07 | 0.5047 | 731.0 | 553.4 | |
| 0.00 | 0.91 | 0.00 | 0.52 | -14.41 | 279.44 | 24.34 | 233.04 | 0.5016 | 724.0 | 661.0 | |
| 0.00 | 1.45 | 0.00 | 0.82 | -13.41 | 277.86 | 22.76 | 232.92 | 0.4736 | 611.0 | 486.1 | |
| 0.00 | 1.00 | 0.00 | 0.56 | -13.69 | 277.75 | 22.65 | 232.30 | 0.4749 | 652.0 | 522.2 | |
| 0.00 | 1.18 | 0.00 | 0.69 | -19.16 | 277.70 | 22.60 | 223.75 | 0.5269 | 711.0 | 458.0 | |
| 0.00 | 1.54 | 0.00 | 0.84 | -12.85 | 274.42 | 19.32 | 229.42 | 0.4265 | 777.0 | 608.2 | |
| 0.00 | 1.63 | 0.00 | 0.90 | -14.80 | 272.96 | 17.86 | 223.79 | 0.4302 | 678.0 | 537.3 | |
| 0.00 | 1.45 | 0.00 | 0.79 | -14.12 | 272.74 | 17.64 | 224.59 | 0.4203 | 735.0 | 685.2 | |
| 0.00 | 0.73 | 0.00 | 0.40 | -14.51 | 272.74 | 17.64 | 223.93 | 0.4245 | 836.0 | 703.8 | |
| 0.00 | 2.09 | 0.00 | 1.14 | -13.80 | 272.68 | 17.58 | 225.05 | 0.4162 | 789.0 | 730.3 | |
| 0.00 | 1.18 | 0.00 | 0.64 | -12.84 | 272.48 | 17.38 | 226.45 | 0.4035 | 715.0 | 598.4 | |
| 0.00 | 0.64 | 0.00 | 0.35 | -14.02 | 272.53 | 17.43 | 224.43 | 0.4169 | 799.0 | 649.6 | |
| 0.00 | 1.36 | 0.00 | 0.74 | -12.71 | 272.14 | 17.04 | 226.14 | 0.3981 | 825.0 | 736.2 | |
| 0.00 | 2.81 | 0.00 | 1.52 | -12.99 | 272.00 | 16.90 | 225.38 | 0.3996 | 941.0 | 687.1 | |
| 0.64 | 3.18 | 0.34 | 1.71 | -12.36 | 271.79 | 16.69 | 226.22 | 0.3902 | 1001.6 | 788.9 | |
| 0.00 | 1.36 | 0.00 | 0.74 | -13.75 | 271.76 | 16.66 | 223.61 | 0.4053 | 762.0 | 625.5 | |
| 0.00 | 1.00 | 0.00 | 0.54 | -12.70 | 271.42 | 16.32 | 224.95 | 0.3897 | 800.0 | 667.3 | |
| 0.00 | 1.27 | 0.00 | 0.68 | -12.28 | 271.27 | 16.17 | 225.46 | 0.3833 | 933.0 | 887.3 | |
| 0.00 | 1.82 | 0.00 | 0.99 | -15.41 | 271.46 | 16.36 | 220.32 | 0.4213 | 846.0 | 709.0 | |
| 0.00 | 0.91 | 0.00 | 0.49 | -12.88 | 271.01 | 15.91 | 223.89 | 0.3872 | 747.0 | 621.4 | |
| 0.00 | 1.45 | 0.00 | 0.78 | -12.15 | 270.84 | 15.74 | 224.95 | 0.3769 | 862.0 | 732.7 | |
| 0.00 | 1.18 | 0.00 | 0.63 | -12.21 | 270.55 | 15.45 | 224.31 | 0.3743 | 793.0 | 669.8 | |
| 0.00 | 2.00 | 0.00 | 1.07 | -12.17 | 270.42 | 15.32 | 224.14 | 0.3724 | 676.0 | 627.0 | |
| 2.00 | 148.28 | 1.06 | 78.74 | -11.97 | 269.76 | 14.66 | 223.28 | 0.3627 | 822.1 | 280.9 | |
| 36.14 | 346.50 | 19.04 | 182.23 | -10.43 | 269.52 | 14.42 | 225.96 | 0.3422 | 1174.3 | 460.9 | |
| 1.63 | -24.00 | 0.87 | -24.00 | -12.00 | 269.51 | 14.40 | 222.73 | 0.3602 | 902.8 | 999999 | |
| 1.00 | -25.00 | 0.53 | -25.00 | -11.15 | 269.43 | 14.33 | 224.27 | 0.3493 | 787.6 | 999999 | |
| 10.17 | -24.00 | 5.39 | -24.00 | -11.96 | 269.28 | 14.18 | 222.34 | 0.3572 | 1107.5 | 999999 | |
| 1.91 | -24.00 | 1.01 | -24.00 | -12.31 | 269.30 | 14.20 | 221.72 | 0.3616 | 629.3 | 999999 | |
| 31.60 | -25.00 | 16.61 | -25.00 | -10.32 | 269.04 | 13.94 | 225.21 | 0.3354 | 1413.6 | 999999 | |
| 0.00 | 5.08 | 0.00 | 2.68 | -11.20 | 269.08 | 13.98 | 223.45 | 0.3460 | 107.0 | 298.2 | |
| 0.00 | 3.00 | 0.00 | 1.58 | -11.52 | 269.06 | 13.96 | 222.78 | 0.3496 | 771.0 | 829.5 | |
| 2.18 | -24.00 | 1.15 | -24.00 | -12.12 | 269.03 | 13.93 | 221.55 | 0.3564 | 915.7 | 999999 | |
| 1.36 | -24.00 | 0.72 | -24.00 | -12.30 | 268.81 | 13.71 | 220.76 | 0.3563 | 761.3 | 999999 | |
| 2.91 | -25.00 | 1.53 | -25.00 | -10.48 | 268.69 | 13.59 | 224.17 | 0.3331 | 1195.1 | 999999 | |
| 3.00 | -24.00 | 1.58 | -24.00 | -11.92 | 268.73 | 13.63 | 221.31 | 0.3508 | 1039.0 | 999999 | |
| 0.00 | 3.36 | 0.00 | 1.79 | -13.29 | 268.71 | 13.61 | 218.75 | 0.3673 | 293.0 | -40.8 | |
| 5.18 | -25.00 | 2.71 | -25.00 | -10.03 | 268.42 | 13.32 | 224.55 | 0.3248 | 1353.9 | 999999 | |
| 0.00 | 1.18 | 0.00 | 0.63 | -13.09 | 268.50 | 13.40 | 218.67 | 0.3628 | 585.0 | 453.2 | |
| 0.00 | 1.09 | 0.00 | 0.57 | -11.66 | 268.17 | 13.07 | 220.64 | 0.3416 | 634.0 | 476.2 | |
| 0.00 | 1.09 | 0.00 | 0.58 | -14.55 | 268.17 | 13.07 | 215.52 | 0.3782 | -527.0 | -355.4 | |
| 0.00 | 1.27 | 0.00 | 0.68 | -14.17 | 268.14 | 13.04 | 216.10 | 0.3730 | -870.0 | -706.9 | |
| 0.00 | 1.36 | 0.00 | 0.71 | -10.43 | 267.90 | 12.80 | 222.54 | 0.3235 | 945.0 | 731.3 | |
| 0.00 | 3.45 | 0.00 | 1.81 | -11.44 | 267.88 | 12.78 | 220.43 | 0.3356 | 502.0 | 607.3 | |
| 0.00 | 2.09 | 0.00 | 1.11 | -14.17 | 267.98 | 12.88 | 215.76 | 0.3714 | -878.0 | -715.4 | |
| 0.00 | 3.09 | 0.00 | 1.61 | -10.24 | 267.79 | 12.69 | 222.72 | 0.3201 | 623.0 | 621.4 | |
| 0.00 | 1.45 | 0.00 | 0.78 | -14.55 | 267.88 | 12.77 | 214.93 | 0.3754 | -811.0 | -661.4 | |
| 0.00 | 0.82 | 0.00 | 0.43 | -11.43 | 267.59 | 12.49 | 219.80 | 0.3325 | 678.0 | 551.9 | |
| 0.00 | 2.18 | 0.00 | 1.16 | -13.75 | 267.64 | 12.54 | 215.72 | 0.3627 | -751.0 | -628.1 | |
| 1.27 | 273.68 | 0.67 | 144.47 | -13.14 | 267.57 | 12.47 | 216.61 | 0.3542 | -1145.6 | -524.5 | |
| 0.00 | 2.81 | 0.00 | 1.48 | -11.18 | 267.39 | 12.29 | 219.85 | 0.3272 | 738.0 | 662.4 | |
| 4.00 | -50.00 | 2.12 | -50.00 | -13.43 | 267.40 | 12.30 | 215.74 | 0.3562 | -1067.8 | 999999 | |
| 0.00 | 1.36 | 0.00 | 0.71 | -11.49 | 267.21 | 12.11 | 218.83 | 0.3293 | -933.0 | -688.3 | |
| 11.62 | -50.00 | 6.16 | -50.00 | -13.46 | 267.21 | 12.10 | 215.27 | 0.3547 | -1107.5 | 999999 | |
| 0.00 | 2.18 | 0.00 | 1.14 | -10.76 | 266.99 | 11.89 | 219.77 | 0.3178 | 927.0 | 760.3 | |
| 12.98 | -50.00 | 6.86 | -50.00 | -13.04 | 267.06 | 11.96 | 215.64 | 0.3478 | -1479.1 | 999999 | |
| 0.00 | 2.27 | 0.00 | 1.18 | -10.23 | 266.81 | 11.71 | 220.47 | 0.3091 | 950.0 | 758.4 | |
| 24.70 | -50.00 | 13.04 | -50.00 | -13.23 | 266.75 | 11.65 | 214.62 | 0.3474 | -1348.0 | 999999 | |
| 0.00 | 1.27 | 0.00 | 0.66 | -8.29 | 266.50 | 11.40 | 224.19 | 0.2817 | 816.0 | 675.8 | |
| 0.00 | 1.18 | 0.00 | 0.61 | -9.85 | 266.45 | 11.35 | 220.41 | 0.3004 | 865.0 | 722.3 | |
| 0.27 | -50.00 | 0.14 | -50.00 | -12.81 | 266.54 | 11.43 | 214.84 | 0.3398 | -1358.0 | 999999 | |
| 0.00 | 2.91 | 0.00 | 1.50 | -8.41 | 266.31 | 11.21 | 223.42 | 0.2811 | 1080.0 | 917.2 | |
| 0.00 | 1.82 | 0.00 | 0.94 | -9.63 | 266.32 | 11.22 | 220.57 | 0.2962 | 751.0 | 623.4 | |
| 0.00 | 3.63 | 0.00 | 1.88 | -8.81 | 266.26 | 11.16 | 222.30 | 0.2854 | 1024.0 | 821.3 | |
| 0.00 | 1.18 | 0.00 | 0.61 | -7.69 | 266.23 | 11.13 | 225.04 | 0.2715 | 783.0 | 558.5 | |
| 1.00 | 2.91 | 0.53 | 1.55 | -14.97 | 266.10 | 10.99 | 210.41 | 0.3655 | -769.4 | -579.0 | |
| 0.00 | 1.45 | 0.00 | 0.78 | -17.11 | 266.15 | 11.05 | 207.69 | 0.3958 | -765.0 | -558.4 | |
| 0.00 | 1.73 | 0.00 | 0.89 | -8.96 | 265.67 | 10.57 | 220.40 | 0.2807 | 944.0 | 808.7 | |
| 0.00 | 1.00 | 0.00 | 0.52 | -10.03 | 265.70 | 10.60 | 218.11 | 0.2948 | 680.0 | 510.3 | |
| 1.18 | 2.91 | 0.63 | 1.55 | -15.65 | 265.87 | 10.77 | 208.97 | 0.3731 | -981.0 | -708.0 | |
| 0.00 | 0.82 | 0.00 | 0.43 | -14.49 | 265.75 | 10.65 | 210.32 | 0.3559 | -731.0 | -603.4 | |
| 0.00 | 1.36 | 0.00 | 0.72 | -15.23 | 265.75 | 10.65 | 209.28 | 0.3663 | -852.0 | -757.7 | |
| 0.00 | 1.18 | 0.00 | 0.61 | -9.18 | 265.52 | 10.42 | 219.50 | 0.2819 | 781.0 | 614.3 | |
| 0.00 | 3.45 | 0.00 | 1.79 | -10.05 | 265.45 | 10.35 | 217.39 | 0.2926 | 941.0 | 736.1 | |
| 0.00 | 0.54 | 0.00 | 0.29 | -14.45 | 265.27 | 10.17 | 209.24 | 0.3515 | -660.0 | -528.7 | |
| 0.00 | 4.00 | 0.00 | 2.06 | -9.77 | 265.00 | 9.90 | 216.78 | 0.2842 | 806.0 | 743.0 | |
| 0.00 | 1.18 | 0.00 | 0.62 | -13.94 | 265.15 | 10.05 | 209.71 | 0.3432 | -378.0 | -412.1 | |
| 0.00 | 2.00 | 0.00 | 1.02 | -8.02 | 264.64 | 9.54 | 219.82 | 0.2574 | 1042.0 | 817.0 | |
| 0.00 | 2.63 | 0.00 | 1.39 | -14.73 | 264.71 | 9.60 | 207.49 | 0.3511 | -952.0 | -748.5 | |
| 0.00 | 1.27 | 0.00 | 0.67 | -14.41 | 264.60 | 9.50 | 207.66 | 0.3456 | -931.0 | -725.6 | |
| 0.00 | 1.73 | 0.00 | 0.91 | -13.61 | 264.44 | 9.34 | 208.41 | 0.3329 | -988.0 | -855.9 | |
| 0.00 | 1.45 | 0.00 | 0.77 | -15.82 | 264.50 | 9.40 | 205.58 | 0.3654 | -623.0 | -550.2 | |
| 0.00 | 1.09 | 0.00 | 0.57 | -12.97 | 264.32 | 9.22 | 209.06 | 0.3227 | -892.0 | -685.8 | |
| 0.00 | 1.54 | 0.00 | 0.81 | -13.61 | 264.18 | 9.08 | 207.76 | 0.3308 | -822.0 | -671.8 | |
| 0.00 | 1.09 | 0.00 | 0.57 | -13.73 | 263.97 | 8.86 | 207.01 | 0.3310 | -771.0 | -618.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
