SDO HMI 2014-07-05 23:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 303.06 | 1530.13 | 159.48 | 806.01 | -7.34 | 238.50 | -16.61 | 123.53 | 0.3403 | 4.2 | -31.9 | |
|
previous
or next observation for the same group /

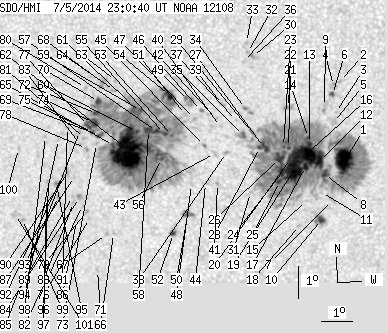

back to the solar disc SDO HMI 2014-07-05 23:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 34.32 | 690.19 | 17.74 | 358.67 | -7.59 | 242.67 | -12.43 | 131.52 | 0.2863 | 1405.4 | 456.5 | |
| 0.00 | 1.00 | 0.00 | 0.51 | -5.15 | 242.58 | -12.53 | 124.22 | 0.2624 | -932.0 | -754.5 | |
| 0.00 | 0.82 | 0.00 | 0.42 | -6.11 | 242.43 | -12.67 | 126.84 | 0.2738 | 780.0 | 571.1 | |
| 0.00 | 4.00 | 0.00 | 2.05 | -5.27 | 242.39 | -12.72 | 124.22 | 0.2662 | -829.0 | -679.2 | |
| 0.00 | 3.18 | 0.00 | 1.64 | -6.41 | 242.36 | -12.74 | 127.58 | 0.2779 | 498.0 | 597.7 | |
| 1.18 | 2.54 | 0.61 | 1.31 | -5.55 | 242.35 | -12.75 | 125.00 | 0.2694 | -871.0 | -668.5 | |
| 0.00 | 2.72 | 0.00 | 1.42 | -8.84 | 242.25 | -12.85 | 133.72 | 0.3055 | 346.0 | 222.7 | |
| 6.08 | -1.00 | 3.16 | -1.00 | -8.03 | 242.02 | -13.08 | 131.24 | 0.2992 | 888.2 | 999999 | |
| 0.00 | 5.54 | 0.00 | 2.85 | -5.92 | 242.09 | -13.01 | 125.57 | 0.2766 | 445.0 | 482.1 | |
| 3.45 | 12.08 | 1.80 | 6.31 | -9.44 | 241.88 | -13.22 | 134.31 | 0.3168 | 1088.7 | 728.1 | |
| 0.00 | 1.18 | 0.00 | 0.61 | -8.59 | 241.91 | -13.19 | 132.39 | 0.3068 | 625.0 | 464.6 | |
| 12.08 | -1.00 | 6.26 | -1.00 | -7.60 | 241.88 | -13.22 | 129.81 | 0.2964 | 1271.4 | 999999 | |
| 3.00 | -1.00 | 1.55 | -1.00 | -7.07 | 241.58 | -13.52 | 127.79 | 0.2949 | 1319.8 | 999999 | |
| 1.27 | -1.00 | 0.66 | -1.00 | -6.89 | 241.56 | -13.55 | 127.23 | 0.2933 | 1253.1 | 999999 | |
| 0.00 | 0.91 | 0.00 | 0.47 | -8.85 | 241.42 | -13.68 | 131.98 | 0.3156 | 484.0 | 439.5 | |
| 35.23 | -1.00 | 18.29 | -1.00 | -7.42 | 241.44 | -13.66 | 128.42 | 0.3002 | 1399.6 | 999999 | |
| 4.81 | -1.00 | 2.50 | -1.00 | -7.79 | 241.43 | -13.67 | 129.37 | 0.3042 | 1167.6 | 999999 | |
| 0.00 | 1.45 | 0.00 | 0.76 | -9.63 | 241.17 | -13.93 | 133.27 | 0.3274 | 563.0 | 312.6 | |
| 29.87 | -1.00 | 15.56 | -1.00 | -7.92 | 241.05 | -14.05 | 128.92 | 0.3105 | 1158.6 | 999999 | |
| 3.63 | -1.00 | 1.89 | -1.00 | -7.55 | 240.96 | -14.14 | 127.81 | 0.3078 | 1024.2 | 999999 | |
| 1.27 | -1.00 | 0.66 | -1.00 | -7.21 | 240.91 | -14.19 | 126.81 | 0.3051 | 1076.6 | 999999 | |
| 0.00 | 5.27 | 0.00 | 2.73 | -5.97 | 240.95 | -14.15 | 123.47 | 0.2927 | 893.0 | 755.1 | |
| 1.27 | -1.00 | 0.66 | -1.00 | -7.18 | 240.76 | -14.35 | 126.43 | 0.3069 | 850.4 | 999999 | |
| 6.17 | -1.00 | 3.22 | -1.00 | -7.96 | 240.70 | -14.40 | 128.33 | 0.3154 | 1050.8 | 999999 | |
| 2.45 | -1.00 | 1.28 | -1.00 | -8.27 | 240.59 | -14.51 | 128.90 | 0.3200 | 724.6 | 999999 | |
| 7.99 | -1.00 | 4.17 | -1.00 | -7.55 | 240.62 | -14.49 | 127.15 | 0.3124 | 950.5 | 999999 | |
| 6.27 | -1.00 | 3.27 | -1.00 | -7.22 | 240.15 | -14.95 | 125.41 | 0.3154 | 898.5 | 999999 | |
| 1.45 | -1.00 | 0.76 | -1.00 | -7.22 | 239.99 | -15.11 | 125.14 | 0.3176 | 840.4 | 999999 | |
| 0.91 | -1.00 | 0.47 | -1.00 | -6.76 | 239.79 | -15.32 | 123.56 | 0.3161 | 661.7 | 999999 | |
| 0.00 | 1.91 | 0.00 | 0.99 | -4.41 | 239.85 | -15.25 | 116.99 | 0.2956 | 1067.0 | 890.3 | |
| 0.00 | 1.45 | 0.00 | 0.76 | -8.62 | 239.65 | -15.45 | 128.01 | 0.3358 | -674.0 | -509.9 | |
| 0.00 | 1.27 | 0.00 | 0.66 | -4.29 | 239.70 | -15.41 | 116.39 | 0.2970 | 887.0 | 661.7 | |
| 0.00 | 1.54 | 0.00 | 0.80 | -3.99 | 239.67 | -15.43 | 115.42 | 0.2952 | 755.0 | 648.1 | |
| 0.36 | 4.81 | 0.19 | 2.51 | -6.02 | 239.59 | -15.51 | 121.22 | 0.3124 | 880.2 | 590.5 | |
| 1.91 | -1.00 | 1.00 | -1.00 | -6.86 | 239.50 | -15.61 | 123.32 | 0.3210 | 642.0 | 999999 | |
| 0.00 | 0.91 | 0.00 | 0.47 | -4.57 | 239.56 | -15.54 | 117.03 | 0.3011 | 750.0 | 650.1 | |
| 0.00 | 0.82 | 0.00 | 0.43 | -6.40 | 239.29 | -15.81 | 121.75 | 0.3199 | 579.0 | 452.0 | |
| 0.00 | 1.54 | 0.00 | 0.81 | -7.39 | 238.93 | -16.17 | 123.76 | 0.3336 | -911.0 | -773.2 | |
| 0.00 | 2.45 | 0.00 | 1.28 | -5.91 | 238.86 | -16.24 | 119.76 | 0.3219 | 551.0 | 366.4 | |
| 0.00 | 1.09 | 0.00 | 0.57 | -6.59 | 238.77 | -16.33 | 121.44 | 0.3288 | 582.0 | 365.2 | |
| 0.00 | 0.91 | 0.00 | 0.48 | -8.36 | 238.60 | -16.50 | 125.59 | 0.3470 | 685.0 | 522.1 | |
| 0.00 | 1.18 | 0.00 | 0.62 | -6.34 | 238.65 | -16.45 | 120.61 | 0.3284 | 611.0 | 371.0 | |
| 0.00 | 2.91 | 0.00 | 1.53 | -7.43 | 238.55 | -16.55 | 123.24 | 0.3393 | 34.0 | 123.5 | |
| 0.00 | 2.00 | 0.00 | 1.06 | -8.37 | 238.22 | -16.88 | 124.99 | 0.3522 | 549.0 | 360.7 | |
| 0.45 | 1.54 | 0.24 | 0.81 | -7.19 | 238.24 | -16.87 | 122.15 | 0.3414 | -914.4 | -659.0 | |
| 0.45 | 1.91 | 0.24 | 1.00 | -6.10 | 238.18 | -16.92 | 119.28 | 0.3332 | -957.4 | -658.7 | |
| 0.00 | 1.63 | 0.00 | 0.86 | -6.35 | 237.95 | -17.16 | 119.60 | 0.3386 | -258.0 | -316.7 | |
| 0.00 | 1.73 | 0.00 | 0.92 | -8.40 | 237.76 | -17.34 | 124.37 | 0.3587 | -252.0 | -241.2 | |
| 0.00 | 9.17 | 0.00 | 4.82 | -5.80 | 237.77 | -17.33 | 117.91 | 0.3368 | -839.0 | -908.0 | |
| 1.91 | 6.99 | 1.02 | 3.73 | -9.34 | 237.59 | -17.51 | 126.23 | 0.3697 | 912.0 | 692.1 | |
| 0.00 | 2.09 | 0.00 | 1.10 | -6.24 | 237.66 | -17.44 | 118.89 | 0.3418 | -859.0 | -633.5 | |
| 2.36 | 4.18 | 1.26 | 2.24 | -9.95 | 237.10 | -18.00 | 126.79 | 0.3818 | -1085.8 | -822.5 | |
| 1.09 | 689.19 | 0.58 | 367.43 | -6.89 | 237.22 | -17.88 | 119.93 | 0.3533 | -917.4 | -446.4 | |
| 6.54 | -53.00 | 3.45 | -53.00 | -5.66 | 237.17 | -17.93 | 116.72 | 0.3446 | 1124.0 | 999999 | |
| 3.27 | -53.00 | 1.73 | -53.00 | -6.84 | 236.96 | -18.14 | 119.44 | 0.3565 | -1214.1 | 999999 | |
| 1.63 | -53.00 | 0.87 | -53.00 | -7.61 | 236.83 | -18.27 | 121.14 | 0.3646 | -1050.7 | 999999 | |
| 3.63 | -53.00 | 1.93 | -53.00 | -6.78 | 236.71 | -18.40 | 118.96 | 0.3597 | -1299.9 | 999999 | |
| 5.81 | -53.00 | 3.09 | -53.00 | -6.75 | 236.45 | -18.65 | 118.56 | 0.3632 | -1298.0 | 999999 | |
| 2.18 | -53.00 | 1.16 | -53.00 | -6.14 | 236.21 | -18.89 | 116.75 | 0.3620 | 478.5 | 999999 | |
| 1.27 | -53.00 | 0.68 | -53.00 | -6.79 | 236.06 | -19.05 | 118.15 | 0.3691 | -1374.6 | 999999 | |
| 1.27 | -53.00 | 0.68 | -53.00 | -6.05 | 236.02 | -19.08 | 116.30 | 0.3641 | 519.9 | 999999 | |
| 82.72 | -53.00 | 44.23 | -53.00 | -7.38 | 235.77 | -19.33 | 119.20 | 0.3777 | -1414.8 | 999999 | |
| 0.00 | 1.18 | 0.00 | 0.63 | -5.23 | 235.43 | -19.67 | 113.58 | 0.3672 | -888.0 | -755.8 | |
| 0.00 | 2.63 | 0.00 | 1.40 | -5.54 | 235.39 | -19.71 | 114.30 | 0.3699 | -916.0 | -773.1 | |
| 2.36 | -53.00 | 1.27 | -53.00 | -7.24 | 235.29 | -19.81 | 118.27 | 0.3834 | -922.6 | 999999 | |
| 0.00 | 1.09 | 0.00 | 0.59 | -9.98 | 235.13 | -19.97 | 124.09 | 0.4079 | -723.0 | -504.6 | |
| 0.00 | 1.82 | 0.00 | 0.99 | -10.02 | 234.90 | -20.20 | 123.86 | 0.4112 | -705.0 | -622.9 | |
| 0.00 | 6.36 | 0.00 | 3.39 | -5.30 | 235.01 | -20.09 | 113.30 | 0.3740 | -1026.0 | -843.8 | |
| 2.45 | -53.00 | 1.32 | -53.00 | -6.94 | 234.84 | -20.26 | 117.05 | 0.3876 | -1066.3 | 999999 | |
| 3.36 | -53.00 | 1.80 | -53.00 | -5.89 | 234.86 | -20.25 | 114.58 | 0.3801 | -1156.0 | 999999 | |
| 0.00 | 1.27 | 0.00 | 0.70 | -11.16 | 234.52 | -20.58 | 125.65 | 0.4262 | -659.0 | -564.1 | |
| 3.18 | -53.00 | 1.70 | -53.00 | -6.26 | 234.78 | -20.33 | 115.38 | 0.3838 | -1186.3 | 999999 | |
| 0.00 | 1.36 | 0.00 | 0.73 | -7.19 | 234.73 | -20.37 | 117.50 | 0.3910 | -735.0 | -501.5 | |
| 7.26 | -53.00 | 3.90 | -53.00 | -6.54 | 234.66 | -20.44 | 115.92 | 0.3873 | -1126.3 | 999999 | |
| 1.36 | -53.00 | 0.73 | -53.00 | -6.85 | 234.62 | -20.48 | 116.59 | 0.3902 | -898.7 | 999999 | |
| 0.00 | 0.82 | 0.00 | 0.44 | -9.53 | 234.37 | -20.73 | 122.18 | 0.4142 | -747.0 | -661.3 | |
| 3.54 | -53.00 | 1.90 | -53.00 | -6.63 | 234.50 | -20.60 | 115.96 | 0.3904 | -825.9 | 999999 | |
| 0.00 | 2.00 | 0.00 | 1.08 | -7.35 | 234.40 | -20.70 | 117.49 | 0.3969 | -954.0 | -706.0 | |
| 0.00 | 1.27 | 0.00 | 0.69 | -9.31 | 234.28 | -20.82 | 121.62 | 0.4136 | -909.0 | -730.4 | |
| 0.00 | 1.27 | 0.00 | 0.68 | -5.46 | 234.45 | -20.65 | 113.13 | 0.3834 | -804.0 | -705.7 | |
| 0.00 | 1.73 | 0.00 | 0.93 | -7.04 | 234.35 | -20.75 | 116.73 | 0.3954 | -796.0 | -626.1 | |
| 0.00 | 1.00 | 0.00 | 0.54 | -9.13 | 234.16 | -20.94 | 121.09 | 0.4137 | -883.0 | -672.9 | |
| 0.00 | 1.00 | 0.00 | 0.54 | -7.23 | 234.21 | -20.90 | 117.00 | 0.3988 | -734.0 | -572.8 | |
| 0.00 | 3.09 | 0.00 | 1.68 | -8.88 | 234.08 | -21.02 | 120.47 | 0.4129 | -1080.0 | -932.4 | |
| 0.00 | 1.45 | 0.00 | 0.78 | -6.83 | 234.19 | -20.91 | 116.07 | 0.3962 | -708.0 | -525.9 | |
| 0.00 | 1.09 | 0.00 | 0.59 | -9.60 | 233.93 | -21.17 | 121.80 | 0.4206 | -632.0 | -486.8 | |
| 0.00 | 0.36 | 0.00 | 0.20 | -8.23 | 233.95 | -21.15 | 118.93 | 0.4097 | -745.0 | -591.0 | |
| 0.00 | 1.82 | 0.00 | 0.99 | -9.04 | 233.87 | -21.23 | 120.56 | 0.4170 | -644.0 | -558.5 | |
| 0.00 | 1.36 | 0.00 | 0.74 | -8.85 | 233.85 | -21.25 | 120.14 | 0.4159 | -786.0 | -559.0 | |
| 0.00 | 2.63 | 0.00 | 1.43 | -8.11 | 233.73 | -21.37 | 118.41 | 0.4119 | -865.0 | -699.8 | |
| 0.00 | 1.27 | 0.00 | 0.69 | -6.71 | 233.80 | -21.30 | 115.39 | 0.4010 | -807.0 | -654.3 | |
| 0.00 | 1.18 | 0.00 | 0.64 | -8.20 | 233.56 | -21.54 | 118.43 | 0.4150 | -881.0 | -746.8 | |
| 0.00 | 1.73 | 0.00 | 0.94 | -8.86 | 233.39 | -21.72 | 119.63 | 0.4223 | -728.0 | -621.7 | |
| 0.00 | 1.27 | 0.00 | 0.69 | -7.09 | 233.49 | -21.61 | 115.92 | 0.4081 | -700.0 | -478.5 | |
| 0.00 | 1.36 | 0.00 | 0.74 | -8.49 | 233.34 | -21.76 | 118.80 | 0.4201 | -889.0 | -822.5 | |
| 0.00 | 2.27 | 0.00 | 1.24 | -8.43 | 233.08 | -22.02 | 118.39 | 0.4234 | -616.0 | -581.7 | |
| 0.00 | 1.00 | 0.00 | 0.55 | -8.93 | 232.98 | -22.12 | 119.33 | 0.4284 | -624.0 | -424.7 | |
| 0.00 | 1.09 | 0.00 | 0.59 | -7.00 | 233.06 | -22.04 | 115.30 | 0.4137 | -537.0 | -465.1 | |
| 0.00 | 2.00 | 0.00 | 1.10 | -9.61 | 232.13 | -22.97 | 119.78 | 0.4451 | -742.0 | -620.5 | |
| 0.00 | 1.54 | 0.00 | 0.85 | -7.40 | 232.14 | -22.96 | 115.24 | 0.4295 | -641.0 | -478.5 | |
| 0.00 | 4.72 | 0.00 | 2.61 | -9.46 | 231.91 | -23.19 | 119.24 | 0.4471 | -504.0 | -517.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
