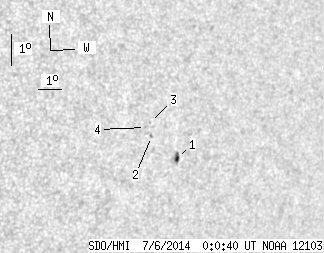

SDO HMI 2014-07-06 00:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.54 | 7.63 | 1.85 | 5.47 | -12.33 | 298.37 | 43.82 | 249.36 | 0.7251 | -89.5 | -81.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-06 00:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.54 | 4.36 | 1.85 | 3.16 | -12.73 | 298.98 | 44.43 | 249.07 | 0.7334 | 624.4 | 473.1 | |
| 0.00 | 1.09 | 0.00 | 0.77 | -12.01 | 297.70 | 43.15 | 249.52 | 0.7164 | -472.0 | -352.4 | |
| 0.00 | 0.82 | 0.00 | 0.58 | -11.56 | 297.57 | 43.02 | 250.06 | 0.7133 | -438.0 | -320.1 | |
| 0.00 | 1.36 | 0.00 | 0.96 | -11.71 | 297.39 | 42.84 | 249.79 | 0.7117 | -679.0 | -484.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
