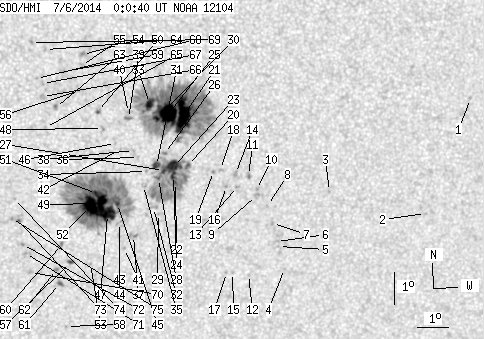

SDO HMI 2014-07-06 00:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 158.73 | 857.45 | 83.98 | 453.64 | -11.80 | 268.36 | 13.81 | 221.94 | 0.3525 | 296.2 | 96.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-06 00:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.36 | 0.00 | 0.76 | -10.07 | 278.98 | 24.43 | 240.81 | 0.4684 | 753.0 | 582.9 | |
| 0.00 | 0.91 | 0.00 | 0.51 | -13.67 | 277.78 | 23.23 | 233.01 | 0.4818 | 606.0 | 536.0 | |
| 0.00 | 0.91 | 0.00 | 0.50 | -12.89 | 274.47 | 19.92 | 230.18 | 0.4342 | 781.0 | 618.4 | |
| 0.00 | 0.54 | 0.00 | 0.30 | -15.32 | 273.18 | 18.63 | 224.11 | 0.4445 | 510.0 | 366.0 | |
| 0.00 | 0.82 | 0.00 | 0.45 | -14.61 | 272.92 | 18.37 | 224.89 | 0.4339 | 598.0 | 525.7 | |
| 0.00 | 2.09 | 0.00 | 1.15 | -14.45 | 272.84 | 18.29 | 225.04 | 0.4313 | 808.0 | 604.0 | |
| 0.00 | 1.54 | 0.00 | 0.84 | -13.87 | 272.66 | 18.11 | 225.76 | 0.4230 | 798.0 | 689.8 | |
| 0.00 | 0.64 | 0.00 | 0.35 | -13.29 | 272.45 | 17.90 | 226.46 | 0.4144 | 666.0 | 508.4 | |
| 0.00 | 3.18 | 0.00 | 1.72 | -12.97 | 272.06 | 17.52 | 226.43 | 0.4065 | 911.0 | 723.9 | |
| 0.00 | 0.82 | 0.00 | 0.44 | -12.78 | 272.05 | 17.50 | 226.76 | 0.4043 | 902.0 | 714.6 | |
| 0.00 | 2.91 | 0.00 | 1.57 | -12.33 | 271.76 | 17.21 | 227.13 | 0.3961 | 954.0 | 731.4 | |
| 0.00 | 0.82 | 0.00 | 0.45 | -15.49 | 272.00 | 17.45 | 222.00 | 0.4337 | 250.0 | 362.1 | |
| 0.00 | 1.82 | 0.00 | 0.98 | -12.67 | 271.42 | 16.87 | 225.93 | 0.3958 | 726.0 | 613.2 | |
| 0.00 | 2.82 | 0.00 | 1.51 | -12.26 | 271.33 | 16.78 | 226.55 | 0.3903 | 901.0 | 737.3 | |
| 0.00 | 1.27 | 0.00 | 0.70 | -15.42 | 271.46 | 16.92 | 221.24 | 0.4272 | 826.0 | 690.4 | |
| 0.00 | 1.00 | 0.00 | 0.54 | -12.66 | 271.06 | 16.51 | 225.33 | 0.3916 | 844.0 | 715.8 | |
| 0.00 | 1.00 | 0.00 | 0.55 | -15.41 | 271.27 | 16.72 | 220.92 | 0.4251 | 799.0 | 649.0 | |
| 0.00 | 1.82 | 0.00 | 0.97 | -12.12 | 270.83 | 16.28 | 225.96 | 0.3830 | 810.0 | 628.4 | |
| 0.00 | 1.27 | 0.00 | 0.68 | -12.18 | 270.61 | 16.06 | 225.45 | 0.3811 | 950.0 | 802.1 | |
| 1.18 | 132.40 | 0.63 | 70.50 | -11.98 | 269.76 | 15.21 | 224.30 | 0.3690 | 821.9 | 258.0 | |
| 35.14 | 346.71 | 18.57 | 182.80 | -10.40 | 269.54 | 15.00 | 227.12 | 0.3488 | 1160.2 | 466.1 | |
| 1.73 | -20.00 | 0.92 | -20.00 | -12.51 | 269.40 | 14.85 | 222.61 | 0.3711 | 469.4 | 999999 | |
| 12.90 | -20.00 | 6.85 | -20.00 | -12.00 | 269.31 | 14.76 | 223.40 | 0.3642 | 1047.8 | 999999 | |
| 4.09 | -20.00 | 2.18 | -20.00 | -12.28 | 269.32 | 14.77 | 222.88 | 0.3677 | 738.7 | 999999 | |
| 26.24 | -21.00 | 13.83 | -21.00 | -10.33 | 269.06 | 14.51 | 226.34 | 0.3422 | 1428.2 | 999999 | |
| 0.00 | 2.09 | 0.00 | 1.11 | -11.58 | 268.99 | 14.44 | 223.61 | 0.3558 | 1128.0 | 927.0 | |
| 2.91 | -20.00 | 1.54 | -20.00 | -12.12 | 268.99 | 14.44 | 222.55 | 0.3621 | 889.3 | 999999 | |
| 0.54 | -20.00 | 0.29 | -20.00 | -12.37 | 268.84 | 14.29 | 221.79 | 0.3635 | 756.7 | 999999 | |
| 0.00 | 1.09 | 0.00 | 0.58 | -13.48 | 268.91 | 14.36 | 219.89 | 0.3776 | -698.0 | -541.5 | |
| 2.63 | -21.00 | 1.39 | -21.00 | -10.48 | 268.68 | 14.13 | 225.26 | 0.3395 | 1200.4 | 999999 | |
| 3.63 | -20.00 | 1.93 | -20.00 | -11.96 | 268.76 | 14.21 | 222.40 | 0.3576 | 1030.6 | 999999 | |
| 0.00 | 3.72 | 0.00 | 1.99 | -13.29 | 268.73 | 14.18 | 219.90 | 0.3734 | -17.0 | -68.5 | |
| 7.99 | -21.00 | 4.19 | -21.00 | -10.00 | 268.44 | 13.89 | 225.80 | 0.3312 | 1284.1 | 999999 | |
| 0.00 | 0.82 | 0.00 | 0.43 | -12.14 | 268.44 | 13.90 | 221.42 | 0.3564 | 667.0 | 560.9 | |
| 0.00 | 3.00 | 0.00 | 1.59 | -12.59 | 268.37 | 13.82 | 220.44 | 0.3610 | 397.0 | 340.9 | |
| 0.00 | 1.36 | 0.00 | 0.72 | -11.70 | 268.17 | 13.62 | 221.71 | 0.3480 | 691.0 | 483.9 | |
| 0.00 | 3.81 | 0.00 | 2.04 | -14.17 | 268.14 | 13.59 | 217.20 | 0.3784 | -735.0 | -661.7 | |
| 0.00 | 1.09 | 0.00 | 0.57 | -11.47 | 267.99 | 13.45 | 221.79 | 0.3434 | 915.0 | 704.8 | |
| 0.00 | 3.09 | 0.00 | 1.62 | -10.46 | 267.79 | 13.24 | 223.43 | 0.3290 | 961.0 | 731.2 | |
| 0.00 | 1.27 | 0.00 | 0.67 | -10.28 | 267.78 | 13.23 | 223.82 | 0.3267 | 954.0 | 721.8 | |
| 0.00 | 0.91 | 0.00 | 0.49 | -14.58 | 267.87 | 13.32 | 215.99 | 0.3811 | -759.0 | -646.8 | |
| 0.00 | 0.91 | 0.00 | 0.48 | -11.44 | 267.58 | 13.03 | 220.98 | 0.3384 | 650.0 | 541.0 | |
| 0.00 | 2.54 | 0.00 | 1.35 | -13.75 | 267.66 | 13.11 | 216.93 | 0.3684 | -629.0 | -552.1 | |
| 0.00 | 1.91 | 0.00 | 1.02 | -14.17 | 267.69 | 13.14 | 216.29 | 0.3740 | -700.0 | -571.4 | |
| 1.91 | 273.79 | 1.01 | 144.82 | -13.14 | 267.57 | 13.02 | 217.77 | 0.3597 | -1134.0 | -519.9 | |
| 0.00 | 1.00 | 0.00 | 0.52 | -11.24 | 267.41 | 12.86 | 220.99 | 0.3342 | 807.0 | 640.7 | |
| 14.35 | -45.00 | 7.62 | -45.00 | -13.49 | 267.26 | 12.71 | 216.53 | 0.3611 | -1040.9 | 999999 | |
| 0.00 | 1.73 | 0.00 | 0.90 | -10.77 | 266.98 | 12.43 | 221.00 | 0.3236 | 1006.0 | 814.6 | |
| 15.35 | -45.00 | 8.13 | -45.00 | -13.14 | 267.05 | 12.50 | 216.68 | 0.3545 | -1420.7 | 999999 | |
| 0.36 | 2.36 | 0.19 | 1.23 | -10.23 | 266.80 | 12.25 | 221.72 | 0.3151 | 877.2 | 711.8 | |
| 2.54 | -45.00 | 1.34 | -45.00 | -12.82 | 266.88 | 12.33 | 216.85 | 0.3486 | -1441.4 | 999999 | |
| 22.88 | -45.00 | 12.11 | -45.00 | -13.23 | 266.70 | 12.16 | 215.75 | 0.3523 | -1361.5 | 999999 | |
| 0.00 | 1.09 | 0.00 | 0.58 | -15.05 | 266.80 | 12.25 | 213.05 | 0.3774 | -595.0 | -505.4 | |
| 0.00 | 2.72 | 0.00 | 1.41 | -8.44 | 266.26 | 11.71 | 224.57 | 0.2874 | 1176.0 | 919.2 | |
| 0.00 | 2.82 | 0.00 | 1.46 | -8.78 | 266.24 | 11.69 | 223.68 | 0.2912 | 906.0 | 771.2 | |
| 0.00 | 0.91 | 0.00 | 0.47 | -9.56 | 266.20 | 11.65 | 221.78 | 0.3003 | 747.0 | 565.0 | |
| 1.09 | 2.27 | 0.58 | 1.21 | -15.01 | 266.15 | 11.61 | 211.71 | 0.3712 | -786.2 | -517.3 | |
| 0.00 | 1.18 | 0.00 | 0.64 | -17.08 | 266.14 | 11.60 | 208.87 | 0.3997 | -665.0 | -495.5 | |
| 0.00 | 0.91 | 0.00 | 0.47 | -8.96 | 265.68 | 11.13 | 221.86 | 0.2870 | 887.0 | 825.6 | |
| 0.00 | 3.00 | 0.00 | 1.59 | -14.43 | 265.83 | 11.29 | 211.87 | 0.3605 | -915.0 | -644.6 | |
| 0.91 | 2.63 | 0.49 | 1.41 | -15.68 | 265.84 | 11.29 | 210.06 | 0.3778 | -1034.1 | -791.1 | |
| 0.00 | 2.18 | 0.00 | 1.16 | -15.23 | 265.71 | 11.17 | 210.42 | 0.3706 | -907.0 | -708.2 | |
| 0.00 | 2.45 | 0.00 | 1.27 | -10.09 | 265.46 | 10.91 | 218.78 | 0.2989 | 869.0 | 747.6 | |
| 0.00 | 1.73 | 0.00 | 0.89 | -8.27 | 265.09 | 10.55 | 222.00 | 0.2719 | 806.0 | 606.7 | |
| 0.00 | 1.18 | 0.00 | 0.61 | -10.71 | 265.17 | 10.62 | 216.74 | 0.3041 | 753.0 | 574.8 | |
| 0.00 | 3.36 | 0.00 | 1.74 | -9.74 | 265.04 | 10.49 | 218.44 | 0.2900 | 823.0 | 724.5 | |
| 0.00 | 2.27 | 0.00 | 1.17 | -9.33 | 265.03 | 10.48 | 219.31 | 0.2846 | 689.0 | 526.0 | |
| 0.00 | 1.00 | 0.00 | 0.52 | -9.17 | 264.84 | 10.29 | 219.15 | 0.2805 | 722.0 | 590.0 | |
| 0.00 | 1.91 | 0.00 | 0.98 | -8.05 | 264.65 | 10.10 | 221.34 | 0.2641 | 961.0 | 763.0 | |
| 0.00 | 2.45 | 0.00 | 1.30 | -15.31 | 264.88 | 10.33 | 208.42 | 0.3651 | -728.0 | -569.4 | |
| 0.00 | 1.54 | 0.00 | 0.82 | -14.70 | 264.69 | 10.15 | 208.82 | 0.3549 | -1003.0 | -745.1 | |
| 0.00 | 1.54 | 0.00 | 0.82 | -14.41 | 264.58 | 10.04 | 208.97 | 0.3500 | -923.0 | -696.4 | |
| 0.36 | 2.45 | 0.19 | 1.29 | -13.64 | 264.42 | 9.88 | 209.71 | 0.3377 | -891.2 | -741.5 | |
| 0.00 | 1.09 | 0.00 | 0.57 | -12.94 | 264.27 | 9.72 | 210.41 | 0.3265 | -790.0 | -670.5 | |
| 0.00 | 1.63 | 0.00 | 0.86 | -13.58 | 264.20 | 9.65 | 209.25 | 0.3350 | -853.0 | -732.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
