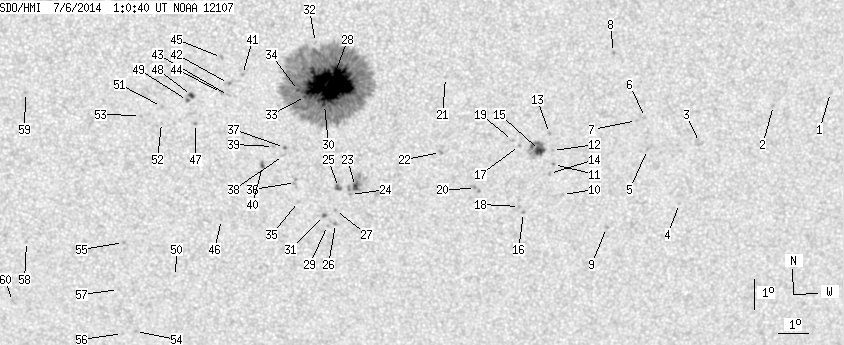

SDO HMI 2014-07-06 01:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 117.70 | 681.78 | 63.23 | 366.92 | -19.34 | 256.12 | 2.12 | 185.04 | 0.3916 | 631.6 | 336.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-06 01:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.27 | 0.00 | 0.72 | -19.31 | 272.23 | 18.24 | 217.62 | 0.4858 | 554.0 | 513.5 | |
| 0.00 | 1.18 | 0.00 | 0.66 | -19.71 | 270.35 | 16.35 | 214.19 | 0.4735 | 683.0 | 568.8 | |
| 0.00 | 4.27 | 0.00 | 2.39 | -20.89 | 267.97 | 13.97 | 208.84 | 0.4697 | 390.0 | 547.9 | |
| 0.00 | 0.82 | 0.00 | 0.47 | -22.94 | 267.50 | 13.50 | 205.92 | 0.4937 | 672.0 | 586.4 | |
| 0.00 | 1.27 | 0.00 | 0.71 | -21.10 | 266.25 | 12.25 | 205.58 | 0.4603 | 716.0 | 567.2 | |
| 0.00 | 1.00 | 0.00 | 0.55 | -20.03 | 266.09 | 12.10 | 206.41 | 0.4444 | 807.0 | 641.1 | |
| 0.00 | 0.91 | 0.00 | 0.50 | -20.13 | 265.80 | 11.81 | 205.77 | 0.4437 | 673.0 | 641.8 | |
| 0.00 | 1.18 | 0.00 | 0.64 | -17.87 | 264.89 | 10.90 | 206.44 | 0.4057 | -894.0 | -762.3 | |
| 0.00 | 1.36 | 0.00 | 0.77 | -23.73 | 265.09 | 11.09 | 201.16 | 0.4898 | 775.0 | 664.6 | |
| 0.00 | 0.91 | 0.00 | 0.51 | -22.58 | 263.52 | 9.52 | 199.25 | 0.4651 | 711.0 | 607.4 | |
| 0.00 | 1.27 | 0.00 | 0.70 | -21.57 | 263.15 | 9.15 | 199.34 | 0.4484 | 696.0 | 523.4 | |
| 0.00 | 1.00 | 0.00 | 0.55 | -21.10 | 263.09 | 9.09 | 199.60 | 0.4412 | 760.0 | 577.8 | |
| 0.00 | 1.36 | 0.00 | 0.75 | -20.53 | 262.95 | 8.96 | 199.81 | 0.4321 | 825.0 | 667.7 | |
| 0.00 | 1.36 | 0.00 | 0.76 | -21.87 | 263.04 | 9.04 | 198.89 | 0.4522 | 642.0 | 486.1 | |
| 5.72 | 21.80 | 3.15 | 12.00 | -21.09 | 262.66 | 8.66 | 198.75 | 0.4389 | 916.2 | 693.7 | |
| 0.00 | 1.18 | 0.00 | 0.66 | -23.18 | 262.25 | 8.25 | 196.45 | 0.4678 | -874.0 | -763.5 | |
| 0.00 | 1.09 | 0.00 | 0.60 | -20.92 | 261.99 | 7.99 | 197.52 | 0.4330 | 698.0 | 530.8 | |
| 0.00 | 0.91 | 0.00 | 0.51 | -22.98 | 262.10 | 8.11 | 196.31 | 0.4642 | -906.0 | -723.6 | |
| 0.00 | 0.91 | 0.00 | 0.50 | -20.75 | 261.75 | 7.75 | 197.16 | 0.4293 | 793.0 | 660.5 | |
| 0.00 | 3.27 | 0.00 | 1.81 | -22.35 | 260.60 | 6.61 | 193.78 | 0.4488 | -861.0 | -789.5 | |
| 0.00 | 1.09 | 0.00 | 0.59 | -18.64 | 259.48 | 5.48 | 193.57 | 0.3874 | -861.0 | -573.0 | |
| 0.00 | 1.91 | 0.00 | 1.04 | -21.13 | 259.40 | 5.40 | 191.95 | 0.4258 | 1024.0 | 803.5 | |
| 3.27 | 16.98 | 1.80 | 9.34 | -22.26 | 256.63 | 2.64 | 185.62 | 0.4368 | -1096.8 | -639.1 | |
| 0.00 | 1.00 | 0.00 | 0.55 | -22.53 | 256.47 | 2.48 | 185.22 | 0.4408 | -738.0 | -642.5 | |
| 1.73 | 3.91 | 0.95 | 2.15 | -22.29 | 256.07 | 2.08 | 184.42 | 0.4365 | -909.5 | -750.1 | |
| 0.00 | 1.73 | 0.00 | 0.96 | -23.51 | 255.99 | 1.99 | 184.03 | 0.4556 | -841.0 | -667.2 | |
| 0.00 | 1.45 | 0.00 | 0.80 | -23.07 | 255.99 | 1.99 | 184.10 | 0.4487 | -847.0 | -615.9 | |
| 101.08 | 560.72 | 54.13 | 300.28 | -18.85 | 255.77 | 1.78 | 184.43 | 0.3813 | 1474.1 | 433.2 | |
| 0.00 | 1.09 | 0.00 | 0.61 | -23.58 | 255.73 | 1.73 | 183.49 | 0.4564 | -701.0 | -588.7 | |
| 0.27 | -28.00 | 0.15 | -28.00 | -19.51 | 255.59 | 1.59 | 183.84 | 0.3918 | 865.0 | 999999 | |
| 0.73 | 1.73 | 0.40 | 0.96 | -23.24 | 255.62 | 1.63 | 183.33 | 0.4509 | -1008.8 | -855.3 | |
| 0.00 | 1.18 | 0.00 | 0.63 | -17.47 | 255.28 | 1.29 | 183.44 | 0.3584 | 209.0 | 214.4 | |
| 0.27 | -28.00 | 0.15 | -28.00 | -19.24 | 254.97 | 0.97 | 182.39 | 0.3869 | 967.0 | 999999 | |
| 1.18 | -28.00 | 0.63 | -28.00 | -19.05 | 254.74 | 0.75 | 181.85 | 0.3836 | 889.2 | 999999 | |
| 0.00 | 1.45 | 0.00 | 0.80 | -22.76 | 254.76 | 0.76 | 181.59 | 0.4428 | -692.0 | -591.8 | |
| 0.00 | 3.45 | 0.00 | 1.89 | -22.12 | 254.66 | 0.66 | 181.42 | 0.4327 | -212.0 | -114.1 | |
| 0.36 | 1.27 | 0.20 | 0.69 | -20.94 | 254.29 | 0.30 | 180.67 | 0.4138 | 852.5 | 716.9 | |
| 0.00 | 1.91 | 0.00 | 1.04 | -21.21 | 254.26 | 0.26 | 180.59 | 0.4181 | 589.0 | 443.0 | |
| 0.00 | 1.18 | 0.00 | 0.64 | -20.90 | 253.93 | -0.06 | 179.86 | 0.4133 | 687.0 | 554.2 | |
| 0.82 | 3.09 | 0.45 | 1.69 | -21.54 | 253.57 | -0.42 | 179.07 | 0.4235 | -951.2 | -777.3 | |
| 0.00 | 1.54 | 0.00 | 0.82 | -18.52 | 252.94 | -1.05 | 177.32 | 0.3752 | -780.0 | -542.2 | |
| 0.00 | 2.18 | 0.00 | 1.17 | -18.81 | 252.49 | -1.51 | 176.23 | 0.3804 | -894.0 | -695.8 | |
| 0.00 | 1.45 | 0.00 | 0.78 | -19.21 | 252.49 | -1.51 | 176.29 | 0.3868 | 701.0 | 587.7 | |
| 0.00 | 2.18 | 0.00 | 1.17 | -19.11 | 252.26 | -1.74 | 175.72 | 0.3855 | 745.0 | 566.2 | |
| 0.00 | 1.63 | 0.00 | 0.87 | -17.96 | 252.27 | -1.72 | 175.51 | 0.3668 | -904.0 | -667.6 | |
| 0.00 | 0.82 | 0.00 | 0.45 | -23.37 | 252.20 | -1.79 | 176.35 | 0.4532 | -809.0 | -610.0 | |
| 0.00 | 1.09 | 0.00 | 0.59 | -20.14 | 251.40 | -2.59 | 173.93 | 0.4032 | -871.0 | -757.5 | |
| 1.73 | 4.81 | 0.93 | 2.59 | -19.21 | 251.29 | -2.71 | 173.38 | 0.3886 | -990.8 | -749.2 | |
| 0.54 | -48.00 | 0.29 | -48.00 | -19.38 | 251.16 | -2.84 | 173.12 | 0.3915 | -855.3 | 999999 | |
| 0.00 | 0.73 | 0.00 | 0.41 | -25.34 | 250.62 | -3.38 | 173.68 | 0.4856 | -623.0 | -443.6 | |
| 0.00 | 1.45 | 0.00 | 0.78 | -19.58 | 250.31 | -3.69 | 171.18 | 0.3965 | -810.0 | -637.2 | |
| 0.00 | 1.09 | 0.00 | 0.59 | -20.11 | 250.30 | -3.70 | 171.36 | 0.4050 | -462.0 | -403.6 | |
| 0.00 | 1.09 | 0.00 | 0.59 | -19.88 | 249.62 | -4.37 | 169.71 | 0.4031 | -711.0 | -609.5 | |
| 0.00 | 1.09 | 0.00 | 0.63 | -27.28 | 249.18 | -4.81 | 171.68 | 0.5174 | -694.0 | -569.9 | |
| 0.00 | 1.45 | 0.00 | 0.82 | -24.17 | 248.91 | -5.09 | 170.08 | 0.4715 | -862.0 | -645.1 | |
| 0.00 | 0.27 | 0.00 | 0.16 | -27.35 | 248.73 | -5.26 | 170.94 | 0.5195 | -663.0 | -658.7 | |
| 0.00 | 0.91 | 0.00 | 0.52 | -25.80 | 248.67 | -5.33 | 170.27 | 0.4967 | -702.0 | -597.5 | |
| 0.00 | 1.00 | 0.00 | 0.56 | -24.16 | 245.65 | -8.35 | 164.00 | 0.4826 | -723.0 | -585.5 | |
| 0.00 | 1.18 | 0.00 | 0.64 | -19.14 | 245.91 | -8.09 | 160.85 | 0.4068 | 671.0 | 427.8 | |
| 0.00 | 2.36 | 0.00 | 1.36 | -26.25 | 245.02 | -8.98 | 164.18 | 0.5154 | -762.0 | -619.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
