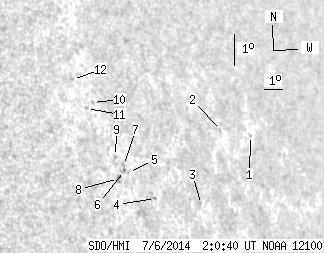

SDO HMI 2014-07-06 02:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 13.34 | 0.00 | 11.36 | 10.96 | 307.71 | 54.26 | 281.09 | 0.8134 | 231.2 | 254.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-06 02:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.09 | 0.00 | 1.11 | 11.03 | 314.43 | 60.99 | 280.73 | 0.8756 | -454.0 | -316.2 | |
| 0.00 | 0.45 | 0.00 | 0.44 | 11.27 | 312.70 | 59.25 | 281.10 | 0.8609 | -358.0 | -355.8 | |
| 0.00 | 0.73 | 0.00 | 0.67 | 9.08 | 310.86 | 57.41 | 278.61 | 0.8436 | -480.0 | -444.1 | |
| 0.00 | 0.91 | 0.00 | 0.78 | 9.39 | 308.36 | 54.92 | 279.09 | 0.8198 | 404.0 | 342.9 | |
| 0.00 | 0.82 | 0.00 | 0.68 | 10.25 | 307.13 | 53.69 | 280.22 | 0.8079 | 407.0 | 352.6 | |
| 0.00 | 1.27 | 0.00 | 1.06 | 10.32 | 306.94 | 53.49 | 280.33 | 0.8060 | 501.0 | 418.9 | |
| 0.00 | 0.45 | 0.00 | 0.38 | 10.48 | 306.93 | 53.48 | 280.52 | 0.8060 | 380.0 | 369.8 | |
| 0.00 | 2.63 | 0.00 | 2.18 | 10.09 | 306.57 | 53.12 | 280.07 | 0.8021 | 584.0 | 512.1 | |
| 0.00 | 1.00 | 0.00 | 0.83 | 10.77 | 306.58 | 53.14 | 280.91 | 0.8027 | 532.0 | 460.5 | |
| 0.00 | 1.09 | 0.00 | 0.89 | 12.48 | 305.86 | 52.42 | 283.12 | 0.7967 | 215.0 | 131.0 | |
| 0.00 | 1.36 | 0.00 | 1.10 | 12.31 | 305.51 | 52.06 | 282.94 | 0.7928 | 565.0 | 476.1 | |
| 0.00 | 1.54 | 0.00 | 1.24 | 13.23 | 305.06 | 51.62 | 284.16 | 0.7892 | 478.0 | 370.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
