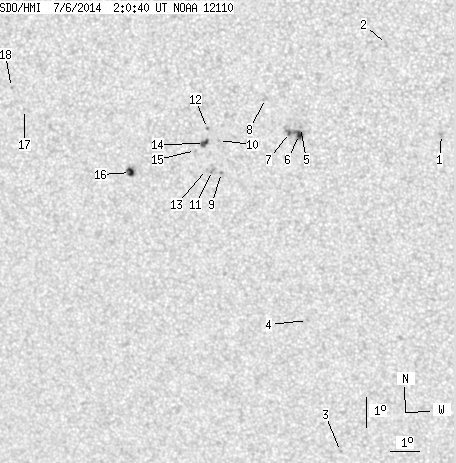

SDO HMI 2014-07-06 02:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 11.36 | 46.50 | 6.41 | 26.01 | -16.07 | 233.86 | -19.59 | 135.98 | 0.4642 | -170.8 | 53.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-06 02:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.82 | 0.00 | 1.51 | -15.59 | 240.44 | -13.01 | 146.21 | 0.3916 | 997.0 | 754.7 | |
| 0.00 | 2.82 | 0.00 | 1.50 | -12.74 | 238.84 | -14.61 | 138.30 | 0.3714 | 792.0 | 600.4 | |
| 0.00 | 0.82 | 0.00 | 0.49 | -26.29 | 235.86 | -17.59 | 151.20 | 0.5645 | 711.0 | 541.0 | |
| 0.00 | 0.91 | 0.00 | 0.52 | -21.79 | 235.36 | -18.09 | 145.72 | 0.5140 | 702.0 | 506.0 | |
| 0.00 | 1.63 | 0.00 | 0.90 | -15.44 | 235.82 | -17.63 | 137.66 | 0.4351 | 953.0 | 740.0 | |
| 3.18 | 12.17 | 1.75 | 6.71 | -15.66 | 235.77 | -17.68 | 137.94 | 0.4383 | 997.9 | 685.7 | |
| 0.91 | -6.00 | 0.50 | -6.00 | -15.61 | 235.44 | -18.01 | 137.33 | 0.4411 | 792.2 | 999999 | |
| 0.00 | 2.72 | 0.00 | 1.50 | -14.53 | 234.74 | -18.71 | 134.48 | 0.4369 | 697.0 | 488.5 | |
| 0.00 | 1.45 | 0.00 | 0.82 | -16.95 | 233.01 | -20.43 | 135.87 | 0.4815 | -869.0 | -720.6 | |
| 0.00 | 1.27 | 0.00 | 0.71 | -15.91 | 233.03 | -20.42 | 134.28 | 0.4705 | -836.0 | -709.4 | |
| 0.00 | 2.27 | 0.00 | 1.28 | -16.89 | 232.71 | -20.73 | 135.37 | 0.4841 | -999.0 | -818.2 | |
| 0.00 | 1.27 | 0.00 | 0.71 | -15.53 | 232.70 | -20.75 | 133.22 | 0.4703 | -963.0 | -806.8 | |
| 0.00 | 0.64 | 0.00 | 0.36 | -16.86 | 232.51 | -20.93 | 135.06 | 0.4860 | -686.0 | -563.0 | |
| 3.00 | 5.36 | 1.69 | 3.02 | -16.02 | 232.54 | -20.91 | 133.79 | 0.4770 | -915.7 | -636.2 | |
| 0.00 | 1.45 | 0.00 | 0.82 | -16.25 | 232.21 | -21.24 | 133.71 | 0.4831 | -689.0 | -488.3 | |
| 4.27 | 6.72 | 2.47 | 3.88 | -17.02 | 229.87 | -23.57 | 131.99 | 0.5165 | -976.9 | -732.8 | |
| 0.00 | 1.09 | 0.00 | 0.64 | -15.07 | 226.42 | -27.03 | 125.29 | 0.5397 | -627.0 | -476.1 | |
| 0.00 | 1.09 | 0.00 | 0.64 | -14.37 | 226.05 | -27.39 | 123.85 | 0.5387 | -851.0 | -713.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
