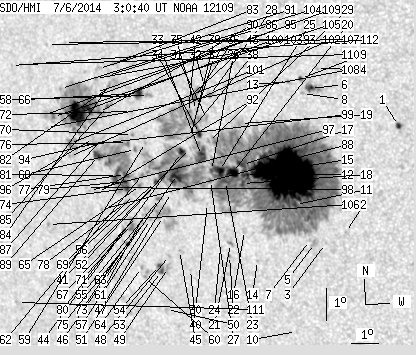

SDO HMI 2014-07-06 03:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 358.49 | 1801.69 | 216.44 | 1093.41 | -7.80 | 219.64 | -33.26 | 108.91 | 0.5758 | 393.4 | 40.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-06 03:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.18 | 4.81 | 1.23 | 2.72 | -6.38 | 226.02 | -26.88 | 110.02 | 0.4801 | 836.1 | 381.3 | |
| 0.00 | 0.64 | 0.00 | 0.37 | -9.76 | 223.91 | -28.99 | 114.79 | 0.5281 | -677.0 | -515.6 | |
| 0.00 | 0.91 | 0.00 | 0.53 | -10.13 | 223.16 | -29.73 | 114.88 | 0.5403 | -692.0 | -536.4 | |
| 0.00 | 1.27 | 0.00 | 0.73 | -4.70 | 223.26 | -29.64 | 105.13 | 0.5126 | -704.0 | -533.9 | |
| 0.00 | 5.27 | 0.00 | 3.11 | -10.14 | 222.77 | -30.13 | 114.62 | 0.5456 | -247.0 | -268.2 | |
| 2.91 | 11.17 | 1.68 | 6.46 | -5.32 | 223.01 | -29.88 | 106.18 | 0.5186 | 524.5 | -152.6 | |
| 0.00 | 1.09 | 0.00 | 0.64 | -10.05 | 222.60 | -30.30 | 114.35 | 0.5474 | -151.0 | -104.3 | |
| 0.00 | 1.54 | 0.00 | 0.90 | -5.48 | 222.72 | -30.18 | 106.33 | 0.5234 | 739.0 | 450.6 | |
| 1.00 | 2.09 | 0.58 | 1.21 | -5.02 | 222.67 | -30.22 | 105.45 | 0.5223 | -714.4 | -628.5 | |
| 0.00 | 1.18 | 0.00 | 0.71 | -12.95 | 221.77 | -31.13 | 118.48 | 0.5753 | 501.0 | 396.6 | |
| 5.18 | 1234.84 | 3.06 | 736.79 | -8.94 | 222.21 | -30.69 | 112.19 | 0.5466 | 844.5 | 254.5 | |
| 198.21 | -11.00 | 116.95 | -11.00 | -8.01 | 222.00 | -30.89 | 110.46 | 0.5448 | 1474.9 | 999999 | |
| 0.00 | 1.18 | 0.00 | 0.69 | -5.13 | 222.21 | -30.69 | 105.42 | 0.5294 | -668.0 | -487.6 | |
| 0.00 | 0.91 | 0.00 | 0.55 | -10.74 | 220.63 | -32.27 | 114.18 | 0.5771 | -646.0 | -595.9 | |
| 4.18 | -11.00 | 2.51 | -11.00 | -8.09 | 220.47 | -32.42 | 109.72 | 0.5660 | 693.5 | 999999 | |
| 0.00 | 3.09 | 0.00 | 1.87 | -9.81 | 220.26 | -32.64 | 112.44 | 0.5771 | 163.0 | 179.1 | |
| 5.45 | -11.00 | 3.27 | -11.00 | -7.75 | 220.40 | -32.50 | 109.10 | 0.5656 | 777.9 | 999999 | |
| 2.27 | -11.00 | 1.37 | -11.00 | -8.34 | 220.34 | -32.56 | 110.07 | 0.5690 | 575.2 | 999999 | |
| 0.00 | 4.18 | 0.00 | 2.49 | -6.48 | 220.43 | -32.47 | 106.95 | 0.5598 | 395.0 | 316.6 | |
| 9.99 | -11.00 | 6.02 | -11.00 | -8.01 | 220.01 | -32.89 | 109.33 | 0.5720 | 865.7 | 999999 | |
| 0.00 | 2.45 | 0.00 | 1.50 | -10.24 | 219.69 | -33.20 | 112.79 | 0.5867 | -915.0 | -736.0 | |
| 0.00 | 1.27 | 0.00 | 0.78 | -10.62 | 219.61 | -33.29 | 113.34 | 0.5897 | 597.0 | 508.1 | |
| 2.73 | -11.00 | 1.65 | -11.00 | -8.30 | 219.72 | -33.18 | 109.66 | 0.5772 | -303.3 | 999999 | |
| 0.00 | 0.73 | 0.00 | 0.45 | -10.38 | 219.31 | -33.59 | 112.78 | 0.5924 | -645.0 | -597.9 | |
| 8.36 | -11.00 | 5.07 | -11.00 | -7.97 | 219.53 | -33.37 | 109.00 | 0.5782 | 828.2 | 999999 | |
| 0.27 | -11.00 | 0.17 | -11.00 | -7.98 | 219.23 | -33.66 | 108.86 | 0.5823 | 553.3 | 999999 | |
| 0.64 | -11.00 | 0.39 | -11.00 | -8.29 | 219.17 | -33.73 | 109.34 | 0.5845 | 515.4 | 999999 | |
| 0.45 | 1.54 | 0.27 | 0.93 | -5.65 | 219.35 | -33.55 | 105.03 | 0.5716 | -783.0 | -593.5 | |
| 0.00 | 1.91 | 0.00 | 1.16 | -7.08 | 219.20 | -33.69 | 107.36 | 0.5790 | 758.0 | 542.4 | |
| 0.00 | 0.73 | 0.00 | 0.45 | -9.01 | 218.98 | -33.92 | 110.42 | 0.5902 | 211.0 | 169.6 | |
| 0.00 | 3.00 | 0.00 | 1.81 | -6.33 | 219.19 | -33.71 | 106.11 | 0.5763 | 227.0 | 208.9 | |
| 0.00 | 0.36 | 0.00 | 0.22 | -5.35 | 219.19 | -33.71 | 104.44 | 0.5728 | -318.0 | -294.5 | |
| 10.72 | -11.00 | 6.53 | -11.00 | -7.52 | 218.91 | -33.99 | 107.95 | 0.5848 | 850.5 | 999999 | |
| 3.00 | 91.84 | 1.82 | 56.32 | -6.84 | 218.89 | -34.01 | 106.82 | 0.5823 | 813.4 | -39.7 | |
| 0.00 | 1.82 | 0.00 | 1.10 | -6.13 | 218.84 | -34.06 | 105.61 | 0.5804 | -399.0 | -47.2 | |
| 0.55 | 9.17 | 0.33 | 5.56 | -5.73 | 218.79 | -34.11 | 104.92 | 0.5796 | 871.3 | 431.5 | |
| 1.00 | -34.00 | 0.61 | -34.00 | -6.51 | 218.69 | -34.20 | 106.18 | 0.5837 | 781.3 | 999999 | |
| 0.00 | 1.00 | 0.00 | 0.61 | -6.72 | 218.60 | -34.29 | 106.50 | 0.5858 | 435.0 | 380.0 | |
| 0.00 | 2.36 | 0.00 | 1.44 | -6.94 | 218.55 | -34.35 | 106.83 | 0.5874 | 465.0 | 386.2 | |
| 0.00 | 0.91 | 0.00 | 0.57 | -11.11 | 218.08 | -34.82 | 113.21 | 0.6118 | -664.0 | -507.7 | |
| 0.00 | 0.45 | 0.00 | 0.28 | -7.32 | 218.48 | -34.42 | 107.41 | 0.5898 | 507.0 | 436.0 | |
| 1.00 | -34.00 | 0.61 | -34.00 | -6.20 | 218.53 | -34.36 | 105.60 | 0.5848 | 578.9 | 999999 | |
| 0.00 | 3.27 | 0.00 | 1.99 | -5.74 | 218.57 | -34.33 | 104.84 | 0.5827 | -27.0 | 168.9 | |
| 4.54 | -11.00 | 2.79 | -11.00 | -7.45 | 218.17 | -34.73 | 107.49 | 0.5945 | 763.6 | 999999 | |
| 0.00 | 1.09 | 0.00 | 0.68 | -10.52 | 217.74 | -35.15 | 112.12 | 0.6133 | -320.0 | -288.6 | |
| 20.08 | -11.00 | 12.41 | -11.00 | -8.14 | 217.95 | -34.95 | 108.49 | 0.6001 | -737.7 | 999999 | |
| 0.00 | 0.64 | 0.00 | 0.40 | -8.71 | 217.66 | -35.24 | 109.26 | 0.6063 | -482.0 | -471.4 | |
| 0.00 | 1.54 | 0.00 | 0.97 | -10.69 | 217.34 | -35.56 | 112.17 | 0.6192 | -698.0 | -615.8 | |
| 0.00 | 3.91 | 0.00 | 2.47 | -11.07 | 217.25 | -35.65 | 112.69 | 0.6222 | -837.0 | -771.2 | |
| 0.00 | 2.00 | 0.00 | 1.27 | -12.41 | 216.97 | -35.93 | 114.53 | 0.6322 | -676.0 | -474.6 | |
| 0.00 | 37.88 | 0.00 | 23.74 | -9.47 | 217.27 | -35.63 | 110.25 | 0.6147 | -294.0 | -398.7 | |
| 3.82 | -11.00 | 2.38 | -11.00 | -8.22 | 217.37 | -35.52 | 108.35 | 0.6081 | -961.6 | 999999 | |
| 1.91 | 7.45 | 1.21 | 4.72 | -11.21 | 216.96 | -35.94 | 112.74 | 0.6265 | -786.5 | -690.1 | |
| 1.36 | -53.00 | 0.86 | -53.00 | -11.02 | 216.91 | -35.99 | 112.43 | 0.6262 | -953.7 | 999999 | |
| 0.00 | 2.73 | 0.00 | 1.71 | -8.92 | 217.18 | -35.71 | 109.34 | 0.6134 | -910.0 | -764.7 | |
| 1.45 | -11.00 | 0.91 | -11.00 | -8.39 | 217.09 | -35.81 | 108.48 | 0.6125 | -818.6 | 999999 | |
| 0.00 | 0.82 | 0.00 | 0.52 | -9.59 | 216.76 | -36.14 | 110.17 | 0.6217 | -695.0 | -605.2 | |
| 0.00 | 3.27 | 0.00 | 2.03 | -5.73 | 217.07 | -35.83 | 104.22 | 0.6031 | -876.0 | -730.6 | |
| 0.00 | 1.27 | 0.00 | 0.79 | -7.19 | 216.83 | -36.07 | 106.46 | 0.6113 | -276.0 | -260.7 | |
| 0.00 | 1.73 | 0.00 | 1.11 | -11.42 | 216.27 | -36.63 | 112.69 | 0.6361 | -537.0 | -473.3 | |
| 0.00 | 2.45 | 0.00 | 1.55 | -9.44 | 216.55 | -36.35 | 109.84 | 0.6238 | -578.0 | -511.9 | |
| 0.00 | 0.64 | 0.00 | 0.40 | -8.19 | 216.61 | -36.28 | 107.94 | 0.6179 | -930.0 | -817.0 | |
| 0.00 | 2.09 | 0.00 | 1.33 | -9.72 | 216.43 | -36.46 | 110.22 | 0.6265 | -612.0 | -436.4 | |
| 0.00 | 1.64 | 0.00 | 1.05 | -11.11 | 216.20 | -36.70 | 112.19 | 0.6355 | -725.0 | -621.9 | |
| 0.00 | 2.54 | 0.00 | 1.60 | -8.53 | 216.50 | -36.40 | 108.43 | 0.6208 | -832.0 | -680.8 | |
| 5.27 | 7.54 | 3.28 | 4.70 | -5.68 | 216.69 | -36.21 | 104.00 | 0.6080 | -974.5 | -734.6 | |
| 0.00 | 0.73 | 0.00 | 0.46 | -9.51 | 216.23 | -36.67 | 109.80 | 0.6282 | -596.0 | -514.6 | |
| 0.00 | 2.00 | 0.00 | 1.26 | -7.42 | 216.43 | -36.47 | 106.66 | 0.6175 | 440.0 | 338.0 | |
| 0.00 | 1.36 | 0.00 | 0.86 | -8.82 | 216.23 | -36.66 | 108.75 | 0.6253 | -689.0 | -574.2 | |
| 0.00 | 1.27 | 0.00 | 0.80 | -6.96 | 216.35 | -36.54 | 105.90 | 0.6168 | -815.0 | -716.2 | |
| 0.00 | 6.45 | 0.00 | 4.11 | -9.77 | 216.00 | -36.90 | 110.08 | 0.6322 | -840.0 | -692.6 | |
| 0.00 | 0.82 | 0.00 | 0.51 | -6.24 | 216.38 | -36.52 | 104.78 | 0.6140 | -726.0 | -556.9 | |
| 0.00 | 1.54 | 0.00 | 0.99 | -10.21 | 215.90 | -36.99 | 110.70 | 0.6353 | -815.0 | -690.7 | |
| 2.45 | 101.37 | 1.56 | 64.48 | -8.65 | 215.99 | -36.91 | 108.36 | 0.6279 | -854.9 | -649.5 | |
| 0.73 | 2.00 | 0.47 | 1.28 | -10.37 | 215.76 | -37.13 | 110.87 | 0.6378 | -714.5 | -577.9 | |
| 0.36 | -74.00 | 0.23 | -74.00 | -7.21 | 216.14 | -36.76 | 106.21 | 0.6205 | 373.5 | 999999 | |
| 3.00 | -74.00 | 1.90 | -74.00 | -8.21 | 215.96 | -36.94 | 107.69 | 0.6265 | -1051.9 | 999999 | |
| 0.00 | 0.64 | 0.00 | 0.41 | -9.09 | 215.86 | -37.04 | 108.98 | 0.6313 | -508.0 | -402.6 | |
| 2.09 | -74.00 | 1.33 | -74.00 | -8.43 | 215.89 | -37.00 | 107.99 | 0.6282 | -1045.2 | 999999 | |
| 0.00 | 2.73 | 0.00 | 1.75 | -9.94 | 215.67 | -37.23 | 110.17 | 0.6371 | -578.0 | -454.3 | |
| 8.27 | -74.00 | 5.27 | -74.00 | -8.25 | 215.64 | -37.25 | 107.61 | 0.6308 | -839.1 | 999999 | |
| 0.00 | 4.81 | 0.00 | 3.03 | -5.40 | 215.79 | -37.10 | 103.23 | 0.6192 | -576.0 | -462.5 | |
| 0.00 | 2.54 | 0.00 | 1.60 | -4.78 | 215.80 | -37.10 | 102.25 | 0.6173 | -823.0 | -681.4 | |
| 0.00 | 2.00 | 0.00 | 1.26 | -5.44 | 215.60 | -37.30 | 103.22 | 0.6219 | -938.0 | -862.0 | |
| 0.64 | 148.43 | 0.40 | 95.50 | -6.12 | 215.47 | -37.43 | 104.25 | 0.6258 | -754.7 | -444.1 | |
| 0.00 | 1.18 | 0.00 | 0.75 | -5.16 | 215.54 | -37.36 | 102.77 | 0.6219 | -734.0 | -602.7 | |
| 0.00 | 2.36 | 0.00 | 1.51 | -7.09 | 215.18 | -37.71 | 105.64 | 0.6326 | -378.0 | -302.8 | |
| 0.00 | 1.00 | 0.00 | 0.65 | -9.34 | 214.89 | -38.01 | 108.92 | 0.6446 | -691.0 | -571.7 | |
| 6.00 | -74.00 | 3.85 | -74.00 | -7.66 | 214.97 | -37.93 | 106.42 | 0.6373 | -908.8 | 999999 | |
| 1.18 | -85.00 | 0.75 | -85.00 | -6.32 | 215.10 | -37.80 | 104.42 | 0.6312 | -958.6 | 999999 | |
| 0.00 | 2.91 | 0.00 | 1.84 | -4.96 | 215.21 | -37.69 | 102.34 | 0.6257 | -669.0 | -585.4 | |
| 0.00 | 1.36 | 0.00 | 0.88 | -8.81 | 214.80 | -38.10 | 108.09 | 0.6437 | -92.0 | -134.0 | |
| 0.00 | 0.64 | 0.00 | 0.40 | -5.27 | 215.07 | -37.83 | 102.78 | 0.6285 | -798.0 | -754.7 | |
| 0.00 | 3.00 | 0.00 | 1.92 | -7.29 | 214.89 | -38.01 | 105.83 | 0.6371 | -571.0 | -628.8 | |
| 0.00 | 0.91 | 0.00 | 0.58 | -5.71 | 215.03 | -37.86 | 103.44 | 0.6302 | -721.0 | -577.7 | |
| 0.00 | 1.00 | 0.00 | 0.64 | -7.14 | 214.83 | -38.07 | 105.57 | 0.6374 | -699.0 | -619.2 | |
| 0.00 | 1.09 | 0.00 | 0.71 | -8.76 | 214.49 | -38.41 | 107.89 | 0.6475 | -690.0 | -536.4 | |
| 0.00 | 0.64 | 0.00 | 0.41 | -8.67 | 214.38 | -38.52 | 107.71 | 0.6485 | -567.0 | -489.1 | |
| 0.00 | 1.45 | 0.00 | 0.94 | -7.37 | 214.37 | -38.53 | 105.75 | 0.6441 | -719.0 | -538.6 | |
| 32.25 | -85.00 | 20.77 | -85.00 | -6.35 | 214.35 | -38.54 | 104.19 | 0.6410 | -1025.3 | 999999 | |
| 1.73 | 9.36 | 1.12 | 6.08 | -7.33 | 213.86 | -39.03 | 105.49 | 0.6505 | -694.1 | -616.8 | |
| 0.00 | 1.18 | 0.00 | 0.77 | -7.73 | 213.82 | -39.08 | 106.08 | 0.6524 | -561.0 | -480.2 | |
| 0.00 | 1.36 | 0.00 | 0.88 | -4.21 | 213.93 | -38.97 | 100.77 | 0.6407 | -580.0 | -441.9 | |
| 0.00 | 1.45 | 0.00 | 0.94 | -5.63 | 213.67 | -39.23 | 102.87 | 0.6479 | -386.0 | -283.9 | |
| 1.27 | 3.36 | 0.83 | 2.20 | -6.51 | 213.31 | -39.59 | 104.08 | 0.6550 | -702.4 | -485.8 | |
| 0.00 | 1.36 | 0.00 | 0.91 | -9.89 | 212.69 | -40.21 | 108.78 | 0.6740 | -676.0 | -568.7 | |
| 0.00 | 0.64 | 0.00 | 0.41 | -4.29 | 213.25 | -39.65 | 100.72 | 0.6499 | -412.0 | -374.9 | |
| 0.00 | 1.00 | 0.00 | 0.66 | -6.86 | 212.99 | -39.90 | 104.49 | 0.6601 | -380.0 | -287.5 | |
| 0.00 | 3.54 | 0.00 | 2.33 | -6.46 | 212.99 | -39.90 | 103.89 | 0.6589 | 148.0 | 104.8 | |
| 0.00 | 1.18 | 0.00 | 0.78 | -4.95 | 212.16 | -40.74 | 101.40 | 0.6655 | -523.0 | -409.7 | |
| 0.00 | 2.27 | 0.00 | 1.58 | -12.41 | 210.97 | -41.93 | 111.56 | 0.7039 | 437.0 | 317.2 | |
| 0.00 | 0.55 | 0.00 | 0.36 | -5.00 | 211.75 | -41.15 | 101.35 | 0.6709 | -490.0 | -410.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
