SDO HMI 2014-07-06 03:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 10.17 | 43.79 | 5.69 | 24.50 | -15.80 | 233.25 | -19.64 | 135.79 | 0.4614 | -121.0 | -101.8 | |
|
previous
or next observation for the same group /

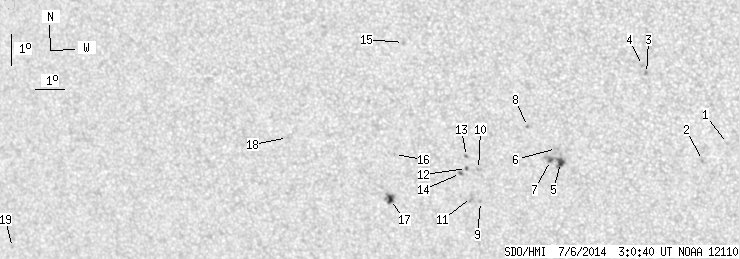

back to the solar disc SDO HMI 2014-07-06 03:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.18 | 0.00 | 0.63 | -14.99 | 241.31 | -11.59 | 148.33 | 0.3711 | 697.0 | 383.4 | |
| 0.00 | 1.18 | 0.00 | 0.63 | -15.55 | 240.47 | -12.43 | 147.35 | 0.3859 | 950.0 | 864.4 | |
| 0.00 | 1.73 | 0.00 | 0.92 | -12.79 | 238.83 | -14.07 | 139.46 | 0.3663 | 872.0 | 737.9 | |
| 0.00 | 1.54 | 0.00 | 0.82 | -12.53 | 238.71 | -14.18 | 138.77 | 0.3645 | 845.0 | 678.6 | |
| 4.00 | 11.54 | 2.19 | 6.34 | -15.68 | 235.81 | -17.09 | 138.92 | 0.4323 | 931.4 | 683.7 | |
| 0.00 | 1.82 | 0.00 | 1.00 | -15.23 | 235.72 | -17.18 | 138.05 | 0.4281 | 830.0 | 705.0 | |
| 1.36 | -5.00 | 0.75 | -5.00 | -15.62 | 235.48 | -17.41 | 138.30 | 0.4350 | 761.9 | 999999 | |
| 0.00 | 1.09 | 0.00 | 0.60 | -14.54 | 234.82 | -18.08 | 135.47 | 0.4301 | 856.0 | 723.1 | |
| 0.00 | 1.18 | 0.00 | 0.66 | -16.99 | 233.00 | -19.90 | 136.69 | 0.4764 | -929.0 | -768.5 | |
| 0.00 | 1.64 | 0.00 | 0.91 | -15.96 | 233.04 | -19.85 | 135.15 | 0.4649 | -840.0 | -732.9 | |
| 0.00 | 3.63 | 0.00 | 2.05 | -16.87 | 232.71 | -20.19 | 136.09 | 0.4782 | -740.0 | -718.5 | |
| 0.45 | 1.54 | 0.25 | 0.87 | -15.93 | 232.64 | -20.26 | 134.55 | 0.4690 | -884.0 | -732.3 | |
| 0.00 | 1.54 | 0.00 | 0.86 | -15.54 | 232.68 | -20.22 | 133.98 | 0.4646 | -1049.0 | -794.9 | |
| 0.64 | 1.82 | 0.36 | 1.02 | -16.10 | 232.42 | -20.48 | 134.50 | 0.4732 | -909.1 | -820.5 | |
| 0.00 | 1.18 | 0.00 | 0.66 | -11.95 | 230.91 | -21.99 | 125.43 | 0.4514 | -409.0 | -411.0 | |
| 0.00 | 0.82 | 0.00 | 0.46 | -15.53 | 230.23 | -22.66 | 130.78 | 0.4922 | -684.0 | -568.0 | |
| 3.72 | 8.36 | 2.14 | 4.81 | -17.00 | 229.91 | -22.98 | 132.67 | 0.5098 | -1057.6 | -741.5 | |
| 0.00 | 1.00 | 0.00 | 0.58 | -15.08 | 226.57 | -26.33 | 126.00 | 0.5314 | -483.0 | -401.3 | |
| 0.00 | 1.00 | 0.00 | 0.68 | -19.00 | 215.45 | -37.45 | 122.74 | 0.6858 | -546.0 | -472.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
