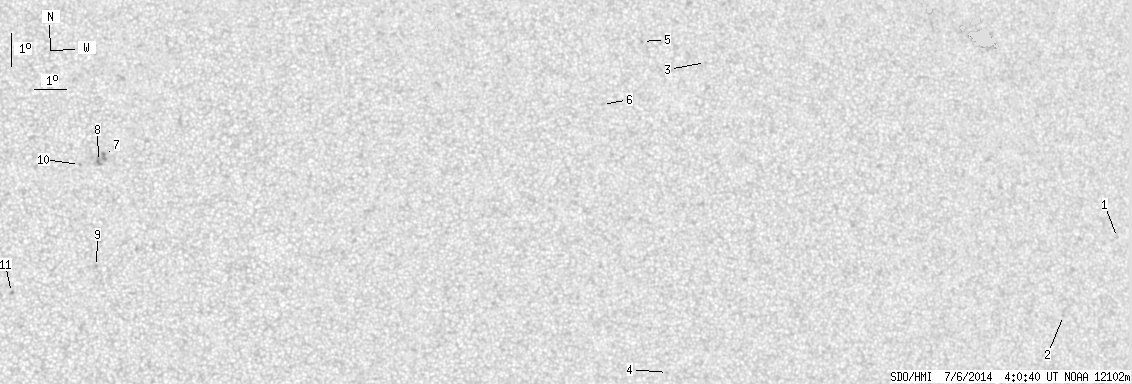

SDO HMI 2014-07-06 04:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 17.26 | 0.00 | 8.81 | 6.54 | 259.11 | 6.76 | 115.45 | 0.1774 | 576.0 | 600.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-06 04:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.00 | 0.00 | 0.58 | 4.65 | 284.05 | 31.70 | 273.32 | 0.5267 | -666.0 | -599.6 | |
| 0.00 | 1.09 | 0.00 | 0.62 | 2.33 | 282.04 | 29.69 | 268.72 | 0.4970 | -679.0 | -506.8 | |
| 0.00 | 1.09 | 0.00 | 0.57 | 10.36 | 270.38 | 18.03 | 292.11 | 0.3301 | 687.0 | 495.3 | |
| 0.00 | 0.82 | 0.00 | 0.42 | 0.92 | 268.85 | 16.50 | 261.76 | 0.2883 | 686.0 | 601.6 | |
| 0.00 | 0.55 | 0.00 | 0.28 | 11.04 | 268.37 | 16.03 | 296.47 | 0.3040 | 736.0 | 613.8 | |
| 0.00 | 1.18 | 0.00 | 0.61 | 9.13 | 266.99 | 14.65 | 292.11 | 0.2706 | 836.0 | 643.0 | |
| 0.00 | 3.27 | 0.00 | 1.62 | 7.67 | 251.47 | -0.88 | 11.65 | 0.0760 | 890.0 | 896.2 | |
| 0.00 | 4.54 | 0.00 | 2.26 | 7.51 | 251.28 | -1.07 | 14.49 | 0.0741 | 1113.0 | 885.2 | |
| 0.00 | 1.36 | 0.00 | 0.68 | 4.31 | 251.22 | -1.13 | 51.47 | 0.0252 | 864.0 | 669.3 | |
| 0.00 | 1.09 | 0.00 | 0.54 | 7.42 | 250.70 | -1.65 | 22.24 | 0.0758 | 818.0 | 699.1 | |
| 0.00 | 1.27 | 0.00 | 0.63 | 3.52 | 248.62 | -3.72 | 88.38 | 0.0651 | 1051.0 | 912.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
