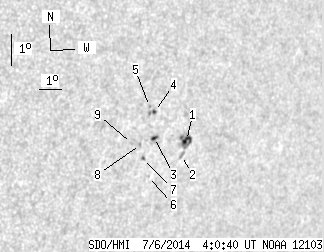

SDO HMI 2014-07-06 04:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 7.73 | 29.27 | 5.78 | 21.86 | -12.82 | 298.37 | 46.02 | 249.53 | 0.7511 | -3.9 | 135.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-06 04:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 4.63 | 13.54 | 3.51 | 10.26 | -12.88 | 299.12 | 46.77 | 249.74 | 0.7594 | 649.9 | 500.1 | |
| 0.00 | 3.00 | 0.00 | 2.28 | -13.35 | 299.00 | 46.66 | 249.10 | 0.7597 | 298.0 | 329.8 | |
| 1.73 | 4.27 | 1.27 | 3.15 | -12.71 | 297.63 | 45.28 | 249.40 | 0.7428 | -419.6 | -109.2 | |
| 0.82 | 2.91 | 0.60 | 2.12 | -11.88 | 297.45 | 45.10 | 250.41 | 0.7381 | -529.8 | -492.0 | |
| 0.00 | 1.09 | 0.00 | 0.79 | -11.72 | 297.19 | 44.84 | 250.53 | 0.7347 | -416.0 | -443.3 | |
| 0.00 | 0.82 | 0.00 | 0.61 | -13.95 | 297.66 | 45.31 | 247.81 | 0.7474 | -514.0 | -394.9 | |
| 0.55 | 1.73 | 0.40 | 1.27 | -13.36 | 297.29 | 44.94 | 248.43 | 0.7414 | -423.5 | -362.4 | |
| 0.00 | 0.91 | 0.00 | 0.66 | -12.91 | 297.05 | 44.71 | 248.92 | 0.7372 | -466.0 | -287.3 | |
| 0.00 | 1.00 | 0.00 | 0.72 | -12.86 | 296.65 | 44.30 | 248.82 | 0.7325 | 215.0 | 150.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
