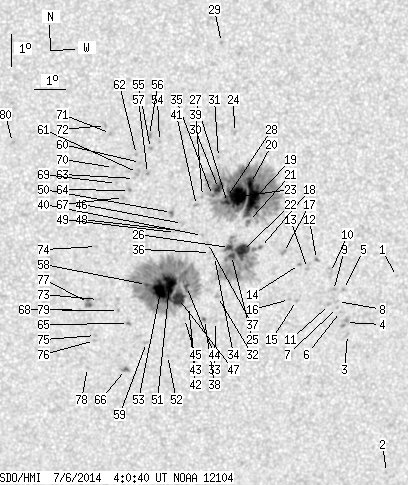

SDO HMI 2014-07-06 04:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 150.81 | 834.29 | 80.60 | 446.01 | -11.81 | 268.33 | 15.98 | 225.98 | 0.3774 | 307.6 | 67.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-06 04:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.82 | 0.00 | 0.46 | -12.98 | 274.50 | 22.15 | 232.88 | 0.4626 | 625.0 | 494.9 | |
| 0.00 | 1.18 | 0.00 | 0.69 | -19.33 | 274.91 | 22.56 | 223.43 | 0.5286 | 774.0 | 520.8 | |
| 0.00 | 1.54 | 0.00 | 0.86 | -14.80 | 273.02 | 20.67 | 227.85 | 0.4622 | 656.0 | 563.3 | |
| 0.00 | 4.63 | 0.00 | 2.58 | -14.41 | 272.91 | 20.56 | 228.36 | 0.4571 | 774.0 | 727.4 | |
| 0.00 | 1.27 | 0.00 | 0.70 | -13.35 | 272.75 | 20.40 | 229.97 | 0.4448 | 770.0 | 650.9 | |
| 0.00 | 0.91 | 0.00 | 0.50 | -14.05 | 272.71 | 20.36 | 228.69 | 0.4512 | 634.0 | 526.3 | |
| 0.00 | 0.82 | 0.00 | 0.45 | -13.92 | 272.60 | 20.25 | 228.76 | 0.4486 | 752.0 | 610.1 | |
| 0.00 | 1.36 | 0.00 | 0.75 | -13.73 | 272.58 | 20.23 | 229.07 | 0.4465 | 625.0 | 512.1 | |
| 0.00 | 0.55 | 0.00 | 0.30 | -13.38 | 272.42 | 20.07 | 229.47 | 0.4410 | 633.0 | 598.0 | |
| 0.00 | 5.36 | 0.00 | 2.94 | -12.80 | 272.27 | 19.92 | 230.30 | 0.4336 | 568.0 | 642.4 | |
| 0.00 | 0.91 | 0.00 | 0.50 | -13.82 | 272.32 | 19.97 | 228.56 | 0.4443 | 778.0 | 672.7 | |
| 0.45 | 1.91 | 0.25 | 1.04 | -12.38 | 271.77 | 19.42 | 230.38 | 0.4234 | 833.6 | 681.2 | |
| 0.00 | 1.73 | 0.00 | 0.94 | -12.66 | 271.49 | 19.15 | 229.46 | 0.4228 | 807.0 | 598.5 | |
| 0.00 | 1.27 | 0.00 | 0.69 | -12.53 | 271.22 | 18.87 | 229.30 | 0.4182 | 921.0 | 806.0 | |
| 0.00 | 1.27 | 0.00 | 0.70 | -13.67 | 271.21 | 18.86 | 227.22 | 0.4298 | 791.0 | 657.0 | |
| 0.00 | 1.09 | 0.00 | 0.60 | -13.63 | 270.97 | 18.63 | 226.93 | 0.4267 | 716.0 | 547.2 | |
| 0.00 | 2.73 | 0.00 | 1.48 | -12.13 | 270.66 | 18.32 | 229.20 | 0.4075 | 936.0 | 764.3 | |
| 0.64 | 118.65 | 0.34 | 63.88 | -11.96 | 269.90 | 17.55 | 228.34 | 0.3965 | 718.9 | 279.2 | |
| 29.16 | 329.86 | 15.59 | 175.89 | -10.44 | 269.58 | 17.23 | 230.88 | 0.3771 | 1079.7 | 445.1 | |
| 8.63 | -19.00 | 4.60 | -19.00 | -9.94 | 269.45 | 17.10 | 231.75 | 0.3705 | 1236.7 | 999999 | |
| 0.64 | -19.00 | 0.34 | -19.00 | -11.13 | 269.45 | 17.11 | 229.26 | 0.3826 | 788.7 | 999999 | |
| 13.63 | -18.00 | 7.33 | -18.00 | -12.04 | 269.32 | 16.97 | 227.23 | 0.3905 | 996.7 | 999999 | |
| 24.98 | -19.00 | 13.31 | -19.00 | -10.34 | 269.09 | 16.74 | 230.29 | 0.3699 | 1451.9 | 999999 | |
| 0.00 | 1.36 | 0.00 | 0.72 | -8.34 | 268.86 | 16.51 | 234.41 | 0.3473 | -643.0 | -527.2 | |
| 2.91 | -18.00 | 1.56 | -18.00 | -12.20 | 268.97 | 16.62 | 226.35 | 0.3880 | 793.7 | 999999 | |
| 3.27 | -18.00 | 1.75 | -18.00 | -11.94 | 268.89 | 16.54 | 226.70 | 0.3843 | 1108.9 | 999999 | |
| 2.36 | -19.00 | 1.26 | -19.00 | -10.52 | 268.74 | 16.39 | 229.32 | 0.3674 | 1184.6 | 999999 | |
| 1.45 | -19.00 | 0.77 | -19.00 | -10.36 | 268.70 | 16.35 | 229.58 | 0.3653 | 1223.1 | 999999 | |
| 0.00 | 1.36 | 0.00 | 0.71 | -5.54 | 268.35 | 16.00 | 240.79 | 0.3157 | 845.0 | 664.4 | |
| 7.36 | -19.00 | 3.90 | -19.00 | -10.08 | 268.43 | 16.08 | 229.72 | 0.3589 | 1288.6 | 999999 | |
| 0.00 | 1.18 | 0.00 | 0.62 | -9.11 | 268.38 | 16.03 | 231.80 | 0.3485 | 884.0 | 653.8 | |
| 0.00 | 3.27 | 0.00 | 1.76 | -13.49 | 268.60 | 16.25 | 223.32 | 0.3982 | 74.0 | 102.4 | |
| 0.00 | 1.54 | 0.00 | 0.84 | -14.29 | 268.59 | 16.24 | 221.92 | 0.4073 | -725.0 | -578.3 | |
| 0.00 | 1.18 | 0.00 | 0.63 | -12.22 | 268.42 | 16.07 | 225.35 | 0.3819 | 548.0 | 433.4 | |
| 0.64 | -19.00 | 0.34 | -19.00 | -10.29 | 268.24 | 15.90 | 228.94 | 0.3589 | 950.9 | 999999 | |
| 0.00 | 1.27 | 0.00 | 0.68 | -12.09 | 268.28 | 15.93 | 225.35 | 0.3788 | 696.0 | 529.9 | |
| 0.00 | 0.91 | 0.00 | 0.48 | -11.77 | 268.16 | 15.81 | 225.76 | 0.3739 | 745.0 | 590.2 | |
| 0.45 | 1.27 | 0.25 | 0.69 | -14.22 | 268.22 | 15.87 | 221.40 | 0.4026 | -930.8 | -855.0 | |
| 0.00 | 1.54 | 0.00 | 0.82 | -10.32 | 267.92 | 15.57 | 228.31 | 0.3553 | 861.0 | 633.6 | |
| 0.00 | 1.09 | 0.00 | 0.58 | -11.55 | 267.99 | 15.64 | 225.89 | 0.3694 | 747.0 | 529.8 | |
| 0.00 | 2.18 | 0.00 | 1.16 | -10.60 | 267.74 | 15.40 | 227.39 | 0.3561 | 711.0 | 559.6 | |
| 0.00 | 2.36 | 0.00 | 1.28 | -14.56 | 267.79 | 15.44 | 220.05 | 0.4022 | -625.0 | -558.2 | |
| 0.00 | 2.45 | 0.00 | 1.32 | -13.79 | 267.67 | 15.32 | 221.14 | 0.3918 | -433.0 | -387.1 | |
| 2.91 | 279.17 | 1.56 | 149.09 | -13.15 | 267.57 | 15.22 | 222.07 | 0.3831 | -1045.6 | -522.5 | |
| 0.00 | 1.36 | 0.00 | 0.73 | -14.17 | 267.57 | 15.22 | 220.29 | 0.3952 | -481.0 | -371.1 | |
| 0.00 | 2.09 | 0.00 | 1.11 | -11.16 | 267.32 | 14.97 | 225.44 | 0.3573 | 539.0 | 499.6 | |
| 11.63 | -44.00 | 6.24 | -44.00 | -13.53 | 267.33 | 14.98 | 220.96 | 0.3850 | -1014.1 | 999999 | |
| 0.00 | 1.45 | 0.00 | 0.77 | -11.37 | 267.20 | 14.86 | 224.77 | 0.3584 | 616.0 | 476.9 | |
| 0.00 | 0.45 | 0.00 | 0.24 | -11.44 | 267.11 | 14.76 | 224.47 | 0.3581 | 302.0 | 374.6 | |
| 0.45 | 3.36 | 0.24 | 1.78 | -10.80 | 266.95 | 14.60 | 225.45 | 0.3490 | 942.4 | 727.2 | |
| 16.81 | -44.00 | 8.98 | -44.00 | -13.08 | 267.01 | 14.66 | 221.15 | 0.3762 | -1437.3 | 999999 | |
| 0.00 | 1.18 | 0.00 | 0.64 | -15.35 | 267.09 | 14.75 | 217.50 | 0.4049 | -672.0 | -507.5 | |
| 20.17 | -44.00 | 10.78 | -44.00 | -13.30 | 266.73 | 14.38 | 220.23 | 0.3759 | -1351.5 | 999999 | |
| 0.00 | 1.09 | 0.00 | 0.57 | -8.57 | 266.47 | 14.12 | 229.51 | 0.3186 | 745.0 | 622.8 | |
| 0.00 | 1.64 | 0.00 | 0.85 | -8.79 | 266.19 | 13.85 | 228.44 | 0.3175 | 994.0 | 822.3 | |
| 0.00 | 2.18 | 0.00 | 1.14 | -8.38 | 266.15 | 13.80 | 229.33 | 0.3125 | 945.0 | 816.7 | |
| 0.00 | 1.00 | 0.00 | 0.52 | -9.57 | 266.13 | 13.78 | 226.49 | 0.3253 | 777.0 | 706.9 | |
| 1.45 | -44.00 | 0.77 | -44.00 | -13.07 | 266.27 | 13.92 | 219.72 | 0.3683 | -933.9 | 999999 | |
| 0.00 | 1.73 | 0.00 | 0.93 | -14.92 | 266.38 | 14.03 | 216.82 | 0.3926 | -819.0 | -512.3 | |
| 0.00 | 1.27 | 0.00 | 0.66 | -9.22 | 265.89 | 13.54 | 226.79 | 0.3185 | 820.0 | 674.1 | |
| 0.00 | 3.18 | 0.00 | 1.66 | -9.53 | 265.81 | 13.46 | 225.90 | 0.3211 | 710.0 | 816.3 | |
| 0.00 | 1.27 | 0.00 | 0.66 | -8.97 | 265.76 | 13.41 | 227.09 | 0.3141 | 916.0 | 734.4 | |
| 0.00 | 0.91 | 0.00 | 0.48 | -9.72 | 265.72 | 13.37 | 225.29 | 0.3222 | 721.0 | 587.0 | |
| 0.00 | 1.54 | 0.00 | 0.81 | -10.09 | 265.58 | 13.23 | 224.16 | 0.3248 | 829.0 | 721.9 | |
| 0.00 | 1.73 | 0.00 | 0.92 | -14.30 | 265.76 | 13.41 | 216.58 | 0.3787 | -954.0 | -747.3 | |
| 0.82 | 3.63 | 0.44 | 1.96 | -15.78 | 265.75 | 13.40 | 214.28 | 0.3978 | -921.7 | -692.5 | |
| 0.00 | 1.73 | 0.00 | 0.90 | -10.31 | 265.40 | 13.05 | 223.29 | 0.3253 | 593.0 | 572.1 | |
| 0.00 | 1.00 | 0.00 | 0.53 | -13.88 | 265.41 | 13.06 | 216.56 | 0.3699 | -596.0 | -480.3 | |
| 0.00 | 1.18 | 0.00 | 0.62 | -9.87 | 265.16 | 12.81 | 223.73 | 0.3173 | 764.0 | 607.3 | |
| 0.00 | 1.09 | 0.00 | 0.57 | -9.36 | 265.04 | 12.69 | 224.61 | 0.3101 | 834.0 | 686.1 | |
| 0.00 | 1.54 | 0.00 | 0.80 | -8.30 | 264.91 | 12.56 | 226.86 | 0.2963 | 766.0 | 590.0 | |
| 0.00 | 1.54 | 0.00 | 0.80 | -8.05 | 264.75 | 12.40 | 227.11 | 0.2914 | 894.0 | 654.1 | |
| 0.00 | 2.18 | 0.00 | 1.16 | -13.52 | 264.75 | 12.40 | 215.75 | 0.3589 | -792.0 | -640.5 | |
| 0.00 | 1.36 | 0.00 | 0.72 | -11.84 | 264.60 | 12.25 | 218.43 | 0.3356 | -929.0 | -666.0 | |
| 0.00 | 1.09 | 0.00 | 0.58 | -14.67 | 264.71 | 12.36 | 213.82 | 0.3737 | -774.0 | -664.4 | |
| 0.00 | 0.82 | 0.00 | 0.44 | -14.83 | 264.69 | 12.34 | 213.53 | 0.3757 | -652.0 | -530.8 | |
| 0.00 | 5.72 | 0.00 | 3.03 | -13.61 | 264.43 | 12.08 | 214.90 | 0.3571 | -986.0 | -850.4 | |
| 0.00 | 1.27 | 0.00 | 0.68 | -15.70 | 264.51 | 12.17 | 211.88 | 0.3858 | -672.0 | -515.9 | |
| 0.00 | 1.27 | 0.00 | 0.67 | -13.86 | 264.15 | 11.81 | 213.88 | 0.3579 | -648.0 | -512.3 | |
| 0.00 | 1.45 | 0.00 | 0.75 | -8.54 | 261.84 | 9.49 | 218.31 | 0.2642 | -787.0 | -637.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
