SDO HMI 2014-07-06 04:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 58.95 | 386.54 | 30.23 | 198.01 | 14.95 | 260.80 | 8.45 | 325.74 | 0.2530 | -447.5 | -313.3 | |
|
previous
or next observation for the same group /

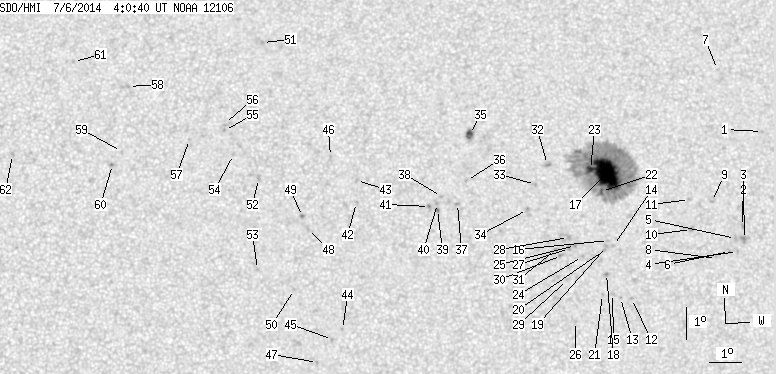

back to the solar disc SDO HMI 2014-07-06 04:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.73 | 0.00 | 0.38 | 16.49 | 266.92 | 14.58 | 313.38 | 0.3335 | -790.0 | -676.1 | |
| 0.00 | 5.09 | 0.00 | 2.63 | 13.14 | 266.11 | 13.76 | 306.37 | 0.2890 | -1012.0 | -855.9 | |
| 0.00 | 1.91 | 0.00 | 0.99 | 13.55 | 266.07 | 13.72 | 307.59 | 0.2923 | -762.0 | -721.2 | |
| 0.00 | 1.36 | 0.00 | 0.70 | 12.78 | 265.86 | 13.51 | 305.78 | 0.2822 | -863.0 | -655.8 | |
| 0.00 | 2.36 | 0.00 | 1.22 | 13.18 | 265.82 | 13.47 | 307.03 | 0.2854 | -972.0 | -746.0 | |
| 0.00 | 1.18 | 0.00 | 0.61 | 12.78 | 265.61 | 13.26 | 306.29 | 0.2787 | -842.0 | -650.3 | |
| 0.00 | 1.00 | 0.00 | 0.53 | 18.46 | 265.60 | 13.25 | 320.21 | 0.3412 | -621.0 | -428.2 | |
| 0.00 | 0.45 | 0.00 | 0.23 | 12.57 | 265.18 | 12.83 | 306.53 | 0.2709 | -352.0 | -444.6 | |
| 0.00 | 1.27 | 0.00 | 0.66 | 14.34 | 265.12 | 12.77 | 311.71 | 0.2881 | -1014.0 | -780.9 | |
| 0.00 | 2.09 | 0.00 | 1.07 | 13.48 | 264.42 | 12.08 | 310.86 | 0.2702 | -942.0 | -775.1 | |
| 0.00 | 1.54 | 0.00 | 0.80 | 14.41 | 264.41 | 12.06 | 313.48 | 0.2802 | -730.0 | -459.8 | |
| 0.00 | 1.36 | 0.00 | 0.69 | 11.37 | 262.42 | 10.07 | 309.09 | 0.2219 | -873.0 | -638.9 | |
| 0.00 | 1.00 | 0.00 | 0.51 | 11.41 | 262.08 | 9.73 | 310.17 | 0.2177 | -762.0 | -525.5 | |
| 0.00 | 1.36 | 0.00 | 0.69 | 13.01 | 261.92 | 9.57 | 315.96 | 0.2340 | -745.0 | -556.2 | |
| 0.00 | 1.54 | 0.00 | 0.78 | 11.53 | 261.83 | 9.48 | 311.34 | 0.2159 | -737.0 | -595.1 | |
| 0.00 | 1.00 | 0.00 | 0.51 | 13.17 | 261.76 | 9.42 | 316.89 | 0.2341 | -764.0 | -603.9 | |
| 49.51 | 291.98 | 25.40 | 149.84 | 15.25 | 261.79 | 9.44 | 322.44 | 0.2608 | -1454.5 | -414.1 | |
| 0.00 | 1.82 | 0.00 | 0.92 | 12.15 | 261.66 | 9.31 | 313.97 | 0.2208 | -978.0 | -828.0 | |
| 0.00 | 1.27 | 0.00 | 0.65 | 12.98 | 261.69 | 9.34 | 316.54 | 0.2311 | -910.0 | -790.4 | |
| 0.00 | 1.27 | 0.00 | 0.65 | 12.86 | 261.59 | 9.24 | 316.46 | 0.2284 | -812.0 | -635.8 | |
| 0.00 | 1.09 | 0.00 | 0.55 | 11.51 | 261.51 | 9.16 | 312.19 | 0.2116 | -696.0 | -545.9 | |
| 1.91 | -17.00 | 0.98 | -17.00 | 14.69 | 261.60 | 9.26 | 321.59 | 0.2515 | -1152.9 | 999999 | |
| 3.45 | -17.00 | 1.77 | -17.00 | 15.38 | 261.28 | 8.94 | 324.24 | 0.2574 | -1126.8 | 999999 | |
| 0.00 | 1.18 | 0.00 | 0.60 | 12.68 | 260.92 | 8.57 | 318.02 | 0.2184 | -840.0 | -724.5 | |
| 0.00 | 1.36 | 0.00 | 0.69 | 13.03 | 260.71 | 8.36 | 319.77 | 0.2204 | -965.0 | -890.7 | |
| 0.00 | 0.91 | 0.00 | 0.46 | 10.68 | 260.64 | 8.29 | 311.89 | 0.1912 | 612.0 | 467.2 | |
| 0.00 | 1.91 | 0.00 | 0.97 | 12.93 | 260.52 | 8.17 | 320.14 | 0.2171 | -940.0 | -826.9 | |
| 0.00 | 2.73 | 0.00 | 1.38 | 13.27 | 260.50 | 8.15 | 321.22 | 0.2213 | -772.0 | -662.6 | |
| 0.00 | 1.18 | 0.00 | 0.60 | 11.98 | 260.43 | 8.08 | 317.39 | 0.2040 | -901.0 | -724.7 | |
| 0.00 | 2.00 | 0.00 | 1.01 | 12.72 | 260.26 | 7.91 | 320.38 | 0.2115 | -808.0 | -682.9 | |
| 0.00 | 1.64 | 0.00 | 0.83 | 12.91 | 260.08 | 7.73 | 321.60 | 0.2120 | -1005.0 | -766.2 | |
| 0.00 | 2.27 | 0.00 | 1.16 | 15.55 | 259.92 | 7.57 | 328.93 | 0.2470 | 1031.0 | 821.4 | |
| 0.00 | 1.27 | 0.00 | 0.65 | 14.93 | 259.51 | 7.16 | 328.93 | 0.2345 | -846.0 | -667.8 | |
| 0.00 | 2.09 | 0.00 | 1.06 | 14.15 | 259.23 | 6.88 | 328.09 | 0.2209 | -839.0 | -732.6 | |
| 3.72 | 5.54 | 1.90 | 2.83 | 16.50 | 257.46 | 5.11 | 339.34 | 0.2433 | 1113.8 | 867.0 | |
| 0.00 | 1.73 | 0.00 | 0.88 | 15.07 | 257.33 | 4.98 | 337.48 | 0.2198 | 680.0 | 539.9 | |
| 0.00 | 1.91 | 0.00 | 0.97 | 14.36 | 257.03 | 4.68 | 337.41 | 0.2066 | 732.0 | 518.1 | |
| 0.00 | 1.45 | 0.00 | 0.74 | 14.58 | 256.53 | 4.18 | 340.00 | 0.2070 | 871.0 | 637.3 | |
| 0.36 | 1.82 | 0.18 | 0.92 | 14.17 | 256.39 | 4.04 | 339.89 | 0.1998 | 907.2 | 735.8 | |
| 0.00 | 1.45 | 0.00 | 0.74 | 14.36 | 256.39 | 4.05 | 340.20 | 0.2028 | 814.0 | 647.8 | |
| 0.00 | 1.64 | 0.00 | 0.83 | 14.27 | 256.14 | 3.79 | 341.20 | 0.1999 | 1071.0 | 809.2 | |
| 0.00 | 1.00 | 0.00 | 0.50 | 14.40 | 253.84 | 1.50 | 352.44 | 0.1931 | -497.0 | -404.5 | |
| 0.00 | 1.64 | 0.00 | 0.83 | 15.08 | 253.85 | 1.50 | 352.87 | 0.2047 | 735.0 | 528.8 | |
| 0.00 | 1.18 | 0.00 | 0.59 | 10.48 | 253.38 | 1.03 | 351.78 | 0.1248 | 821.0 | 634.2 | |
| 0.00 | 1.36 | 0.00 | 0.68 | 10.18 | 253.07 | 0.72 | 353.97 | 0.1189 | 928.0 | 750.9 | |
| 0.00 | 0.82 | 0.00 | 0.41 | 15.83 | 253.03 | 0.68 | 356.94 | 0.2163 | 764.0 | 623.1 | |
| 0.00 | 1.18 | 0.00 | 0.59 | 9.47 | 252.61 | 0.26 | 357.59 | 0.1060 | 867.0 | 670.1 | |
| 0.00 | 2.54 | 0.00 | 1.28 | 13.60 | 252.30 | -0.05 | 0.26 | 0.1775 | 882.0 | 653.8 | |
| 0.00 | 1.54 | 0.00 | 0.78 | 13.97 | 252.14 | -0.20 | 1.08 | 0.1840 | 993.0 | 835.6 | |
| 0.00 | 1.36 | 0.00 | 0.68 | 11.71 | 251.90 | -0.45 | 3.07 | 0.1452 | 667.0 | 547.5 | |
| 0.00 | 1.64 | 0.00 | 0.84 | 19.42 | 250.85 | -1.49 | 5.10 | 0.2780 | 834.0 | 634.5 | |
| 0.00 | 3.09 | 0.00 | 1.56 | 15.15 | 250.76 | -1.59 | 7.51 | 0.2060 | 860.0 | 699.0 | |
| 0.00 | 1.54 | 0.00 | 0.77 | 12.33 | 250.74 | -1.61 | 10.03 | 0.1581 | 838.0 | 624.6 | |
| 0.00 | 1.45 | 0.00 | 0.74 | 15.90 | 249.96 | -2.39 | 10.51 | 0.2208 | 800.0 | 589.6 | |
| 0.00 | 1.00 | 0.00 | 0.51 | 16.65 | 249.66 | -2.68 | 11.09 | 0.2343 | 866.0 | 740.2 | |
| 0.00 | 0.64 | 0.00 | 0.32 | 16.87 | 249.66 | -2.69 | 10.92 | 0.2380 | 508.0 | 587.3 | |
| 0.00 | 0.91 | 0.00 | 0.46 | 16.36 | 248.55 | -3.79 | 15.81 | 0.2340 | 744.0 | 583.8 | |
| 0.00 | 1.54 | 0.00 | 0.79 | 18.02 | 246.56 | -5.79 | 20.81 | 0.2712 | 835.0 | 561.1 | |
| 0.00 | 0.73 | 0.00 | 0.37 | 15.98 | 246.40 | -5.95 | 24.59 | 0.2406 | 659.0 | 459.8 | |
| 0.00 | 1.54 | 0.00 | 0.79 | 15.57 | 246.12 | -6.23 | 26.35 | 0.2364 | 973.0 | 831.5 | |
| 0.00 | 1.18 | 0.00 | 0.61 | 18.80 | 244.75 | -7.60 | 25.22 | 0.2950 | 849.0 | 659.6 | |
| 0.00 | 1.91 | 0.00 | 0.98 | 15.86 | 242.92 | -9.43 | 36.09 | 0.2688 | 756.0 | 667.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
