SDO HMI 2014-07-06 04:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 107.66 | 676.64 | 57.95 | 364.31 | -19.22 | 256.06 | 3.71 | 188.91 | 0.3925 | 647.9 | 356.5 | |
|
previous
or next observation for the same group /

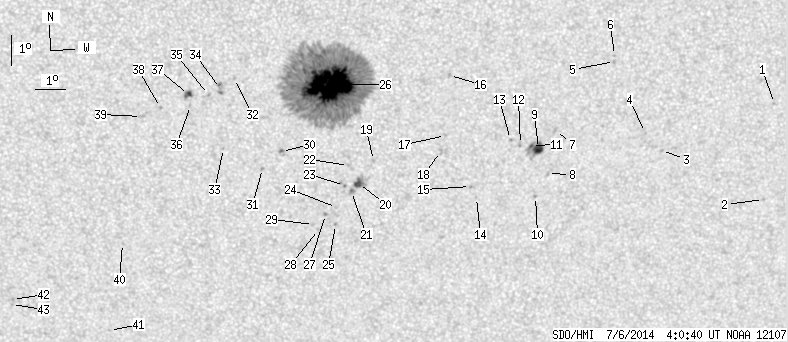

back to the solar disc SDO HMI 2014-07-06 04:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.09 | 0.00 | 0.62 | -19.69 | 270.43 | 18.08 | 216.87 | 0.4890 | 662.0 | 544.2 | |
| 0.00 | 1.09 | 0.00 | 0.63 | -22.91 | 270.46 | 18.11 | 213.01 | 0.5277 | -698.0 | -552.7 | |
| 0.00 | 1.18 | 0.00 | 0.67 | -21.19 | 266.76 | 14.41 | 209.24 | 0.4771 | 705.0 | 601.0 | |
| 0.00 | 0.91 | 0.00 | 0.51 | -20.58 | 266.16 | 13.82 | 208.90 | 0.4645 | 697.0 | 618.4 | |
| 0.00 | 1.91 | 0.00 | 1.04 | -18.21 | 264.94 | 12.59 | 209.42 | 0.4233 | -744.0 | -523.6 | |
| 0.00 | 0.64 | 0.00 | 0.35 | -18.01 | 264.93 | 12.58 | 209.64 | 0.4205 | -786.0 | -734.3 | |
| 0.00 | 2.73 | 0.00 | 1.50 | -20.46 | 263.16 | 10.81 | 203.51 | 0.4422 | 847.0 | 707.0 | |
| 0.00 | 1.64 | 0.00 | 0.91 | -21.91 | 262.99 | 10.65 | 201.88 | 0.4618 | 751.0 | 586.6 | |
| 7.63 | 20.53 | 4.22 | 11.36 | -21.06 | 262.63 | 10.28 | 201.95 | 0.4476 | 920.2 | 489.6 | |
| 0.00 | 1.09 | 0.00 | 0.61 | -22.68 | 262.65 | 10.30 | 200.60 | 0.4709 | 758.0 | 626.5 | |
| 1.00 | -9.00 | 0.55 | -9.00 | -20.96 | 262.39 | 10.05 | 201.58 | 0.4447 | 953.9 | 999999 | |
| 0.00 | 2.09 | 0.00 | 1.15 | -20.92 | 262.03 | 9.68 | 200.90 | 0.4421 | 701.0 | 558.9 | |
| 0.00 | 1.09 | 0.00 | 0.60 | -20.75 | 261.68 | 9.34 | 200.37 | 0.4377 | 562.0 | 582.6 | |
| 0.00 | 1.09 | 0.00 | 0.61 | -22.69 | 260.67 | 8.33 | 196.91 | 0.4612 | -763.0 | -591.3 | |
| 0.00 | 1.00 | 0.00 | 0.56 | -22.32 | 260.45 | 8.10 | 196.74 | 0.4547 | -665.0 | -626.3 | |
| 0.00 | 1.73 | 0.00 | 0.93 | -18.60 | 259.58 | 7.23 | 197.67 | 0.3947 | -949.0 | -710.1 | |
| 0.00 | 1.45 | 0.00 | 0.79 | -20.59 | 259.54 | 7.19 | 196.08 | 0.4247 | -812.0 | -581.4 | |
| 0.00 | 2.54 | 0.00 | 1.40 | -21.13 | 259.40 | 7.05 | 195.42 | 0.4322 | 686.0 | 583.8 | |
| 0.00 | 1.91 | 0.00 | 1.05 | -21.41 | 257.20 | 4.86 | 190.64 | 0.4288 | 658.0 | 429.4 | |
| 4.18 | 13.54 | 2.30 | 7.46 | -22.18 | 256.73 | 4.39 | 189.31 | 0.4395 | -1090.4 | -630.5 | |
| 0.00 | 3.09 | 0.00 | 1.71 | -22.45 | 256.51 | 4.16 | 188.74 | 0.4431 | -900.0 | -731.3 | |
| 0.00 | 0.91 | 0.00 | 0.50 | -21.57 | 256.39 | 4.04 | 188.82 | 0.4292 | -853.0 | -689.5 | |
| 0.00 | 1.36 | 0.00 | 0.75 | -22.25 | 256.27 | 3.93 | 188.33 | 0.4394 | -866.0 | -746.3 | |
| 0.00 | 1.00 | 0.00 | 0.55 | -22.99 | 256.03 | 3.68 | 187.57 | 0.4505 | -726.0 | -658.1 | |
| 0.00 | 0.91 | 0.00 | 0.51 | -23.57 | 256.01 | 3.66 | 187.35 | 0.4594 | -812.0 | -687.5 | |
| 92.12 | 580.42 | 49.42 | 311.31 | -18.87 | 255.74 | 3.39 | 188.40 | 0.3849 | 1492.0 | 444.0 | |
| 0.00 | 1.45 | 0.00 | 0.81 | -23.23 | 255.67 | 3.32 | 186.77 | 0.4534 | -1060.0 | -878.8 | |
| 0.00 | 1.45 | 0.00 | 0.81 | -23.74 | 255.45 | 3.10 | 186.19 | 0.4610 | -714.0 | -547.4 | |
| 0.00 | 1.45 | 0.00 | 0.81 | -23.57 | 255.28 | 2.93 | 185.90 | 0.4580 | -568.0 | -461.7 | |
| 0.00 | 1.73 | 0.00 | 0.94 | -21.09 | 254.18 | 1.83 | 184.12 | 0.4177 | 957.0 | 784.0 | |
| 0.00 | 1.36 | 0.00 | 0.75 | -21.66 | 253.57 | 1.22 | 182.67 | 0.4261 | -1009.0 | -874.9 | |
| 0.00 | 0.73 | 0.00 | 0.39 | -18.67 | 252.65 | 0.30 | 180.75 | 0.3776 | -753.0 | -592.1 | |
| 0.00 | 1.09 | 0.00 | 0.59 | -20.99 | 252.29 | -0.06 | 179.86 | 0.4149 | -726.0 | -516.2 | |
| 0.00 | 5.18 | 0.00 | 2.78 | -18.99 | 252.19 | -0.15 | 179.62 | 0.3829 | -483.0 | -222.5 | |
| 0.00 | 1.18 | 0.00 | 0.63 | -19.19 | 251.81 | -0.54 | 178.67 | 0.3862 | 576.0 | 425.8 | |
| 0.00 | 1.00 | 0.00 | 0.54 | -19.56 | 251.22 | -1.13 | 177.29 | 0.3924 | -746.0 | -559.7 | |
| 2.73 | 5.09 | 1.46 | 2.73 | -19.19 | 251.16 | -1.19 | 177.09 | 0.3866 | -1061.6 | -816.1 | |
| 0.00 | 1.18 | 0.00 | 0.64 | -19.62 | 250.25 | -2.10 | 174.97 | 0.3945 | -921.0 | -737.8 | |
| 0.00 | 2.54 | 0.00 | 1.37 | -19.92 | 249.63 | -2.72 | 173.58 | 0.4003 | -828.0 | -607.3 | |
| 0.00 | 1.27 | 0.00 | 0.71 | -24.22 | 248.90 | -3.44 | 173.26 | 0.4689 | -779.0 | -631.0 | |
| 0.00 | 0.82 | 0.00 | 0.47 | -27.26 | 248.36 | -3.98 | 173.10 | 0.5158 | -690.0 | -579.1 | |
| 0.00 | 1.09 | 0.00 | 0.63 | -26.18 | 245.09 | -7.26 | 167.06 | 0.5084 | -922.0 | -695.8 | |
| 0.00 | 1.09 | 0.00 | 0.63 | -26.36 | 245.05 | -7.30 | 167.07 | 0.5111 | -702.0 | -604.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
