SDO HMI 2014-07-06 04:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 7.36 | 37.70 | 3.84 | 19.63 | -14.14 | 253.89 | 1.54 | 184.86 | 0.3063 | 194.1 | 9.7 | |
|
previous
or next observation for the same group /

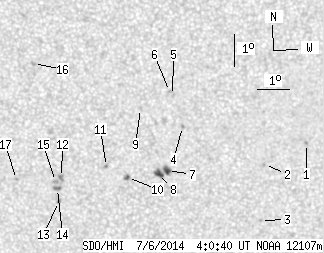

back to the solar disc SDO HMI 2014-07-06 04:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.18 | 0.00 | 0.62 | -13.56 | 259.47 | 7.12 | 202.45 | 0.3168 | 914.0 | 770.3 | |
| 0.00 | 1.54 | 0.00 | 0.81 | -14.22 | 258.16 | 5.81 | 197.96 | 0.3195 | 774.0 | 586.9 | |
| 0.00 | 0.91 | 0.00 | 0.48 | -16.02 | 258.08 | 5.73 | 196.10 | 0.3475 | -864.0 | -738.9 | |
| 0.00 | 1.27 | 0.00 | 0.66 | -12.99 | 255.55 | 3.21 | 190.92 | 0.2888 | 913.0 | 739.2 | |
| 0.00 | 0.73 | 0.00 | 0.37 | -12.00 | 255.23 | 2.88 | 190.48 | 0.2716 | 620.0 | 611.4 | |
| 0.00 | 1.18 | 0.00 | 0.61 | -11.88 | 255.14 | 2.79 | 190.23 | 0.2692 | 815.0 | 706.2 | |
| 3.18 | 11.72 | 1.66 | 6.11 | -14.39 | 255.10 | 2.75 | 188.65 | 0.3106 | 1066.2 | 763.9 | |
| 3.36 | -7.00 | 1.75 | -7.00 | -14.48 | 254.82 | 2.47 | 187.73 | 0.3115 | 982.8 | 999999 | |
| 0.00 | 1.64 | 0.00 | 0.84 | -12.41 | 254.24 | 1.89 | 186.73 | 0.2758 | 745.0 | 555.9 | |
| 0.82 | 2.63 | 0.43 | 1.37 | -14.61 | 253.84 | 1.49 | 184.66 | 0.3118 | 959.3 | 749.4 | |
| 0.00 | 1.00 | 0.00 | 0.52 | -14.26 | 253.18 | 0.83 | 182.65 | 0.3052 | -867.0 | -727.0 | |
| 0.00 | 3.09 | 0.00 | 1.61 | -14.61 | 251.76 | -0.59 | 178.17 | 0.3109 | -1105.0 | -915.0 | |
| 0.00 | 1.64 | 0.00 | 0.86 | -15.38 | 251.66 | -0.68 | 177.95 | 0.3238 | -922.0 | -765.1 | |
| 0.00 | 3.63 | 0.00 | 1.90 | -14.96 | 251.63 | -0.71 | 177.81 | 0.3169 | -970.0 | -807.6 | |
| 0.00 | 2.36 | 0.00 | 1.23 | -14.73 | 251.57 | -0.78 | 177.59 | 0.3132 | -1147.0 | -860.2 | |
| 0.00 | 2.00 | 0.00 | 1.02 | -10.99 | 250.91 | -1.44 | 174.33 | 0.2511 | 771.0 | 678.9 | |
| 0.00 | 1.18 | 0.00 | 0.62 | -14.67 | 250.34 | -2.00 | 173.78 | 0.3136 | -881.0 | -683.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
