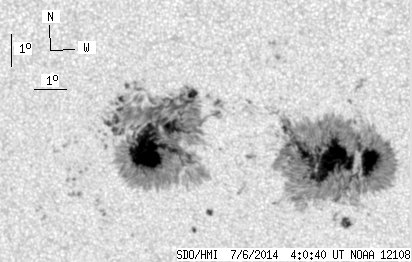

SDO HMI 2014-07-06 04:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 310.25 | 1684.73 | 161.08 | 875.40 | -7.31 | 238.75 | -13.60 | 129.19 | 0.3006 | 20.7 | -5.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-06 04:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 36.25 | 805.08 | 18.56 | 413.78 | -7.62 | 242.73 | -9.62 | 139.01 | 0.2536 | 1424.2 | 468.8 | |
| 0.00 | 1.36 | 0.00 | 0.70 | -9.27 | 242.66 | -9.69 | 142.78 | 0.2759 | -838.0 | -598.7 | |
| 0.00 | 8.63 | 0.00 | 4.39 | -5.24 | 242.50 | -9.85 | 131.30 | 0.2277 | -724.0 | -629.7 | |
| 3.72 | -1.00 | 1.91 | -1.00 | -7.15 | 242.43 | -9.92 | 136.90 | 0.2512 | 1077.7 | 999999 | |
| 5.18 | -1.00 | 2.66 | -1.00 | -8.12 | 242.22 | -10.13 | 138.83 | 0.2656 | 801.7 | 999999 | |
| 10.45 | -1.00 | 5.36 | -1.00 | -7.69 | 242.11 | -10.24 | 137.40 | 0.2615 | 1261.2 | 999999 | |
| 0.00 | 1.54 | 0.00 | 0.79 | -5.77 | 242.15 | -10.20 | 132.00 | 0.2381 | 870.0 | 727.2 | |
| 5.90 | 9.08 | 3.05 | 4.70 | -9.53 | 241.96 | -10.39 | 141.43 | 0.2865 | 970.6 | 731.7 | |
| 41.70 | -1.00 | 21.40 | -1.00 | -7.38 | 241.68 | -10.67 | 135.41 | 0.2628 | 1489.8 | 999999 | |
| 0.00 | 3.54 | 0.00 | 1.83 | -9.37 | 241.62 | -10.73 | 140.18 | 0.2882 | 597.0 | 641.6 | |
| 16.53 | -1.00 | 8.51 | -1.00 | -7.79 | 241.41 | -10.93 | 135.79 | 0.2707 | 1220.5 | 999999 | |
| 10.17 | -1.00 | 5.24 | -1.00 | -8.07 | 241.25 | -11.10 | 136.09 | 0.2760 | 1066.2 | 999999 | |
| 0.00 | 0.82 | 0.00 | 0.42 | -9.13 | 241.18 | -11.16 | 138.50 | 0.2898 | 485.0 | 375.7 | |
| 1.36 | -1.00 | 0.70 | -1.00 | -7.26 | 241.18 | -11.17 | 133.78 | 0.2674 | 1139.5 | 999999 | |
| 4.81 | -1.00 | 2.48 | -1.00 | -7.54 | 241.14 | -11.21 | 134.44 | 0.2711 | 1144.1 | 999999 | |
| 6.09 | -1.00 | 3.14 | -1.00 | -8.10 | 241.00 | -11.35 | 135.54 | 0.2794 | 1015.7 | 999999 | |
| 18.35 | -1.00 | 9.45 | -1.00 | -7.48 | 240.76 | -11.58 | 133.34 | 0.2750 | 1103.5 | 999999 | |
| 1.45 | -1.00 | 0.75 | -1.00 | -7.11 | 240.71 | -11.64 | 132.20 | 0.2714 | 1007.8 | 999999 | |
| 1.45 | -1.00 | 0.75 | -1.00 | -8.14 | 240.68 | -11.67 | 134.84 | 0.2835 | 672.3 | 999999 | |
| 1.18 | -1.00 | 0.61 | -1.00 | -7.12 | 240.21 | -12.14 | 131.02 | 0.2778 | 728.2 | 999999 | |
| 2.09 | -1.00 | 1.08 | -1.00 | -6.62 | 240.13 | -12.22 | 129.45 | 0.2735 | 869.6 | 999999 | |
| 0.00 | 0.73 | 0.00 | 0.37 | -4.55 | 240.14 | -12.20 | 123.09 | 0.2526 | 909.0 | 773.1 | |
| 0.00 | 1.27 | 0.00 | 0.65 | -5.70 | 239.99 | -12.35 | 126.41 | 0.2657 | 926.0 | 650.1 | |
| 0.00 | 2.45 | 0.00 | 1.26 | -4.40 | 239.93 | -12.42 | 122.13 | 0.2544 | 959.0 | 859.9 | |
| 0.00 | 2.45 | 0.00 | 1.26 | -6.81 | 239.87 | -12.48 | 129.39 | 0.2788 | 575.0 | 486.4 | |
| 0.00 | 3.36 | 0.00 | 1.75 | -8.92 | 239.77 | -12.58 | 134.63 | 0.3036 | -621.0 | -407.6 | |
| 0.00 | 3.72 | 0.00 | 1.92 | -6.13 | 239.80 | -12.55 | 127.27 | 0.2728 | 572.0 | 517.4 | |
| 0.00 | 2.91 | 0.00 | 1.49 | -3.97 | 239.78 | -12.57 | 120.37 | 0.2527 | 826.0 | 668.0 | |
| 0.00 | 1.91 | 0.00 | 0.98 | -5.98 | 239.55 | -12.80 | 126.29 | 0.2746 | 65.0 | 84.4 | |
| 0.00 | 4.27 | 0.00 | 2.21 | -7.50 | 239.00 | -13.35 | 129.38 | 0.2974 | -786.0 | -585.1 | |
| 0.00 | 1.91 | 0.00 | 0.98 | -5.80 | 239.02 | -13.33 | 124.66 | 0.2801 | 757.0 | 541.1 | |
| 0.00 | 5.63 | 0.00 | 2.94 | -8.50 | 238.71 | -13.64 | 131.30 | 0.3117 | 745.0 | 508.2 | |
| 0.00 | 0.73 | 0.00 | 0.38 | -5.99 | 238.51 | -13.84 | 124.22 | 0.2890 | 322.0 | 289.0 | |
| 0.00 | 0.73 | 0.00 | 0.38 | -8.38 | 238.18 | -14.17 | 129.93 | 0.3172 | -520.0 | -353.0 | |
| 0.00 | 1.27 | 0.00 | 0.66 | -7.27 | 238.06 | -14.29 | 126.86 | 0.3074 | -638.0 | -523.5 | |
| 1.09 | 6.90 | 0.56 | 3.58 | -5.84 | 238.01 | -14.34 | 122.85 | 0.2946 | -1146.8 | -681.5 | |
| 1.91 | 3.82 | 1.00 | 2.00 | -9.27 | 237.63 | -14.72 | 130.96 | 0.3335 | 884.7 | 671.8 | |
| 0.00 | 2.18 | 0.00 | 1.13 | -5.66 | 237.73 | -14.62 | 121.83 | 0.2969 | -1054.0 | -891.9 | |
| 0.00 | 1.18 | 0.00 | 0.62 | -7.27 | 237.58 | -14.77 | 125.98 | 0.3138 | -219.0 | -227.8 | |
| 1.00 | 2.27 | 0.53 | 1.20 | -9.84 | 237.12 | -15.22 | 131.29 | 0.3458 | -1033.2 | -822.7 | |
| 6.18 | 760.75 | 3.21 | 399.37 | -5.61 | 237.22 | -15.13 | 120.80 | 0.3037 | 1122.2 | -445.2 | |
| 2.82 | -41.00 | 1.47 | -41.00 | -5.83 | 237.09 | -15.26 | 121.20 | 0.3074 | -338.8 | 999999 | |
| 2.36 | -41.00 | 1.24 | -41.00 | -7.53 | 237.03 | -15.32 | 125.65 | 0.3237 | -983.2 | 999999 | |
| 2.45 | -41.00 | 1.29 | -41.00 | -7.35 | 236.56 | -15.79 | 124.38 | 0.3284 | -1068.5 | 999999 | |
| 15.63 | -41.00 | 8.17 | -41.00 | -6.64 | 236.52 | -15.83 | 122.47 | 0.3225 | -1345.8 | 999999 | |
| 1.64 | -41.00 | 0.85 | -41.00 | -5.84 | 236.55 | -15.80 | 120.34 | 0.3152 | 494.3 | 999999 | |
| 3.00 | -41.00 | 1.57 | -41.00 | -6.43 | 236.31 | -16.04 | 121.56 | 0.3237 | -1163.8 | 999999 | |
| 0.64 | -41.00 | 0.33 | -41.00 | -5.78 | 236.29 | -16.05 | 119.79 | 0.3184 | 710.7 | 999999 | |
| 2.09 | -41.00 | 1.09 | -41.00 | -6.46 | 236.11 | -16.24 | 121.34 | 0.3267 | -1165.7 | 999999 | |
| 87.03 | -41.00 | 45.82 | -41.00 | -7.33 | 235.73 | -16.62 | 122.98 | 0.3396 | -1408.5 | 999999 | |
| 0.00 | 0.73 | 0.00 | 0.39 | -10.46 | 235.51 | -16.84 | 129.80 | 0.3723 | -552.0 | -506.5 | |
| 0.00 | 1.36 | 0.00 | 0.71 | -5.20 | 235.67 | -16.67 | 117.28 | 0.3229 | -770.0 | -682.8 | |
| 1.00 | -41.00 | 0.53 | -41.00 | -6.63 | 235.47 | -16.88 | 120.78 | 0.3372 | -1013.9 | 999999 | |
| 0.00 | 1.09 | 0.00 | 0.58 | -9.99 | 235.12 | -17.23 | 128.17 | 0.3726 | -877.0 | -740.7 | |
| 1.09 | -41.00 | 0.57 | -41.00 | -5.36 | 235.12 | -17.22 | 116.97 | 0.3322 | -1051.5 | 999999 | |
| 0.64 | -41.00 | 0.34 | -41.00 | -6.73 | 234.95 | -17.40 | 120.28 | 0.3454 | -1183.9 | 999999 | |
| 2.18 | -41.00 | 1.15 | -41.00 | -5.80 | 234.95 | -17.40 | 117.89 | 0.3380 | -1142.6 | 999999 | |
| 1.73 | -41.00 | 0.91 | -41.00 | -6.11 | 234.91 | -17.44 | 118.64 | 0.3410 | -1201.9 | 999999 | |
| 0.91 | -41.00 | 0.48 | -41.00 | -6.85 | 234.88 | -17.47 | 120.50 | 0.3474 | -1078.6 | 999999 | |
| 4.09 | -41.00 | 2.16 | -41.00 | -6.42 | 234.77 | -17.58 | 119.25 | 0.3455 | -1162.3 | 999999 | |
| 2.27 | -41.00 | 1.20 | -41.00 | -6.73 | 234.69 | -17.66 | 119.93 | 0.3491 | -994.0 | 999999 | |
| 1.82 | -41.00 | 0.96 | -41.00 | -6.55 | 234.50 | -17.84 | 119.21 | 0.3503 | -867.7 | 999999 | |
| 0.00 | 1.82 | 0.00 | 0.96 | -7.26 | 234.38 | -17.97 | 120.80 | 0.3578 | -932.0 | -772.9 | |
| 0.00 | 1.00 | 0.00 | 0.53 | -6.89 | 234.39 | -17.95 | 119.91 | 0.3546 | -871.0 | -667.7 | |
| 0.00 | 3.36 | 0.00 | 1.80 | -9.32 | 234.18 | -18.17 | 125.27 | 0.3784 | -737.0 | -740.4 | |
| 0.00 | 1.36 | 0.00 | 0.72 | -7.08 | 234.29 | -18.06 | 120.23 | 0.3576 | -809.0 | -649.6 | |
| 0.00 | 0.82 | 0.00 | 0.43 | -6.80 | 234.20 | -18.14 | 119.43 | 0.3566 | -753.0 | -643.7 | |
| 0.00 | 3.82 | 0.00 | 2.04 | -9.01 | 234.03 | -18.31 | 124.37 | 0.3776 | -805.0 | -686.5 | |
| 0.00 | 1.36 | 0.00 | 0.72 | -6.96 | 234.10 | -18.25 | 119.68 | 0.3593 | -601.0 | -511.3 | |
| 0.00 | 0.73 | 0.00 | 0.39 | -7.80 | 233.84 | -18.51 | 121.33 | 0.3698 | -763.0 | -738.9 | |
| 0.00 | 1.54 | 0.00 | 0.82 | -6.71 | 233.88 | -18.46 | 118.79 | 0.3604 | -669.0 | -543.2 | |
| 0.00 | 1.45 | 0.00 | 0.78 | -7.99 | 233.73 | -18.62 | 121.62 | 0.3729 | -871.0 | -750.0 | |
| 0.00 | 1.18 | 0.00 | 0.63 | -8.05 | 233.53 | -18.82 | 121.51 | 0.3762 | -953.0 | -791.6 | |
| 0.00 | 1.64 | 0.00 | 0.87 | -7.13 | 233.41 | -18.94 | 119.18 | 0.3704 | -841.0 | -630.6 | |
| 0.00 | 5.81 | 0.00 | 3.12 | -8.78 | 233.30 | -19.05 | 122.81 | 0.3854 | -606.0 | -600.1 | |
| 0.00 | 1.27 | 0.00 | 0.68 | -8.31 | 233.29 | -19.06 | 121.76 | 0.3816 | -908.0 | -784.4 | |
| 0.00 | 1.45 | 0.00 | 0.78 | -8.00 | 233.14 | -19.20 | 120.86 | 0.3811 | -650.0 | -539.9 | |
| 0.00 | 1.00 | 0.00 | 0.54 | -8.34 | 233.06 | -19.29 | 121.53 | 0.3851 | -621.0 | -541.9 | |
| 0.00 | 1.82 | 0.00 | 0.97 | -7.26 | 233.05 | -19.30 | 119.02 | 0.3765 | -767.0 | -692.7 | |
| 0.00 | 2.00 | 0.00 | 1.07 | -7.45 | 232.75 | -19.60 | 119.09 | 0.3823 | -693.0 | -576.0 | |
| 0.00 | 2.63 | 0.00 | 1.43 | -9.51 | 232.24 | -20.11 | 123.00 | 0.4060 | -758.0 | -643.3 | |
| 0.00 | 3.00 | 0.00 | 1.62 | -9.24 | 232.12 | -20.22 | 122.26 | 0.4052 | -659.0 | -552.1 | |
| 0.00 | 1.00 | 0.00 | 0.54 | -7.90 | 231.94 | -20.41 | 119.13 | 0.3971 | -516.0 | -352.1 | |
| 0.00 | 1.00 | 0.00 | 0.54 | -8.66 | 231.23 | -21.11 | 119.96 | 0.4128 | -646.0 | -563.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
