SDO HMI 2014-07-06 04:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 8.53 | 49.40 | 4.77 | 27.37 | -15.48 | 233.91 | -18.44 | 136.79 | 0.4453 | -157.4 | 64.9 | |
|
previous
or next observation for the same group /

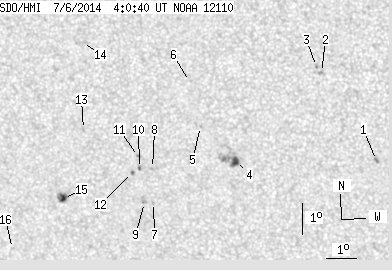

back to the solar disc SDO HMI 2014-07-06 04:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.00 | 0.00 | 1.07 | -15.57 | 240.47 | -11.88 | 148.55 | 0.3815 | 1030.0 | 814.0 | |
| 0.00 | 2.45 | 0.00 | 1.30 | -12.77 | 238.86 | -13.49 | 140.64 | 0.3601 | 895.0 | 637.4 | |
| 0.00 | 1.18 | 0.00 | 0.63 | -12.59 | 238.71 | -13.64 | 139.98 | 0.3594 | 782.0 | 678.5 | |
| 4.09 | 18.44 | 2.24 | 10.09 | -15.66 | 235.86 | -16.49 | 139.91 | 0.4261 | 932.8 | 664.4 | |
| 0.00 | 1.18 | 0.00 | 0.65 | -14.56 | 234.80 | -17.55 | 136.35 | 0.4246 | 810.0 | 666.8 | |
| 0.00 | 0.36 | 0.00 | 0.20 | -13.13 | 234.55 | -17.80 | 133.45 | 0.4117 | 371.0 | 367.0 | |
| 0.00 | 1.27 | 0.00 | 0.71 | -17.04 | 232.99 | -19.36 | 137.54 | 0.4714 | -696.0 | -613.8 | |
| 0.00 | 1.36 | 0.00 | 0.76 | -15.94 | 233.07 | -19.28 | 135.96 | 0.4585 | -737.0 | -703.7 | |
| 0.00 | 1.91 | 0.00 | 1.07 | -17.05 | 232.68 | -19.67 | 137.11 | 0.4747 | -839.0 | -787.6 | |
| 0.36 | 1.45 | 0.20 | 0.81 | -15.95 | 232.63 | -19.72 | 135.34 | 0.4634 | -894.8 | -818.3 | |
| 0.00 | 1.45 | 0.00 | 0.81 | -15.56 | 232.64 | -19.71 | 134.73 | 0.4592 | -944.0 | -748.6 | |
| 0.45 | 1.91 | 0.25 | 1.07 | -16.08 | 232.38 | -19.97 | 135.20 | 0.4675 | -972.2 | -764.9 | |
| 0.00 | 1.54 | 0.00 | 0.87 | -14.73 | 230.87 | -21.48 | 130.97 | 0.4709 | -577.0 | -402.9 | |
| 0.00 | 4.00 | 0.00 | 2.21 | -11.96 | 231.10 | -21.25 | 126.37 | 0.4422 | -51.0 | -151.5 | |
| 3.63 | 7.90 | 2.08 | 4.53 | -16.98 | 229.92 | -22.43 | 133.33 | 0.5036 | -1041.1 | -762.0 | |
| 0.00 | 1.00 | 0.00 | 0.59 | -18.66 | 227.90 | -24.45 | 133.40 | 0.5417 | -633.0 | -499.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
