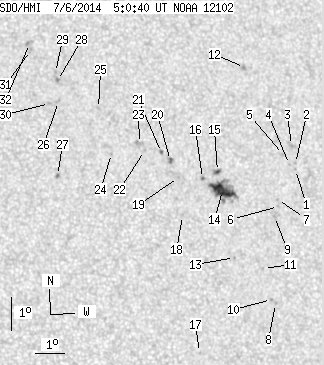

SDO HMI 2014-07-06 05:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 21.08 | 86.05 | 11.90 | 48.34 | 11.57 | 278.86 | 27.06 | 288.61 | 0.4726 | -474.8 | -291.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-06 05:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.82 | 0.00 | 0.47 | 11.41 | 282.39 | 30.59 | 286.42 | 0.5221 | -727.0 | -613.3 | |
| 0.00 | 1.00 | 0.00 | 0.58 | 11.59 | 282.41 | 30.61 | 286.76 | 0.5230 | -727.0 | -597.3 | |
| 0.00 | 3.82 | 0.00 | 2.22 | 12.15 | 282.34 | 30.54 | 287.83 | 0.5239 | -692.0 | -570.9 | |
| 0.00 | 0.82 | 0.00 | 0.47 | 11.57 | 282.19 | 30.39 | 286.80 | 0.5198 | -737.0 | -580.2 | |
| 0.00 | 1.36 | 0.00 | 0.79 | 11.88 | 282.02 | 30.22 | 287.47 | 0.5183 | -712.0 | -605.5 | |
| 0.00 | 1.09 | 0.00 | 0.63 | 10.29 | 281.65 | 29.85 | 284.57 | 0.5081 | -691.0 | -557.6 | |
| 0.00 | 0.73 | 0.00 | 0.42 | 10.50 | 281.64 | 29.84 | 285.00 | 0.5085 | -791.0 | -627.4 | |
| 0.00 | 1.27 | 0.00 | 0.72 | 7.33 | 281.28 | 29.48 | 278.82 | 0.4959 | -489.0 | -505.9 | |
| 0.00 | 1.00 | 0.00 | 0.57 | 9.99 | 281.48 | 29.68 | 284.05 | 0.5047 | -830.0 | -720.9 | |
| 0.00 | 0.91 | 0.00 | 0.52 | 7.45 | 281.15 | 29.35 | 279.10 | 0.4941 | -758.0 | -663.1 | |
| 0.00 | 0.73 | 0.00 | 0.41 | 8.41 | 280.94 | 29.14 | 281.08 | 0.4928 | -633.0 | -507.9 | |
| 0.00 | 2.63 | 0.00 | 1.52 | 14.61 | 280.98 | 29.18 | 293.11 | 0.5150 | -796.0 | -634.5 | |
| 0.00 | 0.91 | 0.00 | 0.51 | 8.77 | 279.95 | 28.15 | 282.13 | 0.4789 | -662.0 | -539.9 | |
| 19.08 | 36.70 | 10.77 | 20.73 | 10.84 | 279.72 | 27.92 | 286.46 | 0.4815 | -999.7 | -524.7 | |
| 1.18 | 3.45 | 0.67 | 1.95 | 11.43 | 279.61 | 27.81 | 287.71 | 0.4820 | -842.4 | -667.8 | |
| 0.00 | 1.09 | 0.00 | 0.61 | 11.23 | 279.06 | 27.26 | 287.57 | 0.4732 | -969.0 | -914.7 | |
| 0.00 | 1.00 | 0.00 | 0.55 | 5.91 | 278.54 | 26.74 | 276.34 | 0.4522 | -485.0 | -464.3 | |
| 0.00 | 1.18 | 0.00 | 0.66 | 10.11 | 278.26 | 26.46 | 285.62 | 0.4573 | -604.0 | -443.5 | |
| 0.00 | 0.64 | 0.00 | 0.35 | 11.28 | 278.23 | 26.43 | 288.12 | 0.4612 | -949.0 | -886.1 | |
| 0.82 | 2.73 | 0.46 | 1.52 | 11.81 | 278.01 | 26.21 | 289.36 | 0.4600 | -895.9 | -749.9 | |
| 0.00 | 1.82 | 0.00 | 1.01 | 12.07 | 277.72 | 25.92 | 290.06 | 0.4570 | -701.0 | -630.5 | |
| 0.00 | 0.91 | 0.00 | 0.50 | 12.14 | 277.14 | 25.34 | 290.59 | 0.4488 | -619.0 | -494.5 | |
| 0.00 | 3.91 | 0.00 | 2.16 | 12.36 | 276.99 | 25.19 | 291.16 | 0.4477 | -598.0 | -509.5 | |
| 0.00 | 0.91 | 0.00 | 0.50 | 12.08 | 276.00 | 24.20 | 291.22 | 0.4318 | 626.0 | 529.7 | |
| 0.00 | 1.54 | 0.00 | 0.85 | 13.48 | 275.70 | 23.90 | 294.50 | 0.4348 | 804.0 | 664.0 | |
| 0.00 | 2.00 | 0.00 | 1.09 | 13.73 | 274.36 | 22.56 | 296.19 | 0.4171 | 748.0 | 659.5 | |
| 0.00 | 1.91 | 0.00 | 1.03 | 11.45 | 274.11 | 22.31 | 291.15 | 0.4006 | 838.0 | 727.3 | |
| 0.00 | 1.54 | 0.00 | 0.84 | 14.38 | 274.39 | 22.59 | 297.59 | 0.4217 | 991.0 | 756.3 | |
| 0.00 | 1.00 | 0.00 | 0.55 | 14.63 | 274.35 | 22.55 | 298.17 | 0.4227 | 726.0 | 625.7 | |
| 0.00 | 1.45 | 0.00 | 0.79 | 13.67 | 274.05 | 22.25 | 296.35 | 0.4123 | 819.0 | 662.8 | |
| 0.00 | 2.09 | 0.00 | 1.14 | 15.33 | 273.58 | 21.78 | 300.46 | 0.4169 | 757.0 | 582.9 | |
| 0.00 | 3.09 | 0.00 | 1.68 | 15.55 | 273.57 | 21.77 | 300.94 | 0.4183 | 605.0 | 610.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
