SDO HMI 2014-07-06 05:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 23.53 | 0.00 | 11.90 | 6.19 | 256.83 | 5.03 | 118.06 | 0.1400 | 735.0 | 670.9 | |
|
previous
or next observation for the same group /

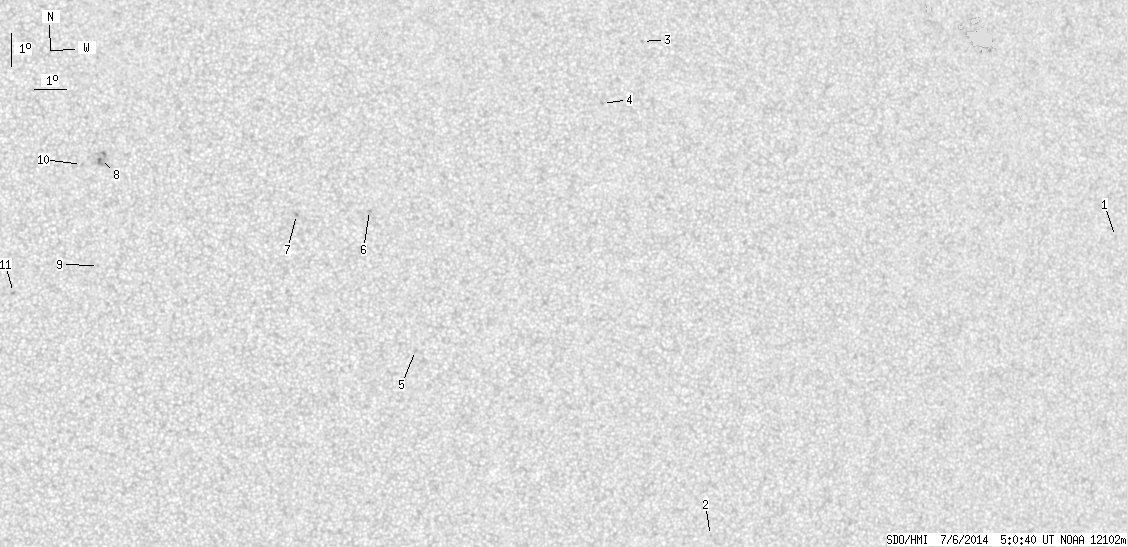

back to the solar disc SDO HMI 2014-07-06 05:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.00 | 0.00 | 0.59 | 4.67 | 284.04 | 32.24 | 273.33 | 0.5347 | -591.0 | -539.5 | |
| 0.00 | 0.91 | 0.00 | 0.48 | -4.10 | 270.26 | 18.46 | 247.97 | 0.3422 | 644.0 | 540.9 | |
| 0.00 | 1.00 | 0.00 | 0.52 | 11.04 | 268.38 | 16.58 | 295.74 | 0.3122 | 783.0 | 593.0 | |
| 0.00 | 1.54 | 0.00 | 0.80 | 9.16 | 266.99 | 15.19 | 291.53 | 0.2793 | 937.0 | 665.6 | |
| 0.00 | 1.73 | 0.00 | 0.87 | 1.71 | 260.95 | 9.15 | 259.59 | 0.1624 | 888.0 | 671.6 | |
| 0.00 | 1.45 | 0.00 | 0.73 | 5.99 | 259.58 | 7.78 | 288.58 | 0.1427 | 876.0 | 691.6 | |
| 0.00 | 1.18 | 0.00 | 0.59 | 5.88 | 257.33 | 5.53 | 294.26 | 0.1056 | 906.0 | 721.4 | |
| 0.00 | 11.45 | 0.00 | 5.69 | 7.61 | 251.35 | -0.45 | 6.13 | 0.0739 | 927.0 | 793.8 | |
| 0.00 | 1.18 | 0.00 | 0.59 | 4.35 | 251.25 | -0.55 | 30.43 | 0.0189 | 906.0 | 644.5 | |
| 0.00 | 0.45 | 0.00 | 0.23 | 7.43 | 250.73 | -1.07 | 14.81 | 0.0727 | 832.0 | 613.8 | |
| 0.00 | 1.64 | 0.00 | 0.81 | 3.53 | 248.66 | -3.14 | 88.02 | 0.0550 | 977.0 | 793.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
