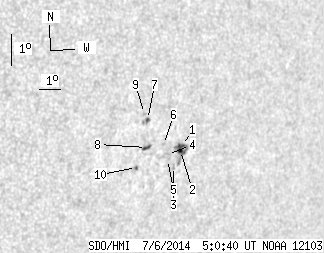

SDO HMI 2014-07-06 05:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 5.55 | 34.43 | 4.16 | 26.08 | -12.75 | 298.51 | 46.71 | 249.87 | 0.7583 | 94.6 | 227.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-06 05:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.27 | 16.72 | 0.21 | 12.83 | -12.77 | 299.19 | 47.39 | 250.08 | 0.7657 | 729.7 | 525.0 | |
| 1.64 | -1.00 | 1.25 | -1.00 | -12.93 | 299.14 | 47.34 | 249.87 | 0.7656 | 805.2 | 999999 | |
| 0.00 | 1.82 | 0.00 | 1.39 | -13.42 | 298.94 | 47.14 | 249.17 | 0.7651 | 528.0 | 481.6 | |
| 0.00 | 2.54 | 0.00 | 1.93 | -13.03 | 298.56 | 46.76 | 249.54 | 0.7598 | 200.0 | 214.1 | |
| 0.00 | 1.00 | 0.00 | 0.76 | -13.19 | 298.60 | 46.80 | 249.35 | 0.7608 | 191.0 | 179.7 | |
| 0.00 | 1.45 | 0.00 | 1.10 | -12.70 | 298.30 | 46.50 | 249.86 | 0.7560 | 226.0 | 177.2 | |
| 0.91 | 4.09 | 0.67 | 3.02 | -11.87 | 297.39 | 45.59 | 250.60 | 0.7434 | -642.0 | -526.8 | |
| 2.00 | 3.63 | 1.49 | 2.70 | -12.76 | 297.54 | 45.74 | 249.51 | 0.7480 | -483.5 | -320.4 | |
| 0.00 | 1.64 | 0.00 | 1.20 | -11.67 | 297.21 | 45.41 | 250.79 | 0.7408 | -662.0 | -481.1 | |
| 0.73 | 1.54 | 0.54 | 1.15 | -13.38 | 297.24 | 45.44 | 248.59 | 0.7468 | -482.9 | -333.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
