SDO HMI 2014-07-06 05:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 118.48 | 704.58 | 63.81 | 379.75 | -19.25 | 255.91 | 4.11 | 189.85 | 0.3941 | 618.8 | 330.5 | |
|
previous
or next observation for the same group /

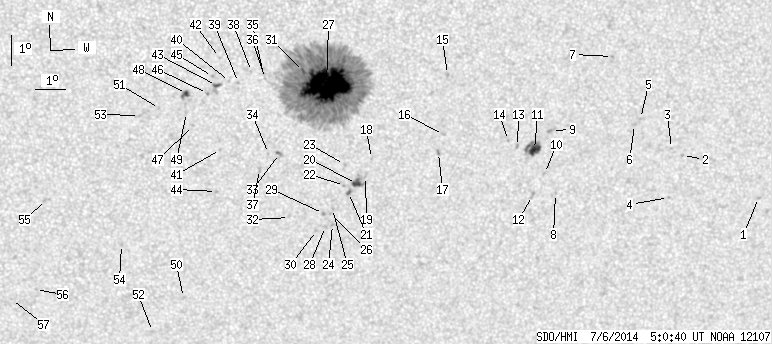

back to the solar disc SDO HMI 2014-07-06 05:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.27 | 0.00 | 0.74 | -22.85 | 270.39 | 18.59 | 213.75 | 0.5309 | -607.0 | -564.9 | |
| 0.00 | 1.18 | 0.00 | 0.67 | -21.37 | 267.59 | 15.79 | 211.26 | 0.4901 | 596.0 | 427.8 | |
| 0.00 | 0.91 | 0.00 | 0.51 | -21.13 | 267.19 | 15.39 | 210.90 | 0.4839 | 793.0 | 622.5 | |
| 0.00 | 0.82 | 0.00 | 0.47 | -22.78 | 267.27 | 15.47 | 209.22 | 0.5057 | 702.0 | 592.1 | |
| 0.00 | 0.91 | 0.00 | 0.51 | -20.11 | 266.04 | 14.24 | 210.16 | 0.4616 | 712.0 | 569.1 | |
| 0.00 | 1.91 | 0.00 | 1.07 | -20.30 | 265.86 | 14.06 | 209.62 | 0.4628 | 768.0 | 679.5 | |
| 0.00 | 0.91 | 0.00 | 0.50 | -18.04 | 264.94 | 13.14 | 210.67 | 0.4255 | -805.0 | -672.4 | |
| 0.00 | 1.18 | 0.00 | 0.67 | -22.59 | 263.41 | 11.61 | 203.01 | 0.4771 | 565.0 | 512.4 | |
| 0.00 | 3.54 | 0.00 | 1.96 | -20.46 | 263.10 | 11.30 | 204.45 | 0.4454 | 890.0 | 669.7 | |
| 0.00 | 1.27 | 0.00 | 0.71 | -21.90 | 262.98 | 11.18 | 202.86 | 0.4650 | 705.0 | 541.9 | |
| 8.36 | 18.90 | 4.64 | 10.48 | -21.09 | 262.58 | 10.78 | 202.87 | 0.4511 | 907.8 | 716.2 | |
| 0.00 | 3.00 | 0.00 | 1.68 | -22.64 | 262.64 | 10.84 | 201.59 | 0.4734 | 701.0 | 534.5 | |
| 0.00 | 1.73 | 0.00 | 0.95 | -20.98 | 262.01 | 10.21 | 201.87 | 0.4461 | 821.0 | 620.1 | |
| 0.00 | 0.73 | 0.00 | 0.40 | -20.78 | 261.70 | 9.90 | 201.45 | 0.4414 | 805.0 | 666.5 | |
| 0.00 | 1.45 | 0.00 | 0.78 | -18.57 | 259.58 | 7.78 | 198.94 | 0.3970 | -810.0 | -674.2 | |
| 0.00 | 1.45 | 0.00 | 0.80 | -20.55 | 259.54 | 7.74 | 197.27 | 0.4268 | -812.0 | -627.7 | |
| 0.00 | 2.18 | 0.00 | 1.20 | -21.16 | 259.41 | 7.61 | 196.56 | 0.4352 | 888.0 | 670.8 | |
| 0.00 | 0.91 | 0.00 | 0.50 | -21.34 | 257.21 | 5.41 | 191.85 | 0.4295 | 413.0 | 414.6 | |
| 0.00 | 0.55 | 0.00 | 0.30 | -21.94 | 257.04 | 5.24 | 191.18 | 0.4383 | -294.0 | -242.3 | |
| 4.00 | 9.54 | 2.20 | 5.26 | -22.18 | 256.75 | 4.95 | 190.47 | 0.4410 | -1079.1 | -730.0 | |
| 0.82 | 2.82 | 0.45 | 1.56 | -22.48 | 256.49 | 4.69 | 189.82 | 0.4450 | -872.6 | -603.2 | |
| 0.00 | 1.18 | 0.00 | 0.65 | -22.24 | 256.35 | 4.55 | 189.63 | 0.4410 | -865.0 | -722.4 | |
| 0.00 | 1.36 | 0.00 | 0.75 | -21.53 | 256.33 | 4.53 | 189.88 | 0.4299 | -826.0 | -658.7 | |
| 0.00 | 1.73 | 0.00 | 0.96 | -23.57 | 256.00 | 4.20 | 188.41 | 0.4605 | -833.0 | -604.6 | |
| 0.00 | 1.45 | 0.00 | 0.81 | -23.02 | 255.98 | 4.18 | 188.57 | 0.4521 | -817.0 | -488.8 | |
| 0.00 | 0.91 | 0.00 | 0.50 | -23.19 | 255.92 | 4.12 | 188.38 | 0.4545 | -855.0 | -673.3 | |
| 100.03 | 596.00 | 53.69 | 319.90 | -18.87 | 255.67 | 3.87 | 189.57 | 0.3861 | 1496.7 | 409.8 | |
| 0.00 | 1.73 | 0.00 | 0.96 | -23.64 | 255.76 | 3.96 | 187.93 | 0.4610 | -609.0 | -481.8 | |
| 0.00 | 1.45 | 0.00 | 0.81 | -23.19 | 255.68 | 3.88 | 187.92 | 0.4540 | -991.0 | -862.2 | |
| 0.00 | 1.00 | 0.00 | 0.56 | -23.77 | 255.47 | 3.67 | 187.30 | 0.4625 | -651.0 | -580.2 | |
| 2.18 | -27.00 | 1.17 | -27.00 | -18.44 | 254.93 | 3.13 | 187.91 | 0.3774 | 1144.4 | 999999 | |
| 0.00 | 0.64 | 0.00 | 0.35 | -23.32 | 254.56 | 2.76 | 185.61 | 0.4540 | -649.0 | -456.0 | |
| 0.00 | 2.91 | 0.00 | 1.59 | -21.15 | 254.19 | 2.39 | 185.34 | 0.4194 | 995.0 | 715.1 | |
| 0.00 | 0.73 | 0.00 | 0.40 | -21.15 | 253.83 | 2.03 | 184.54 | 0.4189 | 581.0 | 523.2 | |
| 0.00 | 0.91 | 0.00 | 0.49 | -18.66 | 253.67 | 1.87 | 184.71 | 0.3788 | 666.0 | 504.8 | |
| 0.00 | 1.18 | 0.00 | 0.63 | -18.50 | 253.64 | 1.84 | 184.66 | 0.3761 | 182.0 | 215.5 | |
| 0.00 | 2.54 | 0.00 | 1.39 | -21.69 | 253.54 | 1.74 | 183.81 | 0.4271 | -917.0 | -704.8 | |
| 0.00 | 0.73 | 0.00 | 0.39 | -18.43 | 253.25 | 1.45 | 183.70 | 0.3746 | -735.0 | -573.8 | |
| 0.00 | 1.09 | 0.00 | 0.58 | -18.79 | 252.84 | 1.04 | 182.59 | 0.3800 | 582.0 | 440.2 | |
| 0.00 | 0.82 | 0.00 | 0.44 | -18.76 | 252.55 | 0.75 | 181.87 | 0.3793 | -638.0 | -488.8 | |
| 0.00 | 1.00 | 0.00 | 0.54 | -21.01 | 252.26 | 0.46 | 181.04 | 0.4155 | -703.0 | -501.9 | |
| 0.00 | 0.73 | 0.00 | 0.39 | -17.97 | 252.22 | 0.42 | 181.11 | 0.3663 | -604.0 | -557.4 | |
| 1.27 | 6.45 | 0.68 | 3.46 | -18.89 | 252.13 | 0.33 | 180.82 | 0.3813 | -925.9 | -334.5 | |
| 0.00 | 1.45 | 0.00 | 0.80 | -22.43 | 252.13 | 0.33 | 180.70 | 0.4379 | -740.0 | -596.2 | |
| 0.00 | 1.27 | 0.00 | 0.68 | -18.59 | 252.00 | 0.20 | 180.50 | 0.3764 | -840.0 | -659.2 | |
| 0.00 | 1.09 | 0.00 | 0.59 | -19.15 | 251.84 | 0.04 | 180.09 | 0.3855 | 604.0 | 546.2 | |
| 0.00 | 1.09 | 0.00 | 0.59 | -20.21 | 251.38 | -0.42 | 179.02 | 0.4026 | -762.0 | -608.2 | |
| 1.82 | 4.72 | 0.98 | 2.54 | -19.15 | 251.16 | -0.64 | 178.43 | 0.3856 | -1043.7 | -854.7 | |
| 0.00 | 1.27 | 0.00 | 0.69 | -19.78 | 251.16 | -0.64 | 178.47 | 0.3958 | -756.0 | -461.0 | |
| 0.00 | 1.27 | 0.00 | 0.72 | -26.08 | 251.02 | -0.78 | 178.57 | 0.4946 | -527.0 | -414.1 | |
| 0.00 | 1.00 | 0.00 | 0.54 | -19.65 | 250.28 | -1.52 | 176.36 | 0.3943 | -871.0 | -677.8 | |
| 0.00 | 1.54 | 0.00 | 0.89 | -27.28 | 249.94 | -1.86 | 176.77 | 0.5134 | -623.0 | -425.1 | |
| 0.00 | 1.09 | 0.00 | 0.59 | -19.88 | 249.63 | -2.17 | 174.86 | 0.3988 | -775.0 | -651.7 | |
| 0.00 | 1.09 | 0.00 | 0.61 | -24.24 | 248.96 | -2.84 | 174.44 | 0.4683 | -765.0 | -655.2 | |
| 0.00 | 2.54 | 0.00 | 1.41 | -22.71 | 246.51 | -5.29 | 169.06 | 0.4502 | -534.0 | -537.3 | |
| 0.00 | 0.82 | 0.00 | 0.47 | -25.81 | 246.00 | -5.80 | 169.44 | 0.4985 | -540.0 | -395.3 | |
| 0.00 | 0.64 | 0.00 | 0.36 | -26.17 | 245.16 | -6.64 | 168.12 | 0.5063 | -788.0 | -550.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
