SDO HMI 2014-07-06 05:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 9.17 | 53.81 | 5.11 | 30.18 | -16.09 | 232.49 | -19.31 | 137.24 | 0.4607 | -238.6 | 61.5 | |
|
previous
or next observation for the same group /

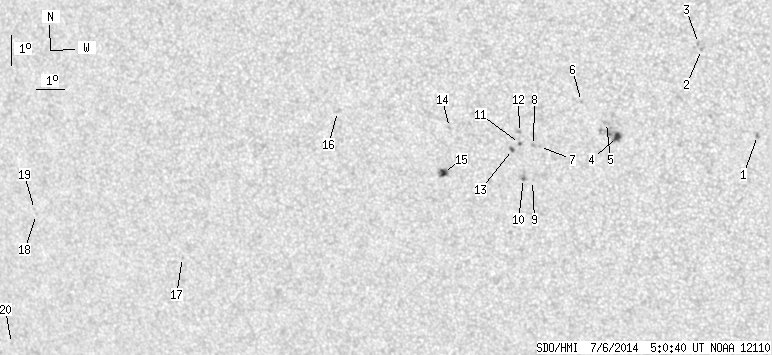

back to the solar disc SDO HMI 2014-07-06 05:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.36 | 0.00 | 1.26 | -15.55 | 240.47 | -11.33 | 149.72 | 0.3768 | 997.0 | 769.5 | |
| 0.00 | 1.64 | 0.00 | 0.87 | -12.82 | 238.82 | -12.98 | 141.80 | 0.3556 | 816.0 | 675.4 | |
| 0.00 | 1.73 | 0.00 | 0.91 | -12.63 | 238.74 | -13.06 | 141.28 | 0.3541 | 834.0 | 647.6 | |
| 4.00 | 18.26 | 2.18 | 9.97 | -15.65 | 235.91 | -15.89 | 140.90 | 0.4199 | 915.8 | 640.5 | |
| 0.00 | 3.00 | 0.00 | 1.63 | -15.20 | 235.58 | -16.22 | 139.63 | 0.4179 | 699.0 | 634.4 | |
| 0.00 | 1.18 | 0.00 | 0.64 | -14.54 | 234.81 | -16.99 | 137.24 | 0.4183 | 844.0 | 610.4 | |
| 0.00 | 0.82 | 0.00 | 0.45 | -16.01 | 233.28 | -18.52 | 137.22 | 0.4512 | -744.0 | -541.9 | |
| 0.00 | 1.91 | 0.00 | 1.06 | -15.99 | 233.09 | -18.71 | 136.87 | 0.4530 | -894.0 | -699.9 | |
| 0.00 | 0.64 | 0.00 | 0.36 | -17.12 | 232.94 | -18.86 | 138.39 | 0.4672 | -865.0 | -731.6 | |
| 0.45 | 3.54 | 0.25 | 1.99 | -17.06 | 232.64 | -19.16 | 137.86 | 0.4696 | -968.0 | -742.8 | |
| 0.36 | 1.36 | 0.20 | 0.76 | -15.93 | 232.62 | -19.18 | 136.10 | 0.4574 | -819.0 | -743.0 | |
| 0.00 | 1.73 | 0.00 | 0.96 | -15.57 | 232.66 | -19.14 | 135.58 | 0.4532 | -999.0 | -632.1 | |
| 1.00 | 1.91 | 0.56 | 1.06 | -16.13 | 232.37 | -19.43 | 136.04 | 0.4623 | -922.1 | -734.9 | |
| 0.00 | 1.18 | 0.00 | 0.67 | -15.46 | 230.31 | -21.49 | 132.15 | 0.4783 | -607.0 | -543.2 | |
| 3.36 | 6.18 | 1.92 | 3.52 | -16.93 | 229.93 | -21.87 | 133.96 | 0.4970 | -1076.2 | -791.5 | |
| 0.00 | 2.73 | 0.00 | 1.58 | -15.04 | 226.50 | -25.30 | 127.01 | 0.5189 | -609.0 | -363.8 | |
| 0.00 | 0.91 | 0.00 | 0.58 | -19.99 | 219.98 | -31.82 | 128.12 | 0.6321 | -623.0 | -514.2 | |
| 0.00 | 1.00 | 0.00 | 0.68 | -18.75 | 214.54 | -37.26 | 122.55 | 0.6825 | -537.0 | -383.7 | |
| 0.00 | 0.55 | 0.00 | 0.37 | -18.59 | 214.50 | -37.30 | 122.31 | 0.6819 | -602.0 | -475.7 | |
| 0.00 | 1.18 | 0.00 | 0.86 | -23.15 | 212.14 | -39.66 | 126.53 | 0.7326 | -206.0 | -185.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
