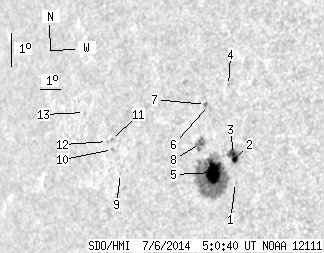

SDO HMI 2014-07-06 05:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 26.35 | 137.55 | 19.44 | 102.35 | 6.46 | 203.53 | -48.27 | 84.40 | 0.7473 | -670.2 | -273.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-06 05:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.64 | 0.00 | 0.46 | 6.00 | 204.75 | -47.05 | 84.98 | 0.7330 | -627.0 | -532.9 | |
| 3.00 | 11.63 | 2.18 | 8.47 | 6.70 | 204.62 | -47.18 | 84.03 | 0.7347 | -969.4 | -651.2 | |
| 1.64 | -2.00 | 1.19 | -2.00 | 6.85 | 204.56 | -47.24 | 83.82 | 0.7355 | -846.5 | 999999 | |
| 0.00 | 1.09 | 0.00 | 0.80 | 8.95 | 204.01 | -47.79 | 81.02 | 0.7430 | -464.0 | -448.1 | |
| 21.26 | 107.84 | 15.73 | 79.96 | 6.27 | 203.72 | -48.08 | 84.65 | 0.7452 | -1042.4 | -257.7 | |
| 0.00 | 1.00 | 0.00 | 0.75 | 8.30 | 203.19 | -48.61 | 81.95 | 0.7520 | -380.0 | -377.7 | |
| 0.45 | 1.64 | 0.34 | 1.23 | 8.32 | 203.05 | -48.75 | 81.93 | 0.7537 | -482.6 | -392.4 | |
| 0.00 | 8.99 | 0.00 | 6.75 | 7.12 | 203.00 | -48.80 | 83.52 | 0.7537 | -685.0 | -487.5 | |
| 0.00 | 0.27 | 0.00 | 0.22 | 6.04 | 199.25 | -52.55 | 85.02 | 0.7946 | 569.0 | 576.3 | |
| 0.00 | 1.27 | 0.00 | 1.05 | 6.75 | 198.74 | -53.06 | 84.13 | 0.8001 | 626.0 | 532.2 | |
| 0.00 | 1.27 | 0.00 | 1.05 | 7.05 | 198.64 | -53.16 | 83.75 | 0.8012 | 492.0 | 451.1 | |
| 0.00 | 0.73 | 0.00 | 0.60 | 6.98 | 198.45 | -53.35 | 83.84 | 0.8032 | 346.0 | 263.0 | |
| 0.00 | 1.18 | 0.00 | 1.01 | 7.81 | 197.09 | -54.71 | 82.85 | 0.8172 | 557.0 | 420.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
