SDO HMI 2014-07-06 06:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 10.27 | 33.26 | 7.85 | 25.46 | -12.77 | 298.51 | 47.26 | 250.04 | 0.7643 | 179.2 | 133.5 | |
|
previous
or next observation for the same group /

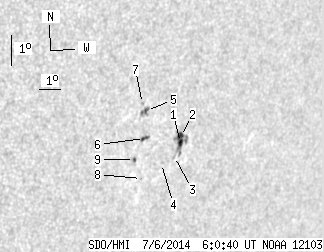

back to the solar disc SDO HMI 2014-07-06 06:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.27 | 18.54 | 2.54 | 14.39 | -12.99 | 299.21 | 47.96 | 250.01 | 0.7724 | 817.5 | 511.6 | |
| 3.27 | -1.00 | 2.53 | -1.00 | -12.79 | 299.16 | 47.91 | 250.23 | 0.7713 | 785.8 | 999999 | |
| 0.00 | 1.64 | 0.00 | 1.27 | -13.42 | 299.05 | 47.79 | 249.40 | 0.7719 | 438.0 | 437.1 | |
| 0.00 | 0.64 | 0.00 | 0.49 | -13.62 | 298.49 | 47.24 | 248.96 | 0.7668 | 206.0 | 174.3 | |
| 1.09 | 5.63 | 0.81 | 4.20 | -11.89 | 297.39 | 46.14 | 250.76 | 0.7495 | -638.9 | -544.8 | |
| 1.91 | 3.54 | 1.43 | 2.66 | -12.78 | 297.50 | 46.25 | 249.66 | 0.7536 | -502.0 | -309.6 | |
| 0.00 | 1.09 | 0.00 | 0.81 | -11.66 | 297.16 | 45.91 | 250.98 | 0.7463 | -621.0 | -520.8 | |
| 0.00 | 0.82 | 0.00 | 0.62 | -14.06 | 297.68 | 46.43 | 248.11 | 0.7597 | -467.0 | -397.3 | |
| 0.73 | 1.36 | 0.54 | 1.02 | -13.43 | 297.21 | 45.95 | 248.72 | 0.7525 | -485.2 | -352.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
