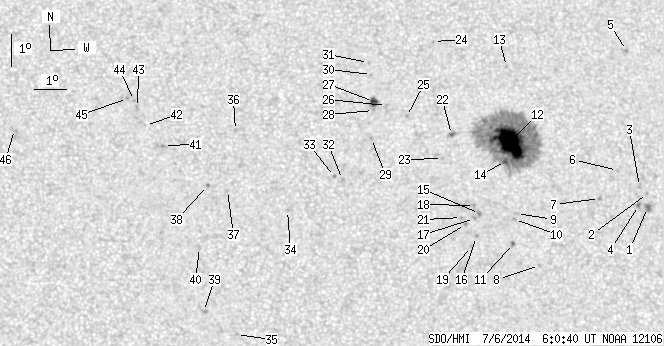

SDO HMI 2014-07-06 06:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 52.06 | 365.03 | 26.77 | 187.63 | 15.04 | 261.03 | 9.78 | 321.83 | 0.2651 | -484.2 | -342.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-06 06:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 4.72 | 0.00 | 2.46 | 13.17 | 266.08 | 14.83 | 304.48 | 0.3037 | -1098.0 | -857.9 | |
| 0.00 | 1.18 | 0.00 | 0.61 | 13.60 | 266.11 | 14.86 | 305.63 | 0.3080 | -849.0 | -636.9 | |
| 0.00 | 2.36 | 0.00 | 1.23 | 13.83 | 265.87 | 14.61 | 306.66 | 0.3067 | -629.0 | -522.5 | |
| 0.00 | 2.45 | 0.00 | 1.27 | 13.24 | 265.80 | 14.54 | 305.17 | 0.3003 | -1083.0 | -860.1 | |
| 0.00 | 1.45 | 0.00 | 0.77 | 18.08 | 265.76 | 14.51 | 316.92 | 0.3502 | -897.0 | -726.0 | |
| 0.00 | 1.00 | 0.00 | 0.52 | 14.33 | 265.19 | 13.93 | 309.29 | 0.3028 | -930.0 | -689.7 | |
| 0.00 | 1.45 | 0.00 | 0.75 | 13.47 | 264.55 | 13.30 | 308.19 | 0.2859 | -836.0 | -641.1 | |
| 0.00 | 1.18 | 0.00 | 0.60 | 11.43 | 262.53 | 11.28 | 306.21 | 0.2387 | -937.0 | -662.3 | |
| 0.00 | 1.73 | 0.00 | 0.88 | 13.04 | 261.87 | 10.62 | 313.11 | 0.2470 | -717.0 | -585.3 | |
| 0.00 | 1.73 | 0.00 | 0.88 | 12.86 | 261.80 | 10.55 | 312.73 | 0.2440 | -931.0 | -753.7 | |
| 0.45 | 2.00 | 0.23 | 1.02 | 12.12 | 261.74 | 10.48 | 310.53 | 0.2351 | -943.2 | -760.5 | |
| 45.61 | 290.11 | 23.47 | 149.35 | 15.25 | 261.75 | 10.50 | 319.49 | 0.2719 | -1494.5 | -440.7 | |
| 0.00 | 1.00 | 0.00 | 0.52 | 17.63 | 261.79 | 10.54 | 324.71 | 0.3030 | 772.0 | 573.0 | |
| 2.18 | -12.00 | 1.12 | -12.00 | 14.66 | 261.60 | 10.34 | 318.41 | 0.2629 | -1139.9 | 999999 | |
| 0.00 | 2.45 | 0.00 | 1.25 | 13.06 | 260.70 | 9.44 | 316.44 | 0.2330 | -993.0 | -815.9 | |
| 0.00 | 1.36 | 0.00 | 0.69 | 12.35 | 260.57 | 9.32 | 314.57 | 0.2231 | -883.0 | -741.7 | |
| 0.00 | 1.45 | 0.00 | 0.74 | 12.91 | 260.53 | 9.28 | 316.46 | 0.2292 | -932.0 | -766.8 | |
| 0.00 | 1.36 | 0.00 | 0.69 | 13.31 | 260.55 | 9.30 | 317.63 | 0.2343 | -836.0 | -688.3 | |
| 0.00 | 1.09 | 0.00 | 0.55 | 12.04 | 260.40 | 9.15 | 314.06 | 0.2174 | -802.0 | -605.2 | |
| 0.00 | 1.36 | 0.00 | 0.69 | 12.72 | 260.24 | 8.99 | 316.79 | 0.2236 | -972.0 | -820.9 | |
| 0.00 | 1.36 | 0.00 | 0.69 | 12.94 | 260.12 | 8.87 | 317.84 | 0.2249 | -954.0 | -785.7 | |
| 0.00 | 3.00 | 0.00 | 1.54 | 15.52 | 259.91 | 8.66 | 325.39 | 0.2564 | 1023.0 | 749.0 | |
| 0.00 | 1.18 | 0.00 | 0.60 | 14.77 | 259.59 | 8.34 | 324.61 | 0.2432 | -814.0 | -649.8 | |
| 0.00 | 1.09 | 0.00 | 0.56 | 18.44 | 259.46 | 8.21 | 332.44 | 0.2941 | -699.0 | -465.8 | |
| 0.00 | 1.18 | 0.00 | 0.60 | 16.09 | 258.49 | 7.24 | 331.14 | 0.2520 | 613.0 | 552.5 | |
| 0.00 | 1.64 | 0.00 | 0.84 | 16.44 | 257.87 | 6.61 | 333.91 | 0.2523 | 667.0 | 615.4 | |
| 3.82 | 5.72 | 1.95 | 2.93 | 16.57 | 257.45 | 6.20 | 335.55 | 0.2513 | 1125.6 | 844.2 | |
| 0.00 | 1.00 | 0.00 | 0.51 | 16.29 | 257.44 | 6.19 | 335.09 | 0.2469 | 833.0 | 628.6 | |
| 0.00 | 1.27 | 0.00 | 0.65 | 15.42 | 257.35 | 6.10 | 333.78 | 0.2329 | 783.0 | 642.4 | |
| 0.00 | 0.82 | 0.00 | 0.42 | 17.42 | 257.42 | 6.17 | 337.05 | 0.2641 | 912.0 | 751.4 | |
| 0.00 | 1.09 | 0.00 | 0.56 | 17.80 | 257.34 | 6.08 | 337.90 | 0.2694 | 840.0 | 638.3 | |
| 0.00 | 2.00 | 0.00 | 1.01 | 14.15 | 256.40 | 5.15 | 334.96 | 0.2065 | 921.0 | 669.6 | |
| 0.00 | 1.45 | 0.00 | 0.74 | 14.24 | 256.15 | 4.90 | 336.23 | 0.2062 | 960.0 | 760.4 | |
| 0.00 | 0.82 | 0.00 | 0.41 | 13.20 | 254.65 | 3.40 | 341.23 | 0.1801 | 736.0 | 534.7 | |
| 0.00 | 1.27 | 0.00 | 0.63 | 9.39 | 253.02 | 1.77 | 343.63 | 0.1088 | 805.0 | 610.4 | |
| 0.00 | 1.45 | 0.00 | 0.74 | 15.69 | 253.04 | 1.79 | 351.93 | 0.2155 | 751.0 | 598.2 | |
| 0.00 | 1.09 | 0.00 | 0.55 | 13.82 | 252.78 | 1.52 | 351.86 | 0.1831 | 799.0 | 614.4 | |
| 0.00 | 1.27 | 0.00 | 0.64 | 13.98 | 252.15 | 0.90 | 355.26 | 0.1846 | 836.0 | 714.9 | |
| 0.00 | 3.18 | 0.00 | 1.59 | 10.10 | 252.01 | 0.76 | 353.62 | 0.1174 | 958.0 | 815.0 | |
| 0.00 | 1.73 | 0.00 | 0.87 | 12.06 | 251.89 | 0.64 | 355.85 | 0.1512 | 693.0 | 545.0 | |
| 0.00 | 1.54 | 0.00 | 0.78 | 15.22 | 250.77 | -0.49 | 2.29 | 0.2055 | 801.0 | 721.6 | |
| 0.00 | 0.73 | 0.00 | 0.37 | 15.85 | 250.20 | -1.06 | 4.72 | 0.2168 | 634.0 | 430.6 | |
| 0.00 | 2.27 | 0.00 | 1.16 | 16.41 | 249.94 | -1.31 | 5.59 | 0.2268 | 892.0 | 734.8 | |
| 0.00 | 1.18 | 0.00 | 0.60 | 16.63 | 249.84 | -1.41 | 5.90 | 0.2307 | 946.0 | 752.5 | |
| 0.00 | 0.91 | 0.00 | 0.46 | 16.69 | 249.62 | -1.63 | 6.79 | 0.2321 | 905.0 | 772.6 | |
| 0.00 | 3.36 | 0.00 | 1.71 | 15.72 | 246.04 | -5.21 | 22.31 | 0.2313 | 246.0 | 398.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
