SDO HMI 2014-07-06 06:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 28.62 | 129.20 | 20.93 | 95.15 | 6.44 | 203.52 | -47.73 | 84.40 | 0.7411 | -706.0 | -285.3 | |
|
previous
or next observation for the same group /

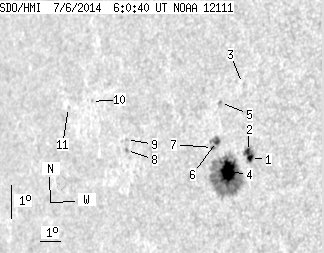

back to the solar disc SDO HMI 2014-07-06 06:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 3.27 | 11.08 | 2.35 | 7.99 | 6.73 | 204.66 | -46.59 | 83.97 | 0.7278 | -954.1 | -702.3 | |
| 2.54 | -1.00 | 1.84 | -1.00 | 6.91 | 204.50 | -46.75 | 83.74 | 0.7297 | -801.3 | 999999 | |
| 0.00 | 0.64 | 0.00 | 0.46 | 8.97 | 203.97 | -47.28 | 80.95 | 0.7372 | -466.0 | -524.6 | |
| 19.53 | 102.31 | 14.31 | 75.05 | 6.26 | 203.72 | -47.53 | 84.64 | 0.7388 | -1050.6 | -284.2 | |
| 0.00 | 1.54 | 0.00 | 1.15 | 8.35 | 203.06 | -48.19 | 81.86 | 0.7473 | -537.0 | -462.5 | |
| 2.73 | 9.63 | 2.02 | 7.16 | 7.15 | 203.05 | -48.20 | 83.46 | 0.7468 | -702.8 | -411.4 | |
| 0.55 | -6.00 | 0.41 | -6.00 | 6.96 | 202.89 | -48.36 | 83.73 | 0.7485 | -454.0 | 999999 | |
| 0.00 | 1.64 | 0.00 | 1.33 | 6.68 | 198.77 | -52.49 | 84.20 | 0.7941 | 617.0 | 505.3 | |
| 0.00 | 0.82 | 0.00 | 0.66 | 7.02 | 198.71 | -52.54 | 83.78 | 0.7947 | 597.0 | 567.1 | |
| 0.00 | 0.45 | 0.00 | 0.39 | 8.09 | 196.70 | -54.55 | 82.50 | 0.8157 | 470.0 | 420.4 | |
| 0.00 | 1.09 | 0.00 | 0.96 | 7.85 | 195.50 | -55.75 | 82.83 | 0.8274 | 410.0 | 276.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
