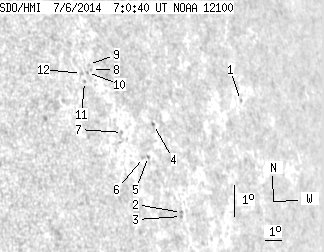

SDO HMI 2014-07-06 07:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 11.91 | 0.00 | 11.00 | 10.49 | 308.30 | 57.59 | 280.30 | 0.8450 | 137.2 | 55.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-06 07:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.18 | 0.00 | 1.32 | 10.99 | 314.54 | 63.84 | 280.57 | 0.8981 | -143.0 | -164.2 | |
| 0.00 | 1.36 | 0.00 | 1.30 | 7.79 | 309.71 | 59.00 | 277.03 | 0.8577 | -615.0 | -554.5 | |
| 0.00 | 0.73 | 0.00 | 0.70 | 7.66 | 309.68 | 58.97 | 276.89 | 0.8575 | -603.0 | -519.5 | |
| 0.00 | 1.45 | 0.00 | 1.36 | 10.55 | 308.78 | 58.07 | 280.30 | 0.8501 | -492.0 | -390.3 | |
| 0.00 | 0.91 | 0.00 | 0.84 | 9.59 | 308.21 | 57.50 | 279.19 | 0.8445 | 443.0 | 346.6 | |
| 0.00 | 1.36 | 0.00 | 1.24 | 9.57 | 307.92 | 57.21 | 279.18 | 0.8418 | 579.0 | 399.9 | |
| 0.00 | 0.64 | 0.00 | 0.57 | 10.39 | 306.94 | 56.24 | 280.21 | 0.8330 | 407.0 | 357.4 | |
| 0.00 | 0.73 | 0.00 | 0.63 | 12.40 | 305.82 | 55.12 | 282.72 | 0.8235 | 273.0 | 209.9 | |
| 0.00 | 0.55 | 0.00 | 0.47 | 12.56 | 305.71 | 55.01 | 282.93 | 0.8226 | 163.0 | 140.5 | |
| 0.00 | 0.73 | 0.00 | 0.63 | 12.32 | 305.58 | 54.87 | 282.65 | 0.8211 | 600.0 | 499.2 | |
| 0.00 | 0.73 | 0.00 | 0.62 | 12.05 | 305.33 | 54.63 | 282.34 | 0.8185 | 429.0 | 402.9 | |
| 0.00 | 1.54 | 0.00 | 1.32 | 12.30 | 305.25 | 54.54 | 282.66 | 0.8178 | 605.0 | 522.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
