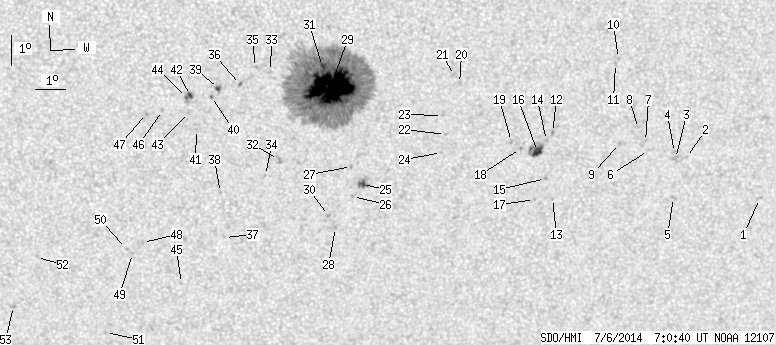

SDO HMI 2014-07-06 07:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 115.94 | 672.39 | 62.50 | 363.03 | -19.23 | 256.07 | 5.37 | 192.73 | 0.3982 | 687.4 | 350.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-06 07:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.45 | 0.00 | 1.44 | -22.83 | 270.35 | 19.64 | 215.19 | 0.5396 | -620.0 | -498.7 | |
| 0.00 | 1.09 | 0.00 | 0.62 | -21.39 | 267.62 | 16.92 | 212.99 | 0.4996 | 660.0 | 519.6 | |
| 0.00 | 5.27 | 0.00 | 3.00 | -21.41 | 267.25 | 16.54 | 212.39 | 0.4968 | 570.0 | 492.0 | |
| 0.00 | 1.27 | 0.00 | 0.72 | -21.21 | 267.19 | 16.49 | 212.54 | 0.4939 | 819.0 | 654.6 | |
| 0.00 | 2.36 | 0.00 | 1.36 | -22.73 | 267.34 | 16.63 | 211.04 | 0.5140 | 739.0 | 565.1 | |
| 0.00 | 1.18 | 0.00 | 0.67 | -21.13 | 266.30 | 15.59 | 211.22 | 0.4856 | 589.0 | 493.2 | |
| 0.00 | 0.82 | 0.00 | 0.46 | -20.82 | 266.16 | 15.46 | 211.36 | 0.4807 | 837.0 | 591.8 | |
| 0.00 | 0.64 | 0.00 | 0.36 | -20.39 | 265.88 | 15.18 | 211.41 | 0.4728 | 679.0 | 646.1 | |
| 0.00 | 1.00 | 0.00 | 0.56 | -20.88 | 265.29 | 14.58 | 209.86 | 0.4745 | 856.0 | 666.7 | |
| 0.00 | 1.00 | 0.00 | 0.55 | -18.06 | 265.00 | 14.30 | 212.78 | 0.4354 | -839.0 | -647.3 | |
| 0.00 | 0.73 | 0.00 | 0.40 | -18.22 | 264.92 | 14.21 | 212.42 | 0.4368 | -771.0 | -576.1 | |
| 0.00 | 1.73 | 0.00 | 0.96 | -20.47 | 263.01 | 12.30 | 206.30 | 0.4524 | 921.0 | 770.6 | |
| 0.00 | 0.91 | 0.00 | 0.51 | -22.70 | 263.20 | 12.50 | 204.45 | 0.4842 | 558.0 | 508.6 | |
| 0.00 | 1.00 | 0.00 | 0.56 | -20.74 | 262.83 | 12.12 | 205.70 | 0.4548 | 756.0 | 560.7 | |
| 0.00 | 1.00 | 0.00 | 0.56 | -22.01 | 262.90 | 12.20 | 204.57 | 0.4730 | 701.0 | 566.3 | |
| 7.00 | 17.17 | 3.89 | 9.56 | -21.10 | 262.56 | 11.85 | 204.84 | 0.4581 | 929.3 | 732.4 | |
| 0.00 | 0.91 | 0.00 | 0.51 | -22.72 | 262.59 | 11.89 | 203.38 | 0.4808 | 741.0 | 622.0 | |
| 0.00 | 1.45 | 0.00 | 0.81 | -20.99 | 261.98 | 11.28 | 203.88 | 0.4529 | 753.0 | 610.2 | |
| 0.00 | 2.09 | 0.00 | 1.16 | -20.75 | 261.67 | 10.96 | 203.51 | 0.4475 | 786.0 | 455.7 | |
| 0.00 | 1.64 | 0.00 | 0.89 | -18.81 | 259.83 | 9.13 | 201.68 | 0.4082 | -814.0 | -682.7 | |
| 0.00 | 3.45 | 0.00 | 1.87 | -18.54 | 259.66 | 8.95 | 201.55 | 0.4032 | -642.0 | -480.8 | |
| 0.00 | 1.09 | 0.00 | 0.60 | -20.49 | 259.47 | 8.76 | 199.41 | 0.4311 | -762.0 | -581.7 | |
| 0.00 | 0.82 | 0.00 | 0.45 | -19.86 | 259.33 | 8.63 | 199.67 | 0.4210 | -771.0 | -661.7 | |
| 0.00 | 0.91 | 0.00 | 0.50 | -21.09 | 259.37 | 8.66 | 198.73 | 0.4395 | 610.0 | 511.8 | |
| 3.36 | 9.63 | 1.86 | 5.32 | -22.15 | 256.81 | 6.10 | 192.86 | 0.4444 | -1062.1 | -718.7 | |
| 0.00 | 1.09 | 0.00 | 0.60 | -22.55 | 256.49 | 5.79 | 192.01 | 0.4495 | -820.0 | -679.8 | |
| 0.00 | 1.73 | 0.00 | 0.95 | -21.54 | 256.42 | 5.72 | 192.39 | 0.4337 | -924.0 | -686.8 | |
| 0.00 | 1.45 | 0.00 | 0.81 | -23.61 | 255.97 | 5.27 | 190.49 | 0.4639 | -905.0 | -671.9 | |
| 100.04 | 569.16 | 53.78 | 305.90 | -18.87 | 255.65 | 4.94 | 192.13 | 0.3895 | 1496.8 | 428.8 | |
| 0.00 | 1.45 | 0.00 | 0.81 | -23.19 | 255.72 | 5.02 | 190.17 | 0.4570 | -948.0 | -886.2 | |
| 2.00 | -29.00 | 1.07 | -29.00 | -18.21 | 255.37 | 4.67 | 191.84 | 0.3782 | 1338.5 | 999999 | |
| 0.00 | 3.82 | 0.00 | 2.08 | -21.29 | 254.02 | 3.31 | 187.33 | 0.4233 | 655.0 | 590.5 | |
| 0.00 | 1.18 | 0.00 | 0.63 | -18.36 | 253.70 | 3.00 | 187.61 | 0.3761 | 815.0 | 537.8 | |
| 0.00 | 0.82 | 0.00 | 0.45 | -21.82 | 253.60 | 2.90 | 186.27 | 0.4309 | -864.0 | -730.7 | |
| 0.00 | 1.45 | 0.00 | 0.78 | -18.23 | 253.22 | 2.51 | 186.44 | 0.3730 | -686.0 | -362.5 | |
| 0.00 | 2.00 | 0.00 | 1.07 | -18.79 | 252.74 | 2.04 | 185.08 | 0.3812 | 718.0 | 478.0 | |
| 0.00 | 0.91 | 0.00 | 0.51 | -23.93 | 252.27 | 1.57 | 183.12 | 0.4621 | -643.0 | -487.8 | |
| 0.00 | 0.91 | 0.00 | 0.50 | -22.39 | 252.13 | 1.42 | 183.01 | 0.4380 | -774.0 | -649.9 | |
| 1.36 | 3.91 | 0.73 | 2.09 | -18.92 | 252.03 | 1.33 | 183.30 | 0.3825 | -956.8 | -686.5 | |
| 0.00 | 1.45 | 0.00 | 0.78 | -19.18 | 251.81 | 1.10 | 182.71 | 0.3865 | 741.0 | 606.1 | |
| 0.00 | 0.64 | 0.00 | 0.34 | -20.27 | 251.33 | 0.62 | 181.45 | 0.4039 | -721.0 | -582.6 | |
| 1.54 | 6.72 | 0.83 | 3.61 | -19.15 | 251.13 | 0.43 | 181.05 | 0.3856 | -1056.4 | -772.3 | |
| 0.00 | 1.45 | 0.00 | 0.78 | -19.71 | 251.07 | 0.36 | 180.87 | 0.3947 | -779.0 | -546.8 | |
| 0.64 | -42.00 | 0.34 | -42.00 | -19.21 | 251.00 | 0.30 | 180.73 | 0.3867 | -949.3 | 999999 | |
| 0.00 | 1.09 | 0.00 | 0.62 | -25.52 | 250.84 | 0.13 | 180.25 | 0.4860 | -640.0 | -443.8 | |
| 0.00 | 1.73 | 0.00 | 0.93 | -19.64 | 250.23 | -0.48 | 178.85 | 0.3936 | -862.0 | -629.8 | |
| 0.00 | 0.82 | 0.00 | 0.44 | -19.74 | 249.71 | -1.00 | 177.62 | 0.3955 | -895.0 | -832.7 | |
| 0.00 | 1.64 | 0.00 | 0.91 | -24.10 | 249.54 | -1.17 | 177.70 | 0.4644 | -820.0 | -634.2 | |
| 0.00 | 1.18 | 0.00 | 0.66 | -24.48 | 249.20 | -1.51 | 177.07 | 0.4706 | -762.0 | -579.9 | |
| 0.00 | 1.09 | 0.00 | 0.61 | -24.30 | 249.00 | -1.71 | 176.66 | 0.4681 | -692.0 | -639.9 | |
| 0.00 | 1.09 | 0.00 | 0.63 | -27.24 | 248.23 | -2.47 | 175.70 | 0.5136 | -604.0 | -452.6 | |
| 0.00 | 0.36 | 0.00 | 0.20 | -24.62 | 245.97 | -4.73 | 170.93 | 0.4780 | -581.0 | -622.2 | |
| 0.00 | 1.64 | 0.00 | 0.94 | -26.34 | 245.12 | -5.59 | 170.02 | 0.5058 | -812.0 | -710.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
