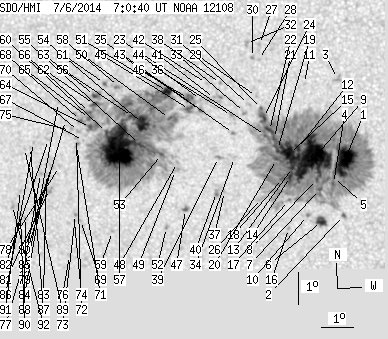

SDO HMI 2014-07-06 07:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 326.94 | 1686.91 | 168.37 | 870.19 | -7.28 | 238.93 | -11.77 | 133.30 | 0.2776 | 132.6 | -4.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-06 07:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 37.53 | 842.02 | 19.13 | 430.43 | -7.65 | 242.77 | -7.94 | 144.47 | 0.2366 | 1433.7 | 450.2 | |
| 0.73 | 2.91 | 0.37 | 1.49 | -9.37 | 242.70 | -8.01 | 148.11 | 0.2613 | -764.6 | -490.6 | |
| 0.00 | 4.45 | 0.00 | 2.25 | -5.12 | 242.59 | -8.11 | 136.49 | 0.2050 | -704.0 | -701.4 | |
| 1.64 | -1.00 | 0.84 | -1.00 | -8.37 | 242.41 | -8.30 | 145.00 | 0.2500 | 599.6 | 999999 | |
| 0.27 | -1.00 | 0.14 | -1.00 | -8.18 | 242.41 | -8.29 | 144.58 | 0.2474 | 869.0 | 999999 | |
| 6.27 | 9.18 | 3.23 | 4.72 | -9.56 | 242.01 | -8.70 | 146.35 | 0.2704 | 1017.4 | 756.1 | |
| 1.54 | -1.00 | 0.79 | -1.00 | -8.56 | 241.97 | -8.74 | 144.05 | 0.2569 | 806.2 | 999999 | |
| 1.36 | -1.00 | 0.70 | -1.00 | -8.25 | 241.88 | -8.82 | 143.04 | 0.2536 | 795.7 | 999999 | |
| 86.14 | -1.00 | 44.01 | -1.00 | -7.60 | 241.80 | -8.90 | 141.17 | 0.2457 | 1367.0 | 999999 | |
| 0.00 | 1.54 | 0.00 | 0.79 | -9.37 | 241.57 | -9.13 | 144.67 | 0.2720 | 902.0 | 779.7 | |
| 0.00 | 1.18 | 0.00 | 0.60 | -5.28 | 241.57 | -9.14 | 133.62 | 0.2194 | 746.0 | 545.4 | |
| 4.18 | -1.00 | 2.14 | -1.00 | -7.29 | 241.31 | -9.39 | 138.85 | 0.2471 | 1214.5 | 999999 | |
| 3.18 | -1.00 | 1.63 | -1.00 | -7.88 | 241.14 | -9.56 | 139.89 | 0.2566 | 1112.0 | 999999 | |
| 5.72 | -1.00 | 2.94 | -1.00 | -8.16 | 241.07 | -9.63 | 140.39 | 0.2609 | 924.3 | 999999 | |
| 29.35 | -1.00 | 15.02 | -1.00 | -7.45 | 241.06 | -9.65 | 138.52 | 0.2519 | 1224.2 | 999999 | |
| 0.00 | 1.27 | 0.00 | 0.66 | -9.79 | 240.96 | -9.74 | 143.80 | 0.2835 | 778.0 | 616.0 | |
| 0.00 | 2.27 | 0.00 | 1.17 | -8.91 | 240.99 | -9.71 | 141.94 | 0.2716 | 806.0 | 612.2 | |
| 2.27 | -1.00 | 1.17 | -1.00 | -8.23 | 240.82 | -9.88 | 139.83 | 0.2645 | 775.3 | 999999 | |
| 3.73 | -1.00 | 1.91 | -1.00 | -7.33 | 240.69 | -10.02 | 137.12 | 0.2546 | 860.2 | 999999 | |
| 1.09 | -1.00 | 0.56 | -1.00 | -7.64 | 240.65 | -10.06 | 137.84 | 0.2589 | 735.6 | 999999 | |
| 3.00 | -1.00 | 1.53 | -1.00 | -6.99 | 240.60 | -10.10 | 135.94 | 0.2515 | 898.8 | 999999 | |
| 3.82 | -1.00 | 1.95 | -1.00 | -6.74 | 240.45 | -10.25 | 134.82 | 0.2503 | 1057.7 | 999999 | |
| 1.18 | -1.00 | 0.60 | -1.00 | -6.90 | 240.32 | -10.38 | 134.91 | 0.2537 | 570.0 | 999999 | |
| 5.18 | -1.00 | 2.65 | -1.00 | -6.34 | 240.27 | -10.43 | 133.16 | 0.2478 | 690.6 | 999999 | |
| 0.73 | -1.00 | 0.37 | -1.00 | -6.06 | 240.22 | -10.49 | 132.17 | 0.2453 | -836.8 | 999999 | |
| 0.00 | 4.82 | 0.00 | 2.48 | -8.86 | 240.15 | -10.56 | 139.48 | 0.2799 | 9.0 | 30.1 | |
| 0.00 | 1.82 | 0.00 | 0.92 | -4.09 | 240.19 | -10.51 | 125.52 | 0.2246 | 893.0 | 662.7 | |
| 0.00 | 1.09 | 0.00 | 0.55 | -4.55 | 240.15 | -10.55 | 127.06 | 0.2298 | 946.0 | 812.8 | |
| 0.00 | 0.91 | 0.00 | 0.46 | -5.69 | 240.07 | -10.64 | 130.63 | 0.2431 | 961.0 | 757.7 | |
| 0.00 | 1.54 | 0.00 | 0.79 | -4.49 | 239.97 | -10.74 | 126.37 | 0.2317 | 1093.0 | 850.4 | |
| 0.00 | 2.18 | 0.00 | 1.12 | -5.94 | 239.81 | -10.89 | 130.73 | 0.2491 | 791.0 | 523.8 | |
| 0.00 | 3.45 | 0.00 | 1.76 | -4.06 | 239.79 | -10.92 | 124.40 | 0.2300 | 803.0 | 717.8 | |
| 0.00 | 2.18 | 0.00 | 1.12 | -6.19 | 239.68 | -11.02 | 131.15 | 0.2535 | 799.0 | 700.5 | |
| 0.00 | 1.27 | 0.00 | 0.65 | -7.59 | 239.34 | -11.37 | 134.20 | 0.2737 | -733.0 | -559.2 | |
| 0.00 | 1.54 | 0.00 | 0.79 | -6.85 | 239.32 | -11.38 | 132.13 | 0.2654 | 894.0 | 675.9 | |
| 0.00 | 2.54 | 0.00 | 1.30 | -6.29 | 239.28 | -11.43 | 130.41 | 0.2598 | 782.0 | 607.4 | |
| 0.00 | 1.45 | 0.00 | 0.75 | -8.65 | 238.99 | -11.72 | 136.03 | 0.2904 | 780.0 | 679.3 | |
| 0.00 | 1.36 | 0.00 | 0.70 | -5.30 | 238.95 | -11.75 | 126.60 | 0.2537 | 902.0 | 694.8 | |
| 0.00 | 3.45 | 0.00 | 1.78 | -7.59 | 238.83 | -11.87 | 132.98 | 0.2799 | -989.0 | -675.4 | |
| 0.00 | 3.73 | 0.00 | 1.93 | -8.68 | 238.74 | -11.97 | 135.50 | 0.2938 | 860.0 | 758.3 | |
| 0.00 | 8.18 | 0.00 | 4.20 | -5.77 | 238.76 | -11.95 | 127.59 | 0.2611 | -69.0 | 62.0 | |
| 0.00 | 1.27 | 0.00 | 0.65 | -5.31 | 238.52 | -12.19 | 125.62 | 0.2598 | 770.0 | 556.5 | |
| 0.73 | 720.99 | 0.37 | 375.39 | -6.15 | 238.31 | -12.40 | 127.70 | 0.2710 | -977.9 | -465.5 | |
| 0.00 | 1.09 | 0.00 | 0.56 | -5.81 | 238.32 | -12.39 | 126.71 | 0.2674 | -948.0 | -665.0 | |
| 3.00 | -43.00 | 1.54 | -43.00 | -6.12 | 237.96 | -12.74 | 126.86 | 0.2753 | -937.0 | 999999 | |
| 4.36 | -43.00 | 2.24 | -43.00 | -5.78 | 237.94 | -12.76 | 125.81 | 0.2723 | -1155.3 | 999999 | |
| 1.18 | 3.91 | 0.62 | 2.04 | -9.23 | 237.74 | -12.97 | 134.50 | 0.3119 | 925.0 | 669.6 | |
| 0.00 | 1.54 | 0.00 | 0.80 | -7.77 | 237.54 | -13.17 | 130.48 | 0.2980 | -200.0 | -168.9 | |
| 0.00 | 3.00 | 0.00 | 1.56 | -8.02 | 237.46 | -13.24 | 130.96 | 0.3016 | -203.0 | -235.8 | |
| 1.09 | -43.00 | 0.56 | -43.00 | -6.40 | 237.33 | -13.38 | 126.35 | 0.2868 | -1062.3 | 999999 | |
| 6.27 | -43.00 | 3.23 | -43.00 | -5.57 | 237.28 | -13.42 | 123.84 | 0.2793 | 1039.0 | 999999 | |
| 0.00 | 2.09 | 0.00 | 1.09 | -9.80 | 237.11 | -13.59 | 134.45 | 0.3259 | -1070.0 | -806.0 | |
| 1.00 | -43.00 | 0.52 | -43.00 | -7.52 | 237.04 | -13.67 | 128.81 | 0.3019 | -882.3 | 999999 | |
| 15.08 | -43.00 | 7.83 | -43.00 | -6.57 | 236.47 | -14.24 | 125.12 | 0.3000 | -1429.7 | 999999 | |
| 1.36 | -43.00 | 0.71 | -43.00 | -7.22 | 236.35 | -14.35 | 126.66 | 0.3079 | -1147.9 | 999999 | |
| 3.09 | -43.00 | 1.60 | -43.00 | -6.36 | 236.16 | -14.55 | 123.96 | 0.3023 | -1289.6 | 999999 | |
| 78.05 | -43.00 | 40.76 | -43.00 | -7.33 | 235.71 | -14.99 | 125.74 | 0.3175 | -1460.0 | 999999 | |
| 0.00 | 3.09 | 0.00 | 1.60 | -5.44 | 235.74 | -14.96 | 120.62 | 0.3000 | -953.0 | -877.1 | |
| 0.00 | 1.45 | 0.00 | 0.77 | -9.95 | 235.38 | -15.33 | 131.37 | 0.3484 | -922.0 | -615.4 | |
| 1.54 | -43.00 | 0.81 | -43.00 | -6.87 | 235.32 | -15.39 | 123.84 | 0.3186 | -944.2 | 999999 | |
| 0.64 | 1.82 | 0.33 | 0.95 | -5.35 | 235.30 | -15.41 | 119.65 | 0.3057 | -1057.7 | -871.8 | |
| 2.27 | -43.00 | 1.19 | -43.00 | -6.01 | 234.96 | -15.74 | 120.94 | 0.3160 | -1133.5 | 999999 | |
| 2.00 | -43.00 | 1.04 | -43.00 | -5.73 | 234.97 | -15.74 | 120.18 | 0.3135 | -1044.0 | 999999 | |
| 2.00 | -43.00 | 1.05 | -43.00 | -6.72 | 234.81 | -15.89 | 122.60 | 0.3243 | -1035.5 | 999999 | |
| 1.64 | -43.00 | 0.86 | -43.00 | -6.44 | 234.79 | -15.92 | 121.83 | 0.3222 | -1188.0 | 999999 | |
| 1.64 | -43.00 | 0.86 | -43.00 | -6.26 | 234.79 | -15.91 | 121.34 | 0.3205 | -970.4 | 999999 | |
| 0.00 | 0.82 | 0.00 | 0.43 | -7.13 | 234.57 | -16.13 | 123.26 | 0.3312 | -701.0 | -574.2 | |
| 1.09 | -43.00 | 0.57 | -43.00 | -6.51 | 234.50 | -16.21 | 121.54 | 0.3268 | -834.6 | 999999 | |
| 0.00 | 0.82 | 0.00 | 0.43 | -9.62 | 234.36 | -16.34 | 128.85 | 0.3577 | -896.0 | -771.0 | |
| 0.00 | 2.18 | 0.00 | 1.14 | -6.85 | 234.42 | -16.28 | 122.31 | 0.3308 | -936.0 | -741.9 | |
| 0.00 | 2.27 | 0.00 | 1.19 | -7.28 | 234.34 | -16.36 | 123.29 | 0.3358 | -834.0 | -732.6 | |
| 0.00 | 1.36 | 0.00 | 0.72 | -7.07 | 234.35 | -16.36 | 122.76 | 0.3337 | -898.0 | -699.0 | |
| 0.00 | 1.18 | 0.00 | 0.63 | -9.43 | 234.21 | -16.49 | 128.18 | 0.3578 | -946.0 | -857.9 | |
| 0.00 | 0.36 | 0.00 | 0.19 | -9.65 | 234.17 | -16.54 | 128.60 | 0.3605 | -720.0 | -573.2 | |
| 0.00 | 3.00 | 0.00 | 1.58 | -6.82 | 234.17 | -16.54 | 121.84 | 0.3342 | -675.0 | -659.2 | |
| 0.00 | 2.00 | 0.00 | 1.07 | -10.72 | 233.95 | -16.76 | 130.51 | 0.3742 | -742.0 | -598.7 | |
| 0.00 | 1.00 | 0.00 | 0.52 | -6.52 | 234.02 | -16.69 | 120.82 | 0.3337 | -802.0 | -618.2 | |
| 0.00 | 1.54 | 0.00 | 0.82 | -7.95 | 233.77 | -16.94 | 124.01 | 0.3496 | -845.0 | -726.6 | |
| 0.00 | 1.64 | 0.00 | 0.86 | -5.96 | 233.81 | -16.89 | 119.07 | 0.3321 | -611.0 | -412.6 | |
| 0.00 | 2.45 | 0.00 | 1.30 | -7.95 | 233.51 | -17.19 | 123.62 | 0.3531 | -886.0 | -758.7 | |
| 0.00 | 4.00 | 0.00 | 2.12 | -8.67 | 233.41 | -17.29 | 125.15 | 0.3609 | -671.0 | -696.9 | |
| 0.00 | 2.36 | 0.00 | 1.25 | -7.11 | 233.45 | -17.26 | 121.49 | 0.3467 | -748.0 | -553.2 | |
| 0.00 | 1.36 | 0.00 | 0.72 | -8.20 | 233.34 | -17.37 | 123.96 | 0.3577 | -896.0 | -699.9 | |
| 0.00 | 1.00 | 0.00 | 0.53 | -8.77 | 233.18 | -17.52 | 125.02 | 0.3649 | -688.0 | -559.0 | |
| 0.00 | 1.18 | 0.00 | 0.63 | -8.17 | 233.15 | -17.56 | 123.60 | 0.3601 | -762.0 | -645.9 | |
| 0.00 | 0.82 | 0.00 | 0.43 | -7.21 | 232.96 | -17.74 | 121.03 | 0.3544 | -790.0 | -687.6 | |
| 0.00 | 1.09 | 0.00 | 0.58 | -7.37 | 232.86 | -17.85 | 121.27 | 0.3571 | -649.0 | -546.8 | |
| 0.00 | 1.54 | 0.00 | 0.83 | -9.56 | 232.59 | -18.12 | 125.88 | 0.3801 | -527.0 | -549.0 | |
| 0.00 | 1.00 | 0.00 | 0.53 | -7.41 | 232.66 | -18.04 | 121.08 | 0.3601 | -690.0 | -522.2 | |
| 0.00 | 1.54 | 0.00 | 0.83 | -9.47 | 232.43 | -18.28 | 125.45 | 0.3813 | -780.0 | -645.1 | |
| 0.00 | 1.64 | 0.00 | 0.87 | -8.72 | 232.47 | -18.23 | 123.85 | 0.3740 | -693.0 | -525.2 | |
| 0.00 | 2.18 | 0.00 | 1.17 | -9.19 | 232.18 | -18.52 | 124.49 | 0.3821 | -688.0 | -599.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
