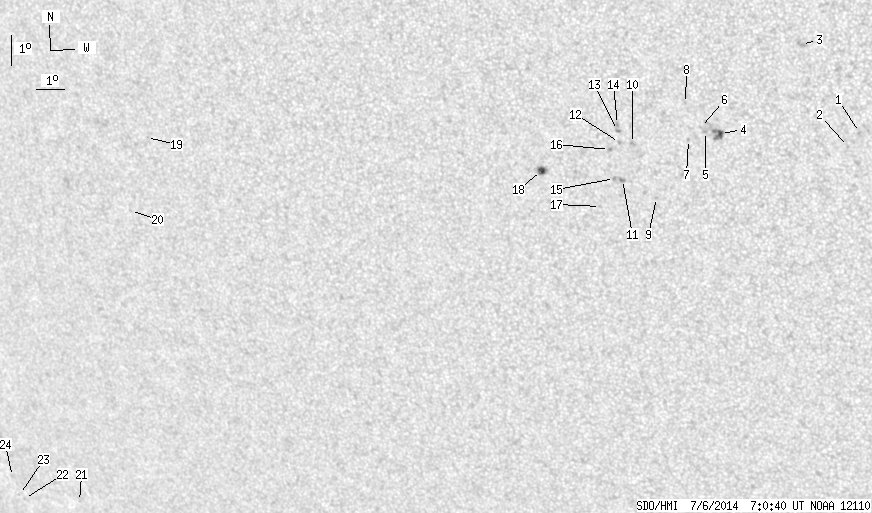

SDO HMI 2014-07-06 07:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 6.17 | 50.73 | 3.44 | 28.73 | -16.92 | 231.38 | -19.33 | 139.16 | 0.4663 | -218.2 | -36.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-06 07:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.36 | 0.00 | 0.73 | -15.50 | 240.51 | -10.20 | 152.20 | 0.3674 | 901.0 | 729.3 | |
| 0.00 | 1.09 | 0.00 | 0.58 | -15.96 | 240.13 | -10.57 | 151.94 | 0.3767 | 541.0 | 491.1 | |
| 0.00 | 3.82 | 0.00 | 2.01 | -12.71 | 238.79 | -11.91 | 143.96 | 0.3437 | 918.0 | 734.8 | |
| 2.54 | 12.63 | 1.38 | 6.85 | -15.59 | 236.00 | -14.71 | 142.96 | 0.4077 | 981.3 | 733.4 | |
| 0.00 | 1.54 | 0.00 | 0.84 | -15.53 | 235.51 | -15.19 | 141.98 | 0.4117 | 690.0 | 597.2 | |
| 0.00 | 0.91 | 0.00 | 0.49 | -15.41 | 235.36 | -15.35 | 141.50 | 0.4117 | 566.0 | 426.2 | |
| 0.00 | 1.00 | 0.00 | 0.55 | -15.80 | 234.93 | -15.77 | 141.36 | 0.4207 | 820.0 | 645.0 | |
| 0.00 | 1.00 | 0.00 | 0.54 | -14.64 | 234.92 | -15.78 | 139.50 | 0.4069 | 696.0 | 615.2 | |
| 0.00 | 1.27 | 0.00 | 0.71 | -17.71 | 233.70 | -17.01 | 142.11 | 0.4556 | -376.0 | -383.4 | |
| 0.00 | 3.00 | 0.00 | 1.65 | -15.96 | 233.06 | -17.64 | 138.50 | 0.4416 | -810.0 | -604.4 | |
| 0.00 | 2.82 | 0.00 | 1.57 | -17.14 | 232.61 | -18.09 | 139.59 | 0.4596 | -840.0 | -732.4 | |
| 0.00 | 1.64 | 0.00 | 0.90 | -15.94 | 232.63 | -18.07 | 137.78 | 0.4458 | -1036.0 | -730.8 | |
| 0.00 | 1.91 | 0.00 | 1.05 | -15.55 | 232.60 | -18.10 | 137.12 | 0.4418 | -971.0 | -814.0 | |
| 0.00 | 1.64 | 0.00 | 0.90 | -15.36 | 232.62 | -18.09 | 136.84 | 0.4394 | -522.0 | -495.6 | |
| 0.00 | 1.82 | 0.00 | 1.01 | -17.11 | 232.35 | -18.36 | 139.14 | 0.4620 | -979.0 | -804.2 | |
| 0.00 | 1.91 | 0.00 | 1.06 | -16.17 | 232.27 | -18.43 | 137.60 | 0.4522 | -1041.0 | -782.8 | |
| 0.00 | 1.00 | 0.00 | 0.56 | -18.03 | 231.77 | -18.93 | 139.63 | 0.4782 | -551.0 | -447.9 | |
| 3.63 | 5.91 | 2.06 | 3.34 | -16.90 | 229.90 | -20.81 | 135.32 | 0.4853 | -1037.8 | -732.8 | |
| 0.00 | 0.55 | 0.00 | 0.35 | -16.23 | 215.74 | -34.97 | 120.64 | 0.6419 | -490.0 | -508.5 | |
| 0.00 | 1.18 | 0.00 | 0.79 | -18.64 | 214.55 | -36.15 | 123.14 | 0.6698 | -464.0 | -439.3 | |
| 0.00 | 0.64 | 0.00 | 0.51 | -28.82 | 208.67 | -42.03 | 131.56 | 0.7862 | -571.0 | -470.6 | |
| 0.00 | 0.91 | 0.00 | 0.76 | -28.83 | 206.03 | -44.68 | 130.09 | 0.8074 | -386.0 | -331.7 | |
| 0.00 | 0.27 | 0.00 | 0.23 | -28.69 | 205.86 | -44.85 | 129.85 | 0.8081 | -457.0 | -411.7 | |
| 0.00 | 0.91 | 0.00 | 0.75 | -28.05 | 205.86 | -44.85 | 129.16 | 0.8048 | -405.0 | -375.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
