SDO HMI 2014-07-06 08:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 58.25 | 384.88 | 30.06 | 198.40 | 15.03 | 260.56 | 10.41 | 320.59 | 0.2743 | -458.7 | -284.7 | |
|
previous
or next observation for the same group /

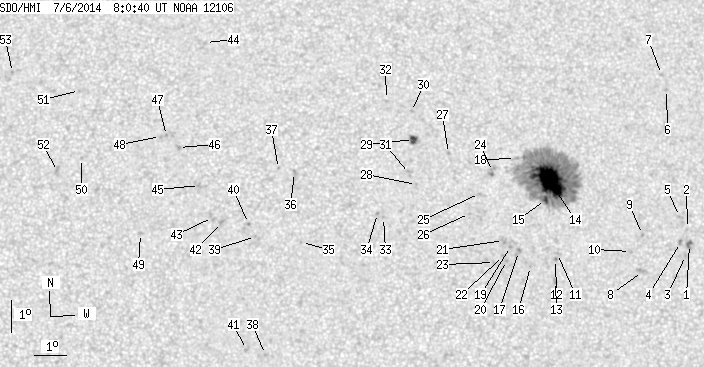

back to the solar disc SDO HMI 2014-07-06 08:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 4.54 | 0.00 | 2.37 | 13.19 | 266.16 | 16.00 | 302.60 | 0.3200 | -1063.0 | -894.3 | |
| 0.00 | 1.45 | 0.00 | 0.76 | 13.68 | 266.13 | 15.97 | 303.98 | 0.3238 | -632.0 | -417.1 | |
| 0.00 | 1.73 | 0.00 | 0.90 | 12.85 | 266.00 | 15.85 | 301.91 | 0.3150 | -855.0 | -650.6 | |
| 0.00 | 2.45 | 0.00 | 1.28 | 13.25 | 265.87 | 15.71 | 303.24 | 0.3165 | -1040.0 | -843.5 | |
| 0.00 | 1.00 | 0.00 | 0.52 | 14.06 | 265.89 | 15.74 | 305.34 | 0.3239 | -865.0 | -649.5 | |
| 0.00 | 1.64 | 0.00 | 0.87 | 18.03 | 265.79 | 15.63 | 314.76 | 0.3625 | -885.0 | -629.1 | |
| 0.00 | 1.45 | 0.00 | 0.77 | 18.51 | 265.67 | 15.51 | 315.95 | 0.3663 | -679.0 | -476.2 | |
| 0.00 | 5.82 | 0.00 | 3.01 | 12.38 | 264.58 | 14.43 | 302.88 | 0.2910 | -879.0 | -687.7 | |
| 0.00 | 1.27 | 0.00 | 0.66 | 13.52 | 264.65 | 14.50 | 306.03 | 0.3022 | -703.0 | -651.7 | |
| 0.00 | 1.18 | 0.00 | 0.61 | 13.00 | 264.23 | 14.08 | 305.33 | 0.2917 | -453.0 | -493.8 | |
| 0.00 | 1.18 | 0.00 | 0.61 | 12.97 | 261.89 | 11.73 | 310.12 | 0.2602 | -820.0 | -627.3 | |
| 0.00 | 1.36 | 0.00 | 0.70 | 12.79 | 261.82 | 11.66 | 309.72 | 0.2574 | -945.0 | -822.0 | |
| 0.00 | 2.64 | 0.00 | 1.35 | 12.11 | 261.78 | 11.63 | 307.65 | 0.2500 | -1098.0 | -767.2 | |
| 51.79 | 280.31 | 26.75 | 144.85 | 15.24 | 261.75 | 11.60 | 316.70 | 0.2840 | -1461.5 | -424.3 | |
| 2.73 | -14.00 | 1.40 | -14.00 | 14.65 | 261.59 | 11.43 | 315.57 | 0.2752 | -1127.0 | 999999 | |
| 0.00 | 1.09 | 0.00 | 0.56 | 12.58 | 261.01 | 10.85 | 311.05 | 0.2448 | -802.0 | -599.3 | |
| 0.00 | 3.73 | 0.00 | 1.90 | 13.05 | 260.65 | 10.49 | 313.45 | 0.2454 | -789.0 | -826.6 | |
| 0.00 | 2.73 | 0.00 | 1.41 | 15.94 | 260.70 | 10.54 | 321.04 | 0.2809 | -736.0 | -555.8 | |
| 0.00 | 1.45 | 0.00 | 0.74 | 13.21 | 260.40 | 10.24 | 314.59 | 0.2442 | -985.0 | -782.0 | |
| 0.00 | 1.27 | 0.00 | 0.65 | 12.78 | 260.26 | 10.10 | 313.67 | 0.2375 | -978.0 | -772.6 | |
| 0.00 | 4.00 | 0.00 | 2.04 | 13.40 | 260.19 | 10.03 | 315.75 | 0.2439 | -640.0 | -625.4 | |
| 0.00 | 1.36 | 0.00 | 0.70 | 12.93 | 260.17 | 10.01 | 314.40 | 0.2382 | -988.0 | -775.7 | |
| 0.00 | 1.00 | 0.00 | 0.51 | 12.72 | 259.87 | 9.72 | 314.58 | 0.2321 | -781.0 | -688.9 | |
| 0.00 | 4.63 | 0.00 | 2.38 | 15.54 | 259.93 | 9.78 | 322.16 | 0.2679 | 652.0 | 635.1 | |
| 0.00 | 0.82 | 0.00 | 0.42 | 14.86 | 259.49 | 9.33 | 321.77 | 0.2543 | -734.0 | -520.2 | |
| 0.00 | 0.82 | 0.00 | 0.42 | 14.24 | 259.14 | 8.98 | 321.20 | 0.2426 | -742.0 | -504.7 | |
| 0.00 | 1.36 | 0.00 | 0.70 | 16.12 | 258.55 | 8.39 | 327.51 | 0.2622 | 667.0 | 591.8 | |
| 0.00 | 1.09 | 0.00 | 0.56 | 15.16 | 257.49 | 7.33 | 328.84 | 0.2391 | 592.0 | 506.4 | |
| 3.73 | 6.36 | 1.91 | 3.26 | 16.57 | 257.45 | 7.29 | 331.89 | 0.2593 | 1161.2 | 784.5 | |
| 0.00 | 1.27 | 0.00 | 0.65 | 17.45 | 257.42 | 7.26 | 333.57 | 0.2721 | 738.0 | 669.2 | |
| 0.00 | 3.09 | 0.00 | 1.58 | 15.51 | 257.28 | 7.12 | 330.32 | 0.2423 | 756.0 | 628.3 | |
| 0.00 | 0.64 | 0.00 | 0.33 | 17.83 | 256.63 | 6.47 | 336.69 | 0.2723 | 531.0 | 604.3 | |
| 0.00 | 1.18 | 0.00 | 0.60 | 14.15 | 256.41 | 6.25 | 330.44 | 0.2150 | 826.0 | 632.2 | |
| 0.00 | 1.18 | 0.00 | 0.60 | 14.27 | 256.22 | 6.07 | 331.46 | 0.2153 | 867.0 | 645.4 | |
| 0.00 | 0.82 | 0.00 | 0.41 | 13.39 | 253.81 | 3.65 | 340.29 | 0.1845 | 840.0 | 687.0 | |
| 0.00 | 2.09 | 0.00 | 1.06 | 15.56 | 253.63 | 3.47 | 344.50 | 0.2191 | 832.0 | 659.3 | |
| 0.00 | 1.00 | 0.00 | 0.51 | 15.69 | 253.12 | 2.96 | 346.81 | 0.2191 | 807.0 | 683.6 | |
| 0.00 | 1.45 | 0.00 | 0.73 | 9.94 | 252.64 | 2.49 | 339.35 | 0.1217 | 823.0 | 600.6 | |
| 0.00 | 1.00 | 0.00 | 0.50 | 13.58 | 252.37 | 2.21 | 347.98 | 0.1809 | 849.0 | 679.1 | |
| 0.00 | 1.27 | 0.00 | 0.64 | 13.98 | 252.15 | 2.00 | 349.54 | 0.1870 | 881.0 | 676.9 | |
| 0.00 | 2.45 | 0.00 | 1.22 | 10.10 | 252.06 | 1.90 | 344.29 | 0.1211 | 964.0 | 717.6 | |
| 0.00 | 3.18 | 0.00 | 1.60 | 14.02 | 251.30 | 1.15 | 353.96 | 0.1855 | 765.0 | 637.3 | |
| 0.00 | 4.27 | 0.00 | 2.15 | 14.17 | 251.02 | 0.87 | 355.51 | 0.1877 | 476.0 | 588.1 | |
| 0.00 | 2.00 | 0.00 | 1.03 | 19.66 | 250.83 | 0.67 | 357.74 | 0.2809 | 772.0 | 554.0 | |
| 0.00 | 2.64 | 0.00 | 1.33 | 15.17 | 250.62 | 0.46 | 357.82 | 0.2044 | 841.0 | 694.2 | |
| 0.00 | 2.54 | 0.00 | 1.29 | 16.35 | 249.95 | -0.20 | 0.87 | 0.2246 | 932.0 | 765.0 | |
| 0.00 | 0.91 | 0.00 | 0.46 | 16.73 | 249.57 | -0.58 | 2.43 | 0.2312 | 944.0 | 833.2 | |
| 0.00 | 1.54 | 0.00 | 0.79 | 16.70 | 249.38 | -0.78 | 3.23 | 0.2308 | 739.0 | 656.7 | |
| 0.00 | 2.09 | 0.00 | 1.05 | 13.68 | 248.76 | -1.40 | 7.58 | 0.1802 | 815.0 | 708.3 | |
| 0.00 | 1.18 | 0.00 | 0.60 | 16.01 | 246.88 | -3.28 | 14.17 | 0.2256 | 734.0 | 538.5 | |
| 0.00 | 1.00 | 0.00 | 0.51 | 18.14 | 246.78 | -3.38 | 12.44 | 0.2612 | 790.0 | 615.7 | |
| 0.00 | 4.82 | 0.00 | 2.45 | 15.60 | 246.12 | -4.03 | 17.82 | 0.2225 | 631.0 | 627.8 | |
| 0.00 | 1.54 | 0.00 | 0.80 | 18.70 | 244.60 | -5.55 | 19.17 | 0.2803 | 759.0 | 521.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
