SDO HMI 2014-07-06 08:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 111.94 | 685.16 | 60.42 | 370.04 | -19.23 | 255.76 | 5.60 | 193.38 | 0.3989 | 687.2 | 339.9 | |
|
previous
or next observation for the same group /

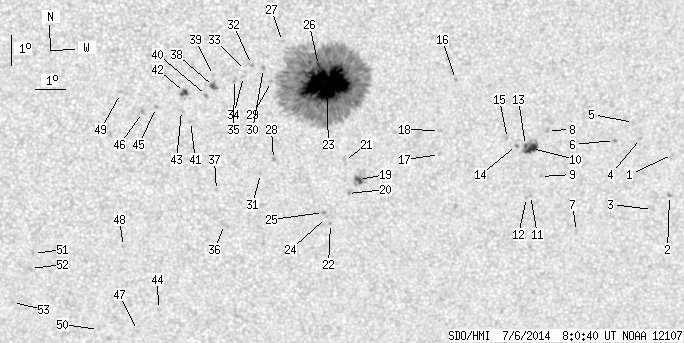

back to the solar disc SDO HMI 2014-07-06 08:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.18 | 0.00 | 0.68 | -21.39 | 267.31 | 17.16 | 213.35 | 0.5016 | 713.0 | 510.9 | |
| 0.00 | 1.82 | 0.00 | 1.05 | -22.78 | 267.38 | 17.23 | 211.87 | 0.5192 | 769.0 | 591.2 | |
| 0.00 | 1.09 | 0.00 | 0.63 | -23.24 | 266.86 | 16.70 | 210.59 | 0.5209 | 633.0 | 549.8 | |
| 0.00 | 1.18 | 0.00 | 0.67 | -20.83 | 266.16 | 16.00 | 212.22 | 0.4852 | 741.0 | 665.9 | |
| 0.00 | 0.91 | 0.00 | 0.51 | -20.29 | 265.86 | 15.71 | 212.39 | 0.4760 | 794.0 | 664.3 | |
| 0.00 | 1.27 | 0.00 | 0.72 | -20.88 | 265.28 | 15.13 | 210.74 | 0.4788 | 818.0 | 731.1 | |
| 0.00 | 1.54 | 0.00 | 0.89 | -23.95 | 264.32 | 14.16 | 206.00 | 0.5119 | 728.0 | 577.6 | |
| 0.00 | 2.00 | 0.00 | 1.11 | -20.51 | 263.00 | 12.84 | 207.23 | 0.4568 | 927.0 | 755.0 | |
| 0.00 | 0.73 | 0.00 | 0.41 | -22.06 | 262.90 | 12.74 | 205.48 | 0.4771 | 716.0 | 523.2 | |
| 6.63 | 16.63 | 3.70 | 9.27 | -21.11 | 262.51 | 12.36 | 205.74 | 0.4615 | 930.4 | 762.7 | |
| 0.00 | 1.00 | 0.00 | 0.57 | -22.69 | 262.62 | 12.46 | 204.39 | 0.4841 | 615.0 | 546.1 | |
| 0.00 | 1.09 | 0.00 | 0.62 | -22.76 | 262.49 | 12.33 | 204.10 | 0.4841 | 576.0 | 446.9 | |
| 0.91 | -10.00 | 0.51 | -10.00 | -21.00 | 262.30 | 12.15 | 205.47 | 0.4587 | 929.1 | 999999 | |
| 0.00 | 1.27 | 0.00 | 0.71 | -21.00 | 262.00 | 11.85 | 204.92 | 0.4567 | 618.0 | 601.1 | |
| 0.00 | 0.73 | 0.00 | 0.40 | -20.76 | 261.68 | 11.53 | 204.57 | 0.4512 | 782.0 | 548.9 | |
| 0.00 | 1.18 | 0.00 | 0.64 | -18.78 | 259.84 | 9.68 | 202.88 | 0.4112 | -856.0 | -712.2 | |
| 0.00 | 0.82 | 0.00 | 0.45 | -21.27 | 259.46 | 9.30 | 199.86 | 0.4454 | 695.0 | 476.8 | |
| 0.00 | 1.64 | 0.00 | 0.90 | -20.46 | 259.41 | 9.25 | 200.43 | 0.4333 | -610.0 | -484.1 | |
| 3.00 | 8.72 | 1.66 | 4.82 | -22.08 | 256.82 | 6.66 | 194.03 | 0.4455 | -1052.7 | -709.1 | |
| 0.00 | 0.36 | 0.00 | 0.20 | -22.56 | 256.48 | 6.32 | 193.07 | 0.4514 | -615.0 | -656.5 | |
| 0.00 | 3.09 | 0.00 | 1.70 | -21.44 | 256.33 | 6.17 | 193.40 | 0.4338 | -672.0 | -462.0 | |
| 0.00 | 0.91 | 0.00 | 0.51 | -23.57 | 255.96 | 5.80 | 191.53 | 0.4651 | -784.0 | -675.2 | |
| 95.50 | 586.15 | 51.38 | 315.36 | -18.87 | 255.65 | 5.49 | 193.43 | 0.3916 | 1508.9 | 417.5 | |
| 0.00 | 0.64 | 0.00 | 0.35 | -23.37 | 255.81 | 5.66 | 191.35 | 0.4615 | -740.0 | -665.7 | |
| 0.00 | 1.54 | 0.00 | 0.86 | -23.20 | 255.71 | 5.55 | 191.22 | 0.4586 | -969.0 | -898.5 | |
| 1.54 | -23.00 | 0.83 | -23.00 | -18.28 | 255.37 | 5.22 | 193.14 | 0.3813 | 1450.4 | 999999 | |
| 0.00 | 0.91 | 0.00 | 0.48 | -17.48 | 254.20 | 4.04 | 190.66 | 0.3647 | -595.0 | -421.0 | |
| 0.00 | 1.91 | 0.00 | 1.04 | -21.39 | 254.00 | 3.84 | 188.45 | 0.4261 | 735.0 | 633.0 | |
| 0.00 | 1.18 | 0.00 | 0.63 | -18.79 | 253.87 | 3.71 | 189.21 | 0.3847 | 645.0 | 455.8 | |
| 0.00 | 1.73 | 0.00 | 0.92 | -18.36 | 253.60 | 3.45 | 188.74 | 0.3772 | 841.0 | 609.8 | |
| 0.00 | 1.09 | 0.00 | 0.60 | -21.86 | 253.58 | 3.42 | 187.39 | 0.4325 | -929.0 | -708.6 | |
| 0.00 | 1.64 | 0.00 | 0.87 | -18.23 | 253.22 | 3.06 | 187.82 | 0.3742 | -563.0 | -527.8 | |
| 0.00 | 0.36 | 0.00 | 0.19 | -18.43 | 253.03 | 2.87 | 187.27 | 0.3769 | -230.0 | -305.0 | |
| 0.00 | 1.45 | 0.00 | 0.78 | -18.62 | 252.96 | 2.81 | 187.05 | 0.3800 | -617.0 | -478.1 | |
| 0.00 | 2.45 | 0.00 | 1.31 | -18.72 | 252.68 | 2.52 | 186.30 | 0.3810 | 470.0 | 366.1 | |
| 0.00 | 4.45 | 0.00 | 2.48 | -23.59 | 252.42 | 2.26 | 184.56 | 0.4576 | -739.0 | -461.5 | |
| 0.00 | 1.00 | 0.00 | 0.55 | -22.43 | 252.14 | 1.98 | 184.19 | 0.4392 | -789.0 | -616.6 | |
| 1.91 | 5.27 | 1.02 | 2.82 | -18.95 | 252.00 | 1.84 | 184.57 | 0.3836 | -972.6 | -734.1 | |
| 0.00 | 1.09 | 0.00 | 0.58 | -18.59 | 252.00 | 1.84 | 184.64 | 0.3778 | -817.0 | -592.3 | |
| 0.00 | 1.54 | 0.00 | 0.83 | -19.25 | 251.78 | 1.62 | 183.96 | 0.3882 | 707.0 | 590.3 | |
| 0.00 | 1.54 | 0.00 | 0.83 | -20.11 | 251.27 | 1.11 | 182.61 | 0.4015 | -589.0 | -532.4 | |
| 2.45 | 4.54 | 1.32 | 2.44 | -19.15 | 251.07 | 0.91 | 182.24 | 0.3859 | -1006.1 | -799.5 | |
| 0.00 | 2.45 | 0.00 | 1.32 | -19.74 | 250.97 | 0.82 | 181.95 | 0.3954 | -842.0 | -613.8 | |
| 0.00 | 1.36 | 0.00 | 0.78 | -26.54 | 250.22 | 0.07 | 180.12 | 0.5015 | -671.0 | -516.3 | |
| 0.00 | 1.18 | 0.00 | 0.64 | -19.64 | 250.16 | 0.01 | 180.02 | 0.3936 | -896.0 | -778.5 | |
| 0.00 | 1.82 | 0.00 | 0.98 | -19.81 | 249.71 | -0.45 | 178.93 | 0.3963 | -890.0 | -752.5 | |
| 0.00 | 1.45 | 0.00 | 0.84 | -27.28 | 249.50 | -0.65 | 178.86 | 0.5128 | -545.0 | -448.3 | |
| 0.00 | 1.27 | 0.00 | 0.71 | -24.34 | 249.05 | -1.10 | 177.84 | 0.4682 | -772.0 | -603.3 | |
| 0.00 | 0.45 | 0.00 | 0.24 | -19.18 | 249.00 | -1.15 | 177.17 | 0.3866 | -422.0 | -515.0 | |
| 0.00 | 0.91 | 0.00 | 0.52 | -27.24 | 248.17 | -1.99 | 176.53 | 0.5131 | -609.0 | -523.2 | |
| 0.00 | 1.45 | 0.00 | 0.82 | -24.58 | 246.03 | -4.13 | 172.07 | 0.4761 | -773.0 | -616.9 | |
| 0.00 | 2.00 | 0.00 | 1.13 | -25.11 | 245.91 | -4.25 | 172.01 | 0.4842 | -701.0 | -531.5 | |
| 0.00 | 1.18 | 0.00 | 0.68 | -26.30 | 245.25 | -4.90 | 171.21 | 0.5036 | -742.0 | -626.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
