SDO HMI 2014-07-06 08:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 352.38 | 1674.58 | 181.44 | 862.31 | -7.33 | 238.94 | -11.22 | 134.88 | 0.2715 | 1.5 | 41.3 | |
|
previous
or next observation for the same group /

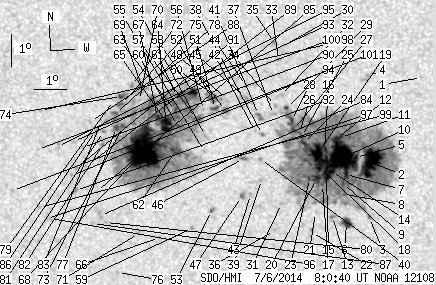

back to the solar disc SDO HMI 2014-07-06 08:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.00 | 0.00 | 0.50 | -5.04 | 244.39 | -5.77 | 145.75 | 0.1787 | 830.0 | 628.5 | |
| 36.62 | 824.12 | 18.64 | 420.67 | -7.68 | 242.78 | -7.38 | 146.49 | 0.2316 | 1438.2 | 475.1 | |
| 0.45 | 1.45 | 0.23 | 0.75 | -9.39 | 242.71 | -7.45 | 150.00 | 0.2569 | -678.2 | -558.9 | |
| 0.00 | 6.45 | 0.00 | 3.26 | -5.02 | 242.73 | -7.43 | 138.67 | 0.1960 | -798.0 | -493.0 | |
| 3.63 | -2.00 | 1.85 | -2.00 | -7.53 | 242.31 | -7.84 | 144.49 | 0.2339 | 1300.4 | 999999 | |
| 7.00 | 9.09 | 3.59 | 4.67 | -9.55 | 241.99 | -8.17 | 147.99 | 0.2655 | 1003.3 | 710.2 | |
| 3.36 | -2.00 | 1.72 | -2.00 | -8.06 | 241.99 | -8.16 | 144.70 | 0.2444 | 955.8 | 999999 | |
| 1.09 | -2.00 | 0.56 | -2.00 | -8.68 | 241.95 | -8.21 | 146.00 | 0.2535 | 826.0 | 999999 | |
| 2.09 | -2.00 | 1.07 | -2.00 | -8.34 | 241.89 | -8.26 | 145.04 | 0.2493 | 654.3 | 999999 | |
| 61.88 | -2.00 | 31.56 | -2.00 | -7.56 | 241.85 | -8.31 | 143.00 | 0.2391 | 1478.9 | 999999 | |
| 2.09 | -2.00 | 1.06 | -2.00 | -6.91 | 241.86 | -8.30 | 141.32 | 0.2302 | 1351.3 | 999999 | |
| 2.36 | -2.00 | 1.20 | -2.00 | -6.94 | 241.74 | -8.42 | 140.99 | 0.2320 | 1298.0 | 999999 | |
| 0.00 | 2.09 | 0.00 | 1.07 | -9.37 | 241.56 | -8.60 | 146.26 | 0.2669 | 868.0 | 617.0 | |
| 3.63 | -2.00 | 1.86 | -2.00 | -7.97 | 241.56 | -8.60 | 143.07 | 0.2475 | 1153.2 | 999999 | |
| 6.54 | -2.00 | 3.35 | -2.00 | -8.12 | 241.40 | -8.76 | 142.95 | 0.2513 | 1057.9 | 999999 | |
| 5.63 | -2.00 | 2.87 | -2.00 | -7.28 | 241.36 | -8.80 | 140.68 | 0.2406 | 1305.1 | 999999 | |
| 0.27 | -2.00 | 0.14 | -2.00 | -8.37 | 241.27 | -8.89 | 143.14 | 0.2560 | 830.7 | 999999 | |
| 5.91 | -2.00 | 3.02 | -2.00 | -7.84 | 241.19 | -8.97 | 141.60 | 0.2497 | 1135.7 | 999999 | |
| 20.26 | -2.00 | 10.35 | -2.00 | -7.41 | 241.14 | -9.02 | 140.32 | 0.2446 | 1309.7 | 999999 | |
| 5.09 | -2.00 | 2.61 | -2.00 | -8.19 | 241.09 | -9.07 | 142.14 | 0.2554 | 984.9 | 999999 | |
| 0.00 | 0.73 | 0.00 | 0.37 | -9.25 | 241.03 | -9.13 | 144.41 | 0.2703 | 532.0 | 425.2 | |
| 0.00 | 3.54 | 0.00 | 1.83 | -9.87 | 240.88 | -9.27 | 145.32 | 0.2802 | 638.0 | 573.5 | |
| 1.91 | -2.00 | 0.98 | -2.00 | -8.19 | 240.87 | -9.29 | 141.48 | 0.2577 | 814.5 | 999999 | |
| 1.91 | -2.00 | 0.97 | -2.00 | -7.07 | 240.71 | -9.45 | 138.09 | 0.2450 | 957.0 | 999999 | |
| 1.64 | -2.00 | 0.84 | -2.00 | -6.89 | 240.65 | -9.51 | 137.40 | 0.2434 | 888.5 | 999999 | |
| 0.27 | -2.00 | 0.14 | -2.00 | -6.76 | 240.59 | -9.57 | 136.88 | 0.2425 | 1098.7 | 999999 | |
| 1.82 | -2.00 | 0.93 | -2.00 | -6.67 | 240.40 | -9.75 | 136.07 | 0.2436 | 927.7 | 999999 | |
| 1.91 | -2.00 | 0.97 | -2.00 | -6.39 | 240.35 | -9.81 | 135.09 | 0.2409 | 880.4 | 999999 | |
| 1.36 | -2.00 | 0.70 | -2.00 | -6.03 | 240.20 | -9.96 | 133.55 | 0.2383 | -781.1 | 999999 | |
| 0.00 | 1.00 | 0.00 | 0.51 | -4.05 | 240.20 | -9.95 | 126.89 | 0.2166 | 807.0 | 666.6 | |
| 0.00 | 1.36 | 0.00 | 0.70 | -8.98 | 239.97 | -10.19 | 140.78 | 0.2775 | -312.0 | -299.5 | |
| 0.00 | 3.45 | 0.00 | 1.76 | -5.63 | 240.02 | -10.14 | 131.79 | 0.2359 | 567.0 | 505.9 | |
| 0.00 | 1.45 | 0.00 | 0.74 | -4.52 | 239.98 | -10.18 | 127.95 | 0.2244 | 1064.0 | 810.8 | |
| 0.00 | 1.45 | 0.00 | 0.74 | -5.94 | 239.86 | -10.30 | 132.31 | 0.2415 | 914.0 | 662.9 | |
| 0.00 | 1.27 | 0.00 | 0.65 | -3.99 | 239.86 | -10.30 | 125.75 | 0.2207 | 944.0 | 817.1 | |
| 0.00 | 1.09 | 0.00 | 0.56 | -9.82 | 239.72 | -10.43 | 142.00 | 0.2911 | 724.0 | 563.2 | |
| 0.00 | 2.54 | 0.00 | 1.30 | -6.21 | 239.79 | -10.37 | 132.97 | 0.2456 | 920.0 | 679.1 | |
| 0.36 | 2.18 | 0.19 | 1.12 | -6.84 | 239.43 | -10.72 | 133.82 | 0.2572 | 751.8 | 575.8 | |
| 0.00 | 1.82 | 0.00 | 0.94 | -8.23 | 239.37 | -10.79 | 137.36 | 0.2747 | 629.0 | 527.0 | |
| 0.00 | 1.64 | 0.00 | 0.84 | -7.61 | 239.35 | -10.81 | 135.72 | 0.2673 | -957.0 | -674.5 | |
| 0.55 | 4.72 | 0.28 | 2.42 | -6.22 | 239.32 | -10.83 | 131.73 | 0.2515 | 790.8 | 628.8 | |
| 0.00 | 1.00 | 0.00 | 0.51 | -6.75 | 239.22 | -10.94 | 132.99 | 0.2588 | 520.0 | 336.4 | |
| 0.00 | 2.36 | 0.00 | 1.22 | -8.71 | 239.01 | -11.15 | 137.58 | 0.2846 | 1011.0 | 663.9 | |
| 0.00 | 1.18 | 0.00 | 0.60 | -5.33 | 238.97 | -11.19 | 128.04 | 0.2464 | 928.0 | 682.9 | |
| 0.00 | 1.82 | 0.00 | 0.93 | -5.70 | 238.93 | -11.23 | 129.12 | 0.2509 | 834.0 | 685.6 | |
| 0.64 | 4.82 | 0.33 | 2.48 | -7.59 | 238.82 | -11.34 | 134.28 | 0.2734 | -924.3 | -611.4 | |
| 0.82 | 4.09 | 0.42 | 2.11 | -8.77 | 238.72 | -11.44 | 137.01 | 0.2887 | 874.1 | 754.8 | |
| 0.00 | 0.91 | 0.00 | 0.47 | -5.77 | 238.33 | -11.82 | 127.89 | 0.2595 | -546.0 | -357.1 | |
| 1.64 | 4.00 | 0.84 | 2.05 | -6.11 | 238.29 | -11.86 | 128.82 | 0.2635 | -1012.4 | -715.1 | |
| 0.00 | 1.18 | 0.00 | 0.61 | -5.77 | 238.15 | -12.01 | 127.46 | 0.2620 | -1067.0 | -849.4 | |
| 1.91 | 7.91 | 0.98 | 4.06 | -6.05 | 237.98 | -12.17 | 127.93 | 0.2671 | -1120.7 | -384.4 | |
| 3.27 | 8.72 | 1.68 | 4.48 | -5.74 | 237.90 | -12.26 | 126.80 | 0.2651 | -1214.1 | -921.9 | |
| 0.64 | 2.91 | 0.33 | 1.51 | -9.22 | 237.76 | -12.40 | 135.77 | 0.3051 | 899.3 | 756.9 | |
| 0.00 | 3.91 | 0.00 | 2.02 | -6.89 | 237.65 | -12.51 | 129.58 | 0.2803 | -181.0 | -263.5 | |
| 0.00 | 1.09 | 0.00 | 0.56 | -7.38 | 237.60 | -12.56 | 130.83 | 0.2862 | -722.0 | -486.8 | |
| 0.00 | 1.09 | 0.00 | 0.56 | -6.08 | 237.60 | -12.55 | 127.18 | 0.2725 | -615.0 | -515.7 | |
| 3.63 | 693.37 | 1.87 | 360.29 | -6.36 | 237.38 | -12.78 | 127.51 | 0.2783 | -829.8 | -407.8 | |
| 5.82 | -57.00 | 2.99 | -57.00 | -5.56 | 237.30 | -12.85 | 124.97 | 0.2714 | 1025.8 | 999999 | |
| 0.00 | 1.27 | 0.00 | 0.66 | -9.79 | 237.10 | -13.05 | 135.59 | 0.3195 | -1005.0 | -774.6 | |
| 3.00 | -57.00 | 1.55 | -57.00 | -6.59 | 236.77 | -13.38 | 126.87 | 0.2887 | -1067.7 | 999999 | |
| 0.55 | -57.00 | 0.28 | -57.00 | -5.69 | 236.80 | -13.36 | 124.33 | 0.2797 | 685.3 | 999999 | |
| 9.00 | -57.00 | 4.67 | -57.00 | -7.36 | 236.69 | -13.47 | 128.80 | 0.2977 | -766.8 | 999999 | |
| 2.36 | -57.00 | 1.22 | -57.00 | -6.13 | 236.72 | -13.43 | 125.45 | 0.2848 | -1198.4 | 999999 | |
| 6.00 | -57.00 | 3.11 | -57.00 | -6.69 | 236.42 | -13.73 | 126.43 | 0.2944 | -1384.9 | 999999 | |
| 9.99 | -57.00 | 5.18 | -57.00 | -6.47 | 236.43 | -13.73 | 125.84 | 0.2922 | -1426.1 | 999999 | |
| 0.00 | 0.91 | 0.00 | 0.48 | -10.09 | 236.07 | -14.09 | 134.08 | 0.3350 | -867.0 | -605.3 | |
| 2.18 | -57.00 | 1.13 | -57.00 | -6.35 | 236.15 | -14.01 | 124.95 | 0.2948 | -1268.0 | 999999 | |
| 111.94 | -57.00 | 58.31 | -57.00 | -7.32 | 235.74 | -14.42 | 126.78 | 0.3097 | -1355.1 | 999999 | |
| 0.55 | 12.27 | 0.28 | 6.36 | -5.43 | 235.70 | -14.46 | 121.48 | 0.2927 | -1179.3 | -706.7 | |
| 0.00 | 1.36 | 0.00 | 0.71 | -5.83 | 235.59 | -14.56 | 122.46 | 0.2978 | -218.0 | -240.6 | |
| 0.00 | 1.18 | 0.00 | 0.62 | -9.97 | 235.41 | -14.75 | 132.51 | 0.3417 | -834.0 | -634.2 | |
| 0.00 | 2.09 | 0.00 | 1.08 | -5.37 | 235.35 | -14.80 | 120.71 | 0.2972 | -1185.0 | -952.4 | |
| 1.82 | -57.00 | 0.95 | -57.00 | -6.64 | 235.03 | -15.13 | 123.71 | 0.3130 | -1157.8 | 999999 | |
| 2.00 | -57.00 | 1.04 | -57.00 | -5.72 | 235.03 | -15.13 | 121.15 | 0.3048 | -1022.9 | 999999 | |
| 1.18 | -57.00 | 0.61 | -57.00 | -5.96 | 234.99 | -15.17 | 121.78 | 0.3075 | -1173.2 | 999999 | |
| 0.00 | 1.18 | 0.00 | 0.63 | -11.21 | 234.67 | -15.49 | 133.73 | 0.3641 | -743.0 | -596.8 | |
| 2.45 | -57.00 | 1.28 | -57.00 | -6.68 | 234.84 | -15.32 | 123.47 | 0.3159 | -1004.9 | 999999 | |
| 1.36 | -57.00 | 0.71 | -57.00 | -6.25 | 234.82 | -15.34 | 122.27 | 0.3123 | -1015.2 | 999999 | |
| 0.00 | 1.54 | 0.00 | 0.80 | -5.84 | 234.77 | -15.39 | 121.08 | 0.3096 | -262.0 | -346.6 | |
| 0.00 | 1.27 | 0.00 | 0.67 | -9.64 | 234.36 | -15.79 | 129.85 | 0.3511 | -943.0 | -719.8 | |
| 0.00 | 2.36 | 0.00 | 1.24 | -6.81 | 234.42 | -15.74 | 123.10 | 0.3229 | -943.0 | -753.7 | |
| 0.00 | 2.09 | 0.00 | 1.09 | -7.18 | 234.41 | -15.75 | 124.04 | 0.3265 | -954.0 | -797.0 | |
| 0.00 | 1.36 | 0.00 | 0.71 | -6.47 | 234.37 | -15.79 | 122.12 | 0.3206 | -517.0 | -513.4 | |
| 0.00 | 2.91 | 0.00 | 1.54 | -9.42 | 234.21 | -15.94 | 129.11 | 0.3507 | -787.0 | -785.4 | |
| 0.00 | 0.82 | 0.00 | 0.43 | -8.68 | 234.12 | -16.04 | 127.23 | 0.3445 | -898.0 | -706.2 | |
| 0.00 | 3.82 | 0.00 | 2.00 | -6.78 | 234.16 | -15.99 | 122.61 | 0.3262 | -814.0 | -641.4 | |
| 0.00 | 1.27 | 0.00 | 0.67 | -9.68 | 233.94 | -16.21 | 129.20 | 0.3568 | -645.0 | -512.6 | |
| 0.00 | 1.64 | 0.00 | 0.86 | -6.51 | 234.01 | -16.14 | 121.65 | 0.3259 | -617.0 | -518.1 | |
| 0.00 | 1.00 | 0.00 | 0.53 | -7.90 | 233.80 | -16.36 | 124.85 | 0.3414 | -914.0 | -772.7 | |
| 0.00 | 1.36 | 0.00 | 0.72 | -7.32 | 233.73 | -16.43 | 123.27 | 0.3370 | -874.0 | -647.6 | |
| 0.00 | 2.00 | 0.00 | 1.05 | -7.94 | 233.51 | -16.65 | 124.46 | 0.3456 | -1003.0 | -780.4 | |
| 0.00 | 2.82 | 0.00 | 1.49 | -8.66 | 233.45 | -16.71 | 126.06 | 0.3532 | -861.0 | -720.0 | |
| 0.00 | 2.64 | 0.00 | 1.39 | -7.13 | 233.45 | -16.71 | 122.38 | 0.3393 | -756.0 | -576.9 | |
| 0.00 | 1.09 | 0.00 | 0.58 | -8.19 | 233.34 | -16.82 | 124.79 | 0.3502 | -948.0 | -769.4 | |
| 0.00 | 3.18 | 0.00 | 1.68 | -7.30 | 232.93 | -17.23 | 121.99 | 0.3479 | -611.0 | -630.2 | |
| 0.00 | 1.73 | 0.00 | 0.92 | -9.55 | 232.59 | -17.57 | 126.70 | 0.3728 | -810.0 | -549.2 | |
| 0.00 | 1.45 | 0.00 | 0.78 | -9.55 | 232.46 | -17.70 | 126.51 | 0.3745 | -702.0 | -599.7 | |
| 0.00 | 1.45 | 0.00 | 0.77 | -6.19 | 232.42 | -17.74 | 118.49 | 0.3461 | -762.0 | -637.2 | |
| 0.00 | 0.91 | 0.00 | 0.49 | -9.21 | 232.25 | -17.90 | 125.44 | 0.3741 | -825.0 | -654.8 | |
| 0.00 | 1.27 | 0.00 | 0.67 | -7.40 | 232.28 | -17.88 | 121.30 | 0.3579 | -714.0 | -443.7 | |
| 0.00 | 1.54 | 0.00 | 0.83 | -8.69 | 231.40 | -18.75 | 123.07 | 0.3809 | -721.0 | -470.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
