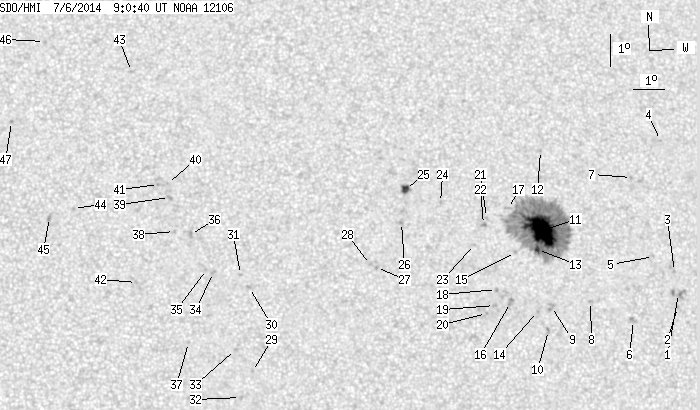

SDO HMI 2014-07-06 09:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 49.06 | 367.99 | 25.37 | 190.13 | 15.05 | 260.83 | 11.22 | 318.26 | 0.2824 | -376.0 | -351.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-06 09:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 9.09 | 0.00 | 4.76 | 13.21 | 266.07 | 16.46 | 301.98 | 0.3266 | -772.0 | -775.2 | |
| 0.00 | 1.36 | 0.00 | 0.71 | 12.78 | 266.00 | 16.39 | 300.90 | 0.3222 | -797.0 | -642.0 | |
| 0.00 | 1.00 | 0.00 | 0.52 | 13.90 | 265.99 | 16.38 | 303.90 | 0.3312 | -821.0 | -639.3 | |
| 0.00 | 0.91 | 0.00 | 0.48 | 17.99 | 265.87 | 16.26 | 313.60 | 0.3693 | -885.0 | -730.4 | |
| 0.00 | 0.91 | 0.00 | 0.48 | 14.37 | 265.33 | 15.72 | 306.16 | 0.3266 | -704.0 | -583.3 | |
| 0.00 | 3.54 | 0.00 | 1.84 | 12.40 | 264.55 | 14.94 | 302.08 | 0.2985 | -956.0 | -767.0 | |
| 0.00 | 1.36 | 0.00 | 0.72 | 16.85 | 264.81 | 15.20 | 313.00 | 0.3445 | -622.0 | -446.9 | |
| 0.00 | 1.82 | 0.00 | 0.94 | 13.01 | 263.20 | 13.59 | 306.26 | 0.2852 | -944.0 | -678.2 | |
| 0.00 | 3.82 | 0.00 | 1.96 | 12.88 | 261.94 | 12.33 | 308.45 | 0.2671 | -588.0 | -719.3 | |
| 0.00 | 1.82 | 0.00 | 0.93 | 12.14 | 261.81 | 12.20 | 306.45 | 0.2580 | -884.0 | -744.5 | |
| 42.61 | 282.58 | 22.05 | 146.28 | 15.24 | 261.75 | 12.14 | 315.40 | 0.2903 | -1504.7 | -458.3 | |
| 0.00 | 0.91 | 0.00 | 0.48 | 17.74 | 261.88 | 12.27 | 320.81 | 0.3218 | 806.0 | 640.9 | |
| 2.54 | -11.00 | 1.31 | -11.00 | 14.65 | 261.59 | 11.98 | 314.26 | 0.2816 | -1151.6 | 999999 | |
| 0.00 | 1.18 | 0.00 | 0.61 | 12.73 | 261.49 | 11.88 | 309.02 | 0.2596 | -838.0 | -754.5 | |
| 0.00 | 1.64 | 0.00 | 0.84 | 14.56 | 260.88 | 11.27 | 315.75 | 0.2722 | -960.0 | -755.7 | |
| 0.00 | 3.63 | 0.00 | 1.86 | 13.02 | 260.64 | 11.03 | 311.94 | 0.2517 | -804.0 | -825.2 | |
| 0.00 | 2.82 | 0.00 | 1.46 | 15.94 | 260.73 | 11.12 | 319.55 | 0.2871 | -739.0 | -628.2 | |
| 0.00 | 1.73 | 0.00 | 0.88 | 13.42 | 260.21 | 10.60 | 314.26 | 0.2510 | -806.0 | -710.8 | |
| 0.00 | 1.82 | 0.00 | 0.93 | 12.93 | 260.13 | 10.52 | 313.00 | 0.2443 | -824.0 | -691.0 | |
| 0.00 | 1.00 | 0.00 | 0.51 | 12.69 | 259.86 | 10.25 | 312.95 | 0.2383 | -809.0 | -722.6 | |
| 0.00 | 1.09 | 0.00 | 0.56 | 15.66 | 260.00 | 10.39 | 320.77 | 0.2759 | 382.0 | 272.1 | |
| 0.00 | 2.45 | 0.00 | 1.26 | 15.45 | 259.89 | 10.29 | 320.53 | 0.2719 | 930.0 | 723.3 | |
| 0.00 | 1.27 | 0.00 | 0.65 | 14.83 | 259.58 | 9.97 | 319.86 | 0.2607 | -829.0 | -661.9 | |
| 0.00 | 1.27 | 0.00 | 0.65 | 16.15 | 258.55 | 8.94 | 325.94 | 0.2676 | 597.0 | 505.5 | |
| 3.91 | 5.91 | 2.01 | 3.03 | 16.57 | 257.44 | 7.83 | 330.15 | 0.2637 | 1084.8 | 788.2 | |
| 0.00 | 2.18 | 0.00 | 1.11 | 15.54 | 257.27 | 7.66 | 328.55 | 0.2474 | 901.0 | 676.2 | |
| 0.00 | 0.91 | 0.00 | 0.46 | 14.14 | 256.43 | 6.82 | 328.26 | 0.2199 | 844.0 | 683.8 | |
| 0.00 | 1.54 | 0.00 | 0.78 | 14.24 | 256.24 | 6.63 | 329.20 | 0.2196 | 809.0 | 556.1 | |
| 0.00 | 1.09 | 0.00 | 0.55 | 10.96 | 252.48 | 2.87 | 339.44 | 0.1405 | 808.0 | 683.8 | |
| 0.00 | 1.91 | 0.00 | 0.96 | 13.55 | 252.42 | 2.81 | 344.84 | 0.1828 | 816.0 | 652.8 | |
| 0.00 | 1.18 | 0.00 | 0.60 | 13.95 | 252.14 | 2.53 | 346.80 | 0.1884 | 922.0 | 688.3 | |
| 0.00 | 1.45 | 0.00 | 0.73 | 10.16 | 252.10 | 2.49 | 339.96 | 0.1252 | 868.0 | 783.7 | |
| 0.00 | 1.09 | 0.00 | 0.55 | 11.64 | 251.96 | 2.35 | 344.30 | 0.1489 | 916.0 | 767.2 | |
| 0.00 | 2.00 | 0.00 | 1.01 | 14.02 | 251.29 | 1.68 | 351.19 | 0.1867 | 758.0 | 648.3 | |
| 0.00 | 1.09 | 0.00 | 0.55 | 14.11 | 251.07 | 1.46 | 352.40 | 0.1877 | 811.0 | 703.2 | |
| 0.00 | 2.91 | 0.00 | 1.47 | 15.20 | 250.57 | 0.96 | 355.44 | 0.2054 | 864.0 | 669.1 | |
| 0.00 | 1.18 | 0.00 | 0.59 | 11.86 | 250.49 | 0.88 | 354.11 | 0.1479 | 700.0 | 474.1 | |
| 0.00 | 1.45 | 0.00 | 0.74 | 15.29 | 250.07 | 0.46 | 357.84 | 0.2065 | 744.0 | 529.1 | |
| 0.00 | 2.63 | 0.00 | 1.34 | 16.35 | 249.91 | 0.30 | 358.69 | 0.2246 | 910.0 | 710.7 | |
| 0.00 | 0.82 | 0.00 | 0.42 | 16.79 | 249.85 | 0.24 | 359.00 | 0.2321 | 642.0 | 551.4 | |
| 0.00 | 1.00 | 0.00 | 0.51 | 16.76 | 249.56 | -0.04 | 0.19 | 0.2315 | 969.0 | 776.8 | |
| 0.00 | 1.18 | 0.00 | 0.59 | 13.71 | 248.87 | -0.74 | 4.01 | 0.1796 | 869.0 | 717.3 | |
| 0.00 | 1.73 | 0.00 | 0.89 | 20.33 | 248.69 | -0.92 | 2.96 | 0.2923 | 750.0 | 547.3 | |
| 0.00 | 1.27 | 0.00 | 0.65 | 16.01 | 246.87 | -2.74 | 11.92 | 0.2236 | 836.0 | 622.6 | |
| 0.00 | 2.18 | 0.00 | 1.11 | 15.73 | 246.11 | -3.50 | 15.42 | 0.2219 | 950.0 | 760.6 | |
| 0.00 | 1.09 | 0.00 | 0.57 | 21.29 | 245.84 | -3.77 | 11.30 | 0.3141 | 656.0 | 446.6 | |
| 0.00 | 1.18 | 0.00 | 0.61 | 18.74 | 244.83 | -4.78 | 16.63 | 0.2769 | 947.0 | 733.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
