SDO HMI 2014-07-06 09:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 8.37 | 52.07 | 4.60 | 29.26 | -16.83 | 231.25 | -18.36 | 140.22 | 0.4568 | -194.3 | -124.9 | |
|
previous
or next observation for the same group /

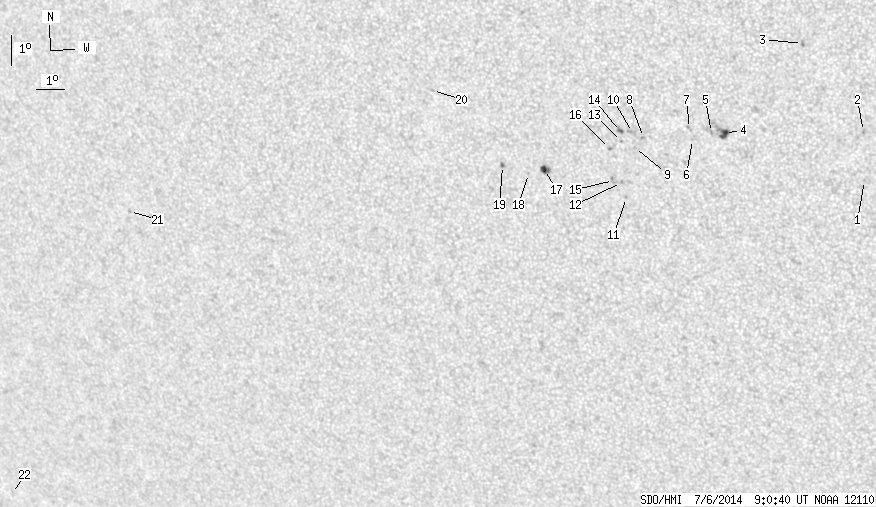

back to the solar disc SDO HMI 2014-07-06 09:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.82 | 0.00 | 0.44 | -17.08 | 240.46 | -9.15 | 156.51 | 0.3829 | 657.0 | 558.9 | |
| 0.00 | 1.09 | 0.00 | 0.58 | -15.49 | 240.50 | -9.11 | 154.77 | 0.3593 | 900.0 | 791.2 | |
| 0.00 | 1.82 | 0.00 | 0.95 | -12.69 | 238.68 | -10.93 | 146.25 | 0.3343 | 903.0 | 768.7 | |
| 4.00 | 11.54 | 2.16 | 6.23 | -15.60 | 236.01 | -13.60 | 145.10 | 0.3975 | 940.5 | 781.1 | |
| 0.00 | 1.36 | 0.00 | 0.74 | -15.58 | 235.59 | -14.02 | 144.24 | 0.4011 | 631.0 | 474.1 | |
| 0.00 | 1.18 | 0.00 | 0.64 | -15.81 | 234.95 | -14.66 | 143.39 | 0.4101 | 525.0 | 402.8 | |
| 0.00 | 2.00 | 0.00 | 1.08 | -15.46 | 234.88 | -14.73 | 142.72 | 0.4063 | 513.0 | 598.7 | |
| 0.00 | 1.73 | 0.00 | 0.94 | -15.77 | 233.34 | -16.27 | 140.47 | 0.4253 | -853.0 | -603.8 | |
| 0.00 | 1.00 | 0.00 | 0.55 | -16.10 | 233.02 | -16.59 | 140.43 | 0.4325 | -750.0 | -651.5 | |
| 0.00 | 4.18 | 0.00 | 2.29 | -15.62 | 232.99 | -16.62 | 139.64 | 0.4271 | -945.0 | -598.9 | |
| 0.00 | 1.18 | 0.00 | 0.66 | -17.73 | 232.60 | -17.01 | 142.15 | 0.4561 | -750.0 | -653.8 | |
| 0.00 | 1.27 | 0.00 | 0.71 | -17.25 | 232.48 | -17.13 | 141.26 | 0.4514 | -937.0 | -729.7 | |
| 0.00 | 0.82 | 0.00 | 0.45 | -15.91 | 232.60 | -17.01 | 139.45 | 0.4345 | -803.0 | -686.0 | |
| 0.82 | 3.45 | 0.45 | 1.89 | -15.59 | 232.60 | -17.01 | 138.94 | 0.4308 | -968.7 | -687.7 | |
| 0.00 | 3.00 | 0.00 | 1.66 | -17.19 | 232.22 | -17.39 | 140.75 | 0.4533 | -501.0 | -683.7 | |
| 0.00 | 1.73 | 0.00 | 0.95 | -16.15 | 232.18 | -17.43 | 139.14 | 0.4415 | -818.0 | -694.4 | |
| 3.00 | 6.36 | 1.68 | 3.57 | -16.87 | 229.93 | -19.68 | 136.84 | 0.4731 | -977.5 | -783.6 | |
| 0.00 | 0.91 | 0.00 | 0.51 | -17.01 | 229.37 | -20.24 | 136.27 | 0.4805 | -560.0 | -399.8 | |
| 0.55 | 2.36 | 0.31 | 1.34 | -16.77 | 228.51 | -21.10 | 134.74 | 0.4872 | 872.3 | 669.1 | |
| 0.00 | 0.91 | 0.00 | 0.52 | -14.40 | 226.39 | -23.22 | 128.30 | 0.4886 | -810.0 | -670.5 | |
| 0.00 | 1.18 | 0.00 | 0.77 | -18.67 | 214.60 | -35.01 | 123.96 | 0.6575 | -685.0 | -532.8 | |
| 0.00 | 2.18 | 0.00 | 1.79 | -28.64 | 205.91 | -43.70 | 130.42 | 0.7987 | -625.0 | -477.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
