SDO HMI 2014-07-06 10:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 9.08 | 0.00 | 4.56 | 4.14 | 253.85 | 4.79 | 214.28 | 0.1060 | 836.0 | 709.5 | |
|
previous
or next observation for the same group /

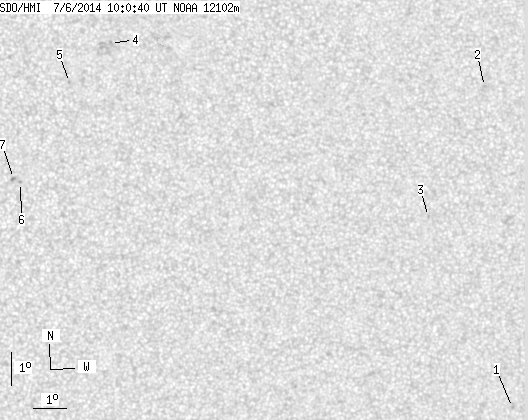

back to the solar disc SDO HMI 2014-07-06 10:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.91 | 0.00 | 0.47 | -3.50 | 263.84 | 14.78 | 245.00 | 0.2822 | 933.0 | 770.3 | |
| 0.00 | 1.09 | 0.00 | 0.56 | 6.32 | 263.03 | 13.97 | 282.23 | 0.2466 | 719.0 | 584.3 | |
| 0.00 | 0.91 | 0.00 | 0.46 | 2.38 | 261.20 | 12.14 | 265.35 | 0.2117 | 646.0 | 525.3 | |
| 0.00 | 1.45 | 0.00 | 0.72 | 7.74 | 251.44 | 2.37 | 331.34 | 0.0860 | 727.0 | 734.1 | |
| 0.00 | 1.27 | 0.00 | 0.63 | 6.56 | 250.17 | 1.11 | 340.53 | 0.0580 | 893.0 | 694.7 | |
| 0.00 | 1.18 | 0.00 | 0.59 | 3.51 | 248.66 | -0.40 | 79.73 | 0.0070 | 955.0 | 775.5 | |
| 0.00 | 2.27 | 0.00 | 1.13 | 3.63 | 248.45 | -0.61 | 72.33 | 0.0112 | 979.0 | 779.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
