SDO HMI 2014-07-06 10:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 136.20 | 806.15 | 74.16 | 439.05 | -11.85 | 268.26 | 19.20 | 231.00 | 0.4166 | 242.6 | 69.1 | |
|
previous
or next observation for the same group /

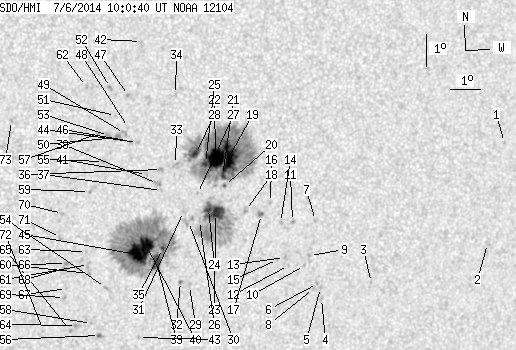

back to the solar disc SDO HMI 2014-07-06 10:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.09 | 0.00 | 0.64 | -10.12 | 278.98 | 29.92 | 245.22 | 0.5428 | 645.0 | 545.8 | |
| 0.00 | 2.45 | 0.00 | 1.46 | -13.30 | 278.74 | 29.68 | 239.81 | 0.5596 | 518.0 | 402.6 | |
| 0.00 | 0.82 | 0.00 | 0.47 | -14.43 | 274.77 | 25.70 | 234.37 | 0.5188 | 723.0 | 577.4 | |
| 0.00 | 1.73 | 0.00 | 0.99 | -14.89 | 273.08 | 24.02 | 231.81 | 0.5026 | 654.0 | 557.8 | |
| 0.00 | 1.45 | 0.00 | 0.83 | -14.54 | 273.01 | 23.95 | 232.30 | 0.4985 | 756.0 | 608.9 | |
| 0.00 | 1.36 | 0.00 | 0.78 | -14.41 | 272.89 | 23.83 | 232.39 | 0.4959 | 819.0 | 601.5 | |
| 0.00 | 1.91 | 0.00 | 1.07 | -12.39 | 272.61 | 23.55 | 235.53 | 0.4753 | 627.0 | 478.4 | |
| 0.00 | 1.09 | 0.00 | 0.62 | -14.56 | 272.77 | 23.71 | 231.99 | 0.4959 | 869.0 | 731.9 | |
| 0.00 | 1.54 | 0.00 | 0.87 | -13.50 | 272.52 | 23.46 | 233.48 | 0.4835 | 652.0 | 579.4 | |
| 0.00 | 1.09 | 0.00 | 0.62 | -13.82 | 272.38 | 23.32 | 232.79 | 0.4846 | 808.0 | 652.2 | |
| 0.00 | 1.27 | 0.00 | 0.71 | -12.41 | 271.83 | 22.77 | 234.62 | 0.4655 | 732.0 | 739.6 | |
| 0.00 | 0.82 | 0.00 | 0.46 | -13.80 | 271.83 | 22.77 | 232.17 | 0.4778 | 709.0 | 604.1 | |
| 0.00 | 1.27 | 0.00 | 0.71 | -13.55 | 271.67 | 22.61 | 232.42 | 0.4735 | 850.0 | 785.7 | |
| 0.00 | 1.45 | 0.00 | 0.81 | -12.43 | 271.43 | 22.37 | 234.10 | 0.4606 | 778.0 | 620.8 | |
| 0.00 | 1.09 | 0.00 | 0.61 | -13.60 | 271.44 | 22.38 | 232.04 | 0.4712 | 683.0 | 583.0 | |
| 0.00 | 2.00 | 0.00 | 1.11 | -11.79 | 271.04 | 21.97 | 234.81 | 0.4501 | 730.0 | 535.8 | |
| 0.45 | 2.73 | 0.25 | 1.51 | -12.16 | 270.76 | 21.70 | 233.79 | 0.4499 | 876.8 | 833.1 | |
| 0.00 | 3.18 | 0.00 | 1.75 | -12.02 | 270.22 | 21.16 | 233.36 | 0.4417 | 805.0 | 451.5 | |
| 18.72 | 306.46 | 10.20 | 166.70 | -10.33 | 269.53 | 20.46 | 235.73 | 0.4179 | 1192.0 | 467.1 | |
| 0.64 | -19.00 | 0.35 | -19.00 | -11.21 | 269.45 | 20.39 | 233.90 | 0.4248 | 740.6 | 999999 | |
| 1.91 | -19.00 | 1.04 | -19.00 | -10.90 | 269.37 | 20.30 | 234.40 | 0.4208 | 820.4 | 999999 | |
| 26.71 | -19.00 | 14.52 | -19.00 | -10.36 | 269.10 | 20.04 | 235.13 | 0.4125 | 1463.6 | 999999 | |
| 17.26 | 114.93 | 9.46 | 63.14 | -12.09 | 269.22 | 20.16 | 231.91 | 0.4300 | 969.8 | 159.5 | |
| 5.91 | -23.00 | 3.23 | -23.00 | -11.93 | 268.98 | 19.92 | 231.89 | 0.4254 | 1172.0 | 999999 | |
| 3.63 | -19.00 | 1.97 | -19.00 | -10.51 | 268.78 | 19.72 | 234.40 | 0.4097 | 1207.8 | 999999 | |
| 0.00 | 1.27 | 0.00 | 0.70 | -12.30 | 268.71 | 19.65 | 230.81 | 0.4256 | 568.0 | 519.8 | |
| 0.00 | 0.82 | 0.00 | 0.45 | -11.44 | 268.58 | 19.52 | 232.26 | 0.4158 | 734.0 | 555.8 | |
| 5.81 | -19.00 | 3.14 | -19.00 | -10.18 | 268.43 | 19.37 | 234.57 | 0.4022 | 1282.6 | 999999 | |
| 0.00 | 2.27 | 0.00 | 1.25 | -14.37 | 268.55 | 19.49 | 226.90 | 0.4444 | -339.0 | -313.8 | |
| 0.00 | 4.91 | 0.00 | 2.68 | -12.32 | 268.34 | 19.28 | 230.25 | 0.4214 | 498.0 | 538.1 | |
| 0.00 | 1.91 | 0.00 | 1.04 | -12.00 | 268.16 | 19.09 | 230.58 | 0.4160 | 618.0 | 553.4 | |
| 0.00 | 1.54 | 0.00 | 0.85 | -14.23 | 268.23 | 19.17 | 226.67 | 0.4394 | -853.0 | -696.0 | |
| 0.00 | 2.63 | 0.00 | 1.42 | -10.52 | 267.79 | 18.73 | 232.99 | 0.3971 | 787.0 | 560.3 | |
| 0.00 | 2.00 | 0.00 | 1.07 | -8.33 | 267.67 | 18.61 | 237.55 | 0.3758 | 510.0 | 424.4 | |
| 1.64 | 278.48 | 0.89 | 151.25 | -13.16 | 267.55 | 18.49 | 227.52 | 0.4204 | -1063.9 | -513.2 | |
| 0.00 | 2.00 | 0.00 | 1.08 | -10.66 | 267.34 | 18.28 | 232.02 | 0.3928 | 956.0 | 757.1 | |
| 0.00 | 1.18 | 0.00 | 0.64 | -11.32 | 267.39 | 18.32 | 230.75 | 0.3997 | 576.0 | 490.5 | |
| 0.00 | 4.09 | 0.00 | 2.20 | -11.10 | 267.24 | 18.18 | 230.98 | 0.3957 | 792.0 | 675.5 | |
| 11.18 | -35.00 | 6.10 | -35.00 | -13.57 | 267.38 | 18.32 | 226.54 | 0.4228 | -956.3 | 999999 | |
| 18.53 | -35.00 | 10.07 | -35.00 | -13.06 | 267.01 | 17.95 | 226.89 | 0.4130 | -1450.9 | 999999 | |
| 0.00 | 1.45 | 0.00 | 0.78 | -10.81 | 266.86 | 17.80 | 230.98 | 0.3881 | 749.0 | 590.4 | |
| 0.00 | 1.27 | 0.00 | 0.67 | -6.66 | 266.50 | 17.44 | 239.90 | 0.3456 | 778.0 | 606.7 | |
| 0.00 | 1.36 | 0.00 | 0.75 | -16.00 | 266.99 | 17.93 | 221.88 | 0.4452 | -782.0 | -632.6 | |
| 0.00 | 1.27 | 0.00 | 0.68 | -9.80 | 266.51 | 17.45 | 232.56 | 0.3738 | 640.0 | 542.1 | |
| 23.08 | -35.00 | 12.54 | -35.00 | -13.34 | 266.71 | 17.65 | 225.89 | 0.4125 | -1323.8 | 999999 | |
| 0.00 | 1.18 | 0.00 | 0.63 | -9.76 | 266.32 | 17.26 | 232.32 | 0.3709 | 773.0 | 573.8 | |
| 0.00 | 1.54 | 0.00 | 0.82 | -8.33 | 266.15 | 17.09 | 235.31 | 0.3551 | 908.0 | 784.2 | |
| 0.00 | 0.91 | 0.00 | 0.48 | -9.32 | 266.20 | 17.14 | 233.10 | 0.3651 | 698.0 | 556.4 | |
| 0.00 | 3.09 | 0.00 | 1.64 | -9.51 | 266.08 | 17.02 | 232.50 | 0.3654 | 683.0 | 755.2 | |
| 0.00 | 4.54 | 0.00 | 2.41 | -9.63 | 265.86 | 16.80 | 231.87 | 0.3637 | 1049.0 | 808.1 | |
| 0.00 | 0.73 | 0.00 | 0.39 | -8.94 | 265.76 | 16.70 | 233.26 | 0.3557 | 813.0 | 735.1 | |
| 0.00 | 2.27 | 0.00 | 1.20 | -8.07 | 265.56 | 16.50 | 234.99 | 0.3448 | 934.0 | 747.6 | |
| 0.00 | 2.91 | 0.00 | 1.54 | -9.56 | 265.56 | 16.50 | 231.53 | 0.3593 | 884.0 | 769.1 | |
| 0.00 | 1.64 | 0.00 | 0.89 | -14.37 | 265.76 | 16.70 | 222.54 | 0.4135 | -1011.0 | -736.3 | |
| 0.00 | 2.00 | 0.00 | 1.06 | -10.37 | 265.44 | 16.38 | 229.57 | 0.3660 | 745.0 | 655.0 | |
| 0.73 | 2.91 | 0.40 | 1.59 | -15.91 | 265.69 | 16.63 | 219.92 | 0.4307 | -956.4 | -691.0 | |
| 0.00 | 1.18 | 0.00 | 0.63 | -9.49 | 265.24 | 16.18 | 231.13 | 0.3544 | 915.0 | 734.5 | |
| 0.00 | 1.27 | 0.00 | 0.69 | -15.52 | 265.39 | 16.33 | 220.03 | 0.4230 | -707.0 | -520.1 | |
| 0.00 | 1.45 | 0.00 | 0.78 | -11.31 | 265.04 | 15.98 | 226.93 | 0.3711 | 637.0 | 504.4 | |
| 0.00 | 1.27 | 0.00 | 0.69 | -13.91 | 265.21 | 16.15 | 222.37 | 0.4022 | -570.0 | -441.1 | |
| 0.00 | 1.82 | 0.00 | 0.98 | -13.63 | 265.15 | 16.09 | 222.78 | 0.3983 | -659.0 | -369.1 | |
| 0.00 | 1.91 | 0.00 | 1.00 | -8.02 | 264.79 | 15.73 | 233.80 | 0.3341 | 756.0 | 617.3 | |
| 0.00 | 0.91 | 0.00 | 0.49 | -13.21 | 265.06 | 16.00 | 223.35 | 0.3925 | -762.0 | -590.6 | |
| 0.00 | 1.91 | 0.00 | 1.04 | -15.58 | 264.90 | 15.84 | 219.10 | 0.4187 | -840.0 | -681.1 | |
| 0.00 | 1.18 | 0.00 | 0.64 | -15.73 | 264.72 | 15.66 | 218.53 | 0.4188 | -841.0 | -737.5 | |
| 0.00 | 1.45 | 0.00 | 0.78 | -13.58 | 264.43 | 15.37 | 221.56 | 0.3900 | -1120.0 | -942.4 | |
| 0.00 | 0.91 | 0.00 | 0.49 | -14.38 | 264.49 | 15.43 | 220.29 | 0.4001 | -673.0 | -549.3 | |
| 0.00 | 1.18 | 0.00 | 0.64 | -13.74 | 264.38 | 15.32 | 221.19 | 0.3913 | -1013.0 | -840.4 | |
| 0.00 | 1.82 | 0.00 | 0.98 | -14.67 | 264.44 | 15.38 | 219.73 | 0.4031 | -794.0 | -680.2 | |
| 0.00 | 1.36 | 0.00 | 0.73 | -11.99 | 264.21 | 15.15 | 224.07 | 0.3690 | -789.0 | -744.0 | |
| 0.00 | 2.36 | 0.00 | 1.26 | -12.75 | 264.19 | 15.13 | 222.60 | 0.3776 | -635.0 | -613.7 | |
| 0.00 | 1.09 | 0.00 | 0.59 | -15.72 | 263.83 | 14.77 | 216.95 | 0.4100 | -546.0 | -527.2 | |
| 0.00 | 1.18 | 0.00 | 0.62 | -9.04 | 262.44 | 13.38 | 226.81 | 0.3147 | -787.0 | -652.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
