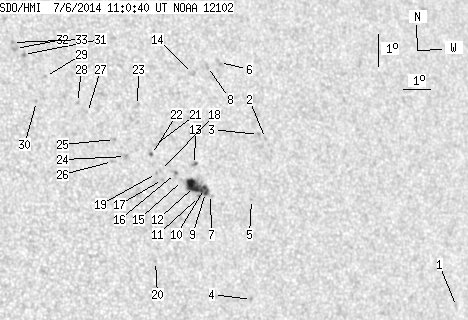

SDO HMI 2014-07-06 11:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 18.08 | 74.23 | 10.53 | 43.20 | 11.82 | 279.13 | 30.61 | 287.37 | 0.5246 | -485.7 | -339.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-06 11:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.91 | 0.00 | 1.24 | 6.79 | 289.09 | 40.58 | 276.43 | 0.6523 | -581.0 | -504.1 | |
| 0.00 | 1.36 | 0.00 | 0.82 | 12.21 | 282.35 | 33.83 | 286.61 | 0.5701 | -637.0 | -508.6 | |
| 0.00 | 1.45 | 0.00 | 0.87 | 12.34 | 282.10 | 33.59 | 286.93 | 0.5671 | -804.0 | -656.9 | |
| 0.00 | 1.45 | 0.00 | 0.86 | 7.29 | 281.26 | 32.75 | 278.13 | 0.5441 | -710.0 | -586.4 | |
| 0.00 | 0.82 | 0.00 | 0.49 | 10.35 | 281.58 | 33.06 | 283.61 | 0.5543 | -714.0 | -567.6 | |
| 0.00 | 3.91 | 0.00 | 2.33 | 14.61 | 281.00 | 32.49 | 291.32 | 0.5601 | -741.0 | -570.8 | |
| 0.00 | 1.82 | 0.00 | 1.06 | 10.55 | 280.09 | 31.58 | 284.44 | 0.5337 | -383.0 | -428.4 | |
| 0.00 | 2.18 | 0.00 | 1.29 | 14.50 | 280.53 | 32.02 | 291.35 | 0.5533 | -650.0 | -555.9 | |
| 2.00 | 25.80 | 1.17 | 15.03 | 10.62 | 279.92 | 31.41 | 284.62 | 0.5314 | -756.8 | -562.0 | |
| 1.64 | -9.00 | 0.96 | -9.00 | 10.74 | 279.90 | 31.38 | 284.86 | 0.5314 | -794.9 | 999999 | |
| 0.00 | 1.09 | 0.00 | 0.63 | 10.51 | 279.69 | 31.17 | 284.49 | 0.5277 | -778.0 | -673.0 | |
| 13.99 | -9.00 | 8.14 | -9.00 | 10.82 | 279.54 | 31.03 | 285.12 | 0.5265 | -998.2 | 999999 | |
| 0.00 | 2.45 | 0.00 | 1.43 | 11.49 | 279.62 | 31.11 | 286.35 | 0.5297 | -866.0 | -632.1 | |
| 0.00 | 2.91 | 0.00 | 1.71 | 14.30 | 279.95 | 31.43 | 291.30 | 0.5445 | -690.0 | -546.0 | |
| 0.00 | 1.64 | 0.00 | 0.95 | 11.02 | 279.13 | 30.62 | 285.65 | 0.5212 | -757.0 | -623.8 | |
| 0.00 | 2.00 | 0.00 | 1.16 | 11.24 | 278.90 | 30.39 | 286.16 | 0.5186 | -1006.0 | -852.8 | |
| 0.00 | 1.00 | 0.00 | 0.58 | 11.07 | 278.42 | 29.90 | 286.03 | 0.5111 | -787.0 | -675.1 | |
| 0.00 | 1.09 | 0.00 | 0.63 | 11.35 | 278.38 | 29.86 | 286.58 | 0.5114 | -756.0 | -611.8 | |
| 0.00 | 0.82 | 0.00 | 0.47 | 11.26 | 278.22 | 29.71 | 286.48 | 0.5089 | -897.0 | -806.8 | |
| 0.00 | 0.82 | 0.00 | 0.47 | 8.56 | 277.91 | 29.40 | 281.29 | 0.4970 | -676.0 | -467.6 | |
| 0.00 | 1.82 | 0.00 | 1.05 | 12.15 | 278.29 | 29.78 | 288.15 | 0.5130 | -619.0 | -547.7 | |
| 0.45 | 1.36 | 0.26 | 0.78 | 11.85 | 278.11 | 29.60 | 287.66 | 0.5093 | -839.6 | -705.7 | |
| 0.00 | 2.27 | 0.00 | 1.31 | 13.37 | 277.81 | 29.29 | 290.71 | 0.5109 | -661.0 | -433.9 | |
| 0.00 | 1.91 | 0.00 | 1.09 | 11.81 | 277.18 | 28.67 | 288.03 | 0.4958 | -432.0 | -419.8 | |
| 0.00 | 1.00 | 0.00 | 0.57 | 12.35 | 276.85 | 28.34 | 289.24 | 0.4931 | -664.0 | -543.0 | |
| 0.00 | 1.54 | 0.00 | 0.88 | 11.67 | 276.70 | 28.19 | 287.98 | 0.4884 | 616.0 | 502.2 | |
| 0.00 | 0.45 | 0.00 | 0.26 | 13.21 | 276.00 | 27.49 | 291.42 | 0.4847 | 618.0 | 515.6 | |
| 0.00 | 1.27 | 0.00 | 0.72 | 13.53 | 275.69 | 27.18 | 292.24 | 0.4817 | 760.0 | 651.4 | |
| 0.00 | 1.00 | 0.00 | 0.56 | 14.36 | 274.67 | 26.16 | 294.59 | 0.4715 | 739.0 | 582.6 | |
| 0.00 | 1.09 | 0.00 | 0.61 | 13.60 | 274.26 | 25.75 | 293.34 | 0.4617 | 760.0 | 616.4 | |
| 0.00 | 1.73 | 0.00 | 0.97 | 15.07 | 273.99 | 25.48 | 296.51 | 0.4660 | 859.0 | 707.3 | |
| 0.00 | 3.00 | 0.00 | 1.67 | 15.26 | 273.73 | 25.22 | 297.10 | 0.4637 | 746.0 | 637.3 | |
| 0.00 | 1.27 | 0.00 | 0.71 | 15.45 | 273.65 | 25.14 | 297.54 | 0.4637 | 859.0 | 702.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
