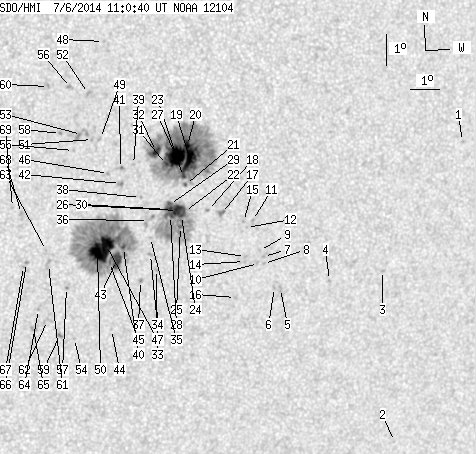

SDO HMI 2014-07-06 11:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 126.30 | 784.14 | 69.03 | 428.65 | -11.89 | 268.30 | 19.79 | 231.76 | 0.4243 | 216.8 | 69.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-06 11:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.27 | 0.00 | 0.75 | -10.14 | 278.93 | 30.42 | 245.55 | 0.5497 | 512.0 | 495.4 | |
| 0.00 | 0.73 | 0.00 | 0.45 | -19.74 | 277.92 | 29.41 | 230.11 | 0.6046 | 567.0 | 491.4 | |
| 0.00 | 1.82 | 0.00 | 1.07 | -14.14 | 276.55 | 28.04 | 237.07 | 0.5451 | 598.0 | 504.5 | |
| 0.00 | 1.09 | 0.00 | 0.63 | -14.41 | 274.71 | 26.20 | 234.90 | 0.5246 | 743.0 | 587.7 | |
| 0.00 | 2.18 | 0.00 | 1.25 | -14.62 | 273.02 | 24.51 | 232.80 | 0.5060 | 634.0 | 543.2 | |
| 0.00 | 1.36 | 0.00 | 0.78 | -14.58 | 272.81 | 24.30 | 232.63 | 0.5031 | 831.0 | 670.1 | |
| 0.00 | 1.18 | 0.00 | 0.67 | -13.57 | 272.32 | 23.81 | 233.76 | 0.4885 | 750.0 | 647.6 | |
| 0.00 | 1.00 | 0.00 | 0.57 | -13.80 | 272.34 | 23.83 | 233.40 | 0.4907 | 599.0 | 527.4 | |
| 0.00 | 1.00 | 0.00 | 0.57 | -13.38 | 272.16 | 23.65 | 233.91 | 0.4849 | 829.0 | 672.0 | |
| 0.00 | 0.64 | 0.00 | 0.36 | -13.79 | 272.17 | 23.66 | 233.22 | 0.4886 | 467.0 | 514.9 | |
| 0.00 | 1.82 | 0.00 | 1.02 | -12.42 | 271.83 | 23.32 | 235.22 | 0.4726 | 882.0 | 661.0 | |
| 0.00 | 0.91 | 0.00 | 0.51 | -12.64 | 271.65 | 23.13 | 234.62 | 0.4721 | 674.0 | 524.1 | |
| 0.00 | 1.54 | 0.00 | 0.87 | -13.56 | 271.70 | 23.19 | 233.08 | 0.4808 | 847.0 | 701.6 | |
| 0.00 | 1.09 | 0.00 | 0.62 | -13.72 | 271.68 | 23.17 | 232.79 | 0.4820 | 417.0 | 502.7 | |
| 0.00 | 0.73 | 0.00 | 0.41 | -12.44 | 271.53 | 23.01 | 234.83 | 0.4689 | 864.0 | 743.5 | |
| 0.00 | 1.82 | 0.00 | 1.03 | -14.86 | 271.50 | 22.99 | 230.66 | 0.4901 | 748.0 | 599.5 | |
| 0.00 | 4.09 | 0.00 | 2.27 | -12.17 | 270.76 | 22.25 | 234.42 | 0.4569 | 906.0 | 694.6 | |
| 0.00 | 1.54 | 0.00 | 0.86 | -12.06 | 270.28 | 21.76 | 234.03 | 0.4499 | 848.0 | 600.2 | |
| 13.08 | 302.62 | 7.16 | 165.22 | -10.38 | 269.55 | 21.03 | 236.36 | 0.4258 | 1162.4 | 474.8 | |
| 3.82 | -19.00 | 2.08 | -19.00 | -10.00 | 269.45 | 20.94 | 237.01 | 0.4214 | 1262.0 | 999999 | |
| 0.73 | -19.00 | 0.40 | -19.00 | -11.22 | 269.47 | 20.96 | 234.61 | 0.4322 | 764.5 | 999999 | |
| 1.54 | 114.29 | 0.85 | 63.00 | -12.08 | 269.51 | 21.00 | 233.04 | 0.4403 | 785.1 | 150.4 | |
| 0.27 | -19.00 | 0.15 | -19.00 | -10.97 | 269.39 | 20.88 | 235.00 | 0.4289 | 815.3 | 999999 | |
| 2.00 | -22.00 | 1.10 | -22.00 | -12.20 | 269.42 | 20.91 | 232.69 | 0.4403 | 816.4 | 999999 | |
| 1.00 | -22.00 | 0.55 | -22.00 | -12.55 | 269.41 | 20.90 | 232.05 | 0.4434 | 442.0 | 999999 | |
| 10.36 | -22.00 | 5.70 | -22.00 | -12.04 | 269.27 | 20.76 | 232.80 | 0.4370 | 1040.8 | 999999 | |
| 23.80 | -19.00 | 12.98 | -19.00 | -10.34 | 269.11 | 20.60 | 235.90 | 0.4197 | 1484.2 | 999999 | |
| 2.36 | -22.00 | 1.30 | -22.00 | -12.19 | 269.05 | 20.54 | 232.22 | 0.4356 | 900.8 | 999999 | |
| 1.91 | -22.00 | 1.05 | -22.00 | -11.84 | 268.99 | 20.48 | 232.80 | 0.4316 | 1081.0 | 999999 | |
| 4.82 | -22.00 | 2.64 | -22.00 | -12.00 | 268.97 | 20.46 | 232.47 | 0.4328 | 1139.5 | 999999 | |
| 2.27 | -19.00 | 1.24 | -19.00 | -10.58 | 268.80 | 20.29 | 235.00 | 0.4178 | 1139.4 | 999999 | |
| 4.82 | -19.00 | 2.61 | -19.00 | -10.16 | 268.44 | 19.93 | 235.37 | 0.4094 | 1284.3 | 999999 | |
| 0.00 | 2.18 | 0.00 | 1.21 | -13.90 | 268.73 | 20.22 | 228.72 | 0.4482 | -617.0 | -428.8 | |
| 0.00 | 2.27 | 0.00 | 1.25 | -13.42 | 268.48 | 19.97 | 229.23 | 0.4405 | 567.0 | 381.7 | |
| 0.00 | 1.27 | 0.00 | 0.70 | -12.88 | 268.44 | 19.93 | 230.14 | 0.4346 | 506.0 | 411.3 | |
| 0.00 | 7.00 | 0.00 | 3.83 | -12.33 | 268.33 | 19.82 | 230.98 | 0.4281 | 516.0 | 516.3 | |
| 0.00 | 1.82 | 0.00 | 1.00 | -14.24 | 268.22 | 19.71 | 227.43 | 0.4457 | -856.0 | -722.4 | |
| 0.00 | 1.27 | 0.00 | 0.69 | -11.60 | 268.01 | 19.50 | 231.92 | 0.4171 | 619.0 | 528.1 | |
| 0.00 | 1.27 | 0.00 | 0.69 | -10.56 | 267.71 | 19.20 | 233.57 | 0.4034 | 602.0 | 414.4 | |
| 1.36 | 270.64 | 0.75 | 147.47 | -13.17 | 267.57 | 19.05 | 228.35 | 0.4272 | -1058.7 | -524.3 | |
| 0.00 | 2.00 | 0.00 | 1.08 | -10.67 | 267.29 | 18.78 | 232.73 | 0.3991 | 936.0 | 756.1 | |
| 0.00 | 2.73 | 0.00 | 1.48 | -11.14 | 267.32 | 18.81 | 231.83 | 0.4040 | 764.0 | 703.5 | |
| 11.54 | -40.00 | 6.32 | -40.00 | -13.58 | 267.37 | 18.86 | 227.32 | 0.4291 | -949.0 | 999999 | |
| 0.00 | 0.73 | 0.00 | 0.40 | -15.80 | 267.40 | 18.89 | 223.66 | 0.4530 | -567.0 | -434.6 | |
| 0.73 | -40.00 | 0.40 | -40.00 | -13.64 | 267.14 | 18.63 | 226.88 | 0.4271 | -897.6 | 999999 | |
| 0.00 | 1.54 | 0.00 | 0.83 | -10.82 | 266.90 | 18.39 | 231.86 | 0.3957 | 879.0 | 657.3 | |
| 18.72 | -40.00 | 10.21 | -40.00 | -13.10 | 267.00 | 18.49 | 227.63 | 0.4197 | -1414.8 | 999999 | |
| 0.00 | 0.82 | 0.00 | 0.43 | -6.70 | 266.54 | 18.03 | 240.61 | 0.3542 | 832.0 | 709.1 | |
| 0.00 | 1.27 | 0.00 | 0.68 | -9.72 | 266.58 | 18.07 | 233.68 | 0.3810 | 728.0 | 637.1 | |
| 21.17 | -40.00 | 11.54 | -40.00 | -13.32 | 266.72 | 18.21 | 226.81 | 0.4187 | -1326.2 | 999999 | |
| 0.00 | 1.73 | 0.00 | 0.92 | -9.74 | 266.32 | 17.81 | 233.23 | 0.3779 | 813.0 | 597.4 | |
| 0.00 | 2.91 | 0.00 | 1.54 | -8.30 | 266.12 | 17.61 | 236.15 | 0.3620 | 932.0 | 707.7 | |
| 0.00 | 8.27 | 0.00 | 4.41 | -9.58 | 265.95 | 17.44 | 233.02 | 0.3716 | 915.0 | 779.8 | |
| 0.00 | 0.73 | 0.00 | 0.40 | -16.06 | 266.19 | 17.67 | 221.38 | 0.4431 | -764.0 | -641.9 | |
| 0.00 | 1.09 | 0.00 | 0.58 | -10.08 | 265.72 | 17.21 | 231.58 | 0.3734 | 754.0 | 603.1 | |
| 0.00 | 3.00 | 0.00 | 1.59 | -8.11 | 265.53 | 17.02 | 235.71 | 0.3522 | 876.0 | 748.1 | |
| 0.00 | 1.09 | 0.00 | 0.59 | -14.41 | 265.78 | 17.27 | 223.41 | 0.4202 | -825.0 | -741.4 | |
| 0.00 | 1.36 | 0.00 | 0.72 | -9.54 | 265.27 | 16.76 | 232.02 | 0.3623 | 879.0 | 720.8 | |
| 0.00 | 2.36 | 0.00 | 1.30 | -15.96 | 265.68 | 17.17 | 220.73 | 0.4367 | -953.0 | -755.2 | |
| 0.00 | 1.45 | 0.00 | 0.77 | -8.06 | 264.82 | 16.31 | 234.68 | 0.3422 | 902.0 | 711.1 | |
| 0.00 | 4.82 | 0.00 | 2.61 | -13.67 | 265.13 | 16.62 | 223.62 | 0.4046 | -566.0 | -374.9 | |
| 0.00 | 4.72 | 0.00 | 2.59 | -15.46 | 265.24 | 16.73 | 220.79 | 0.4264 | -703.0 | -577.2 | |
| 0.00 | 0.73 | 0.00 | 0.39 | -13.22 | 265.04 | 16.52 | 224.25 | 0.3985 | -788.0 | -665.4 | |
| 0.00 | 1.18 | 0.00 | 0.64 | -15.10 | 264.91 | 16.40 | 220.81 | 0.4188 | -862.0 | -652.8 | |
| 0.00 | 3.00 | 0.00 | 1.64 | -15.71 | 264.80 | 16.29 | 219.65 | 0.4248 | -615.0 | -601.0 | |
| 0.00 | 1.18 | 0.00 | 0.64 | -13.59 | 264.41 | 15.90 | 222.49 | 0.3958 | -1015.0 | -867.6 | |
| 0.00 | 1.36 | 0.00 | 0.73 | -13.72 | 264.32 | 15.81 | 222.11 | 0.3963 | -794.0 | -690.7 | |
| 0.00 | 2.36 | 0.00 | 1.26 | -12.03 | 264.15 | 15.64 | 224.90 | 0.3751 | -795.0 | -711.9 | |
| 0.00 | 1.27 | 0.00 | 0.68 | -11.83 | 263.84 | 15.33 | 224.72 | 0.3694 | -804.0 | -582.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
