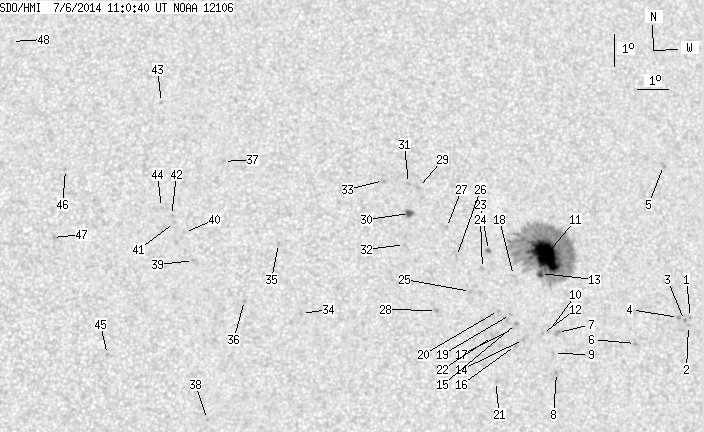

SDO HMI 2014-07-06 11:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 51.62 | 350.56 | 26.80 | 181.89 | 15.10 | 260.99 | 12.47 | 314.98 | 0.2958 | -539.8 | -365.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-06 11:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.18 | 0.00 | 0.62 | 13.22 | 266.35 | 17.84 | 300.08 | 0.3460 | -796.0 | -648.0 | |
| 0.00 | 1.18 | 0.00 | 0.62 | 12.97 | 266.26 | 17.75 | 299.55 | 0.3430 | -651.0 | -582.8 | |
| 0.00 | 1.27 | 0.00 | 0.67 | 13.13 | 266.14 | 17.63 | 300.11 | 0.3425 | -900.0 | -838.1 | |
| 0.00 | 1.45 | 0.00 | 0.77 | 13.23 | 265.95 | 17.44 | 300.62 | 0.3405 | -1037.0 | -831.9 | |
| 0.00 | 2.36 | 0.00 | 1.27 | 17.97 | 265.88 | 17.37 | 311.77 | 0.3823 | -734.0 | -636.8 | |
| 0.00 | 1.45 | 0.00 | 0.76 | 12.45 | 264.49 | 15.98 | 300.58 | 0.3137 | -988.0 | -850.4 | |
| 0.00 | 3.45 | 0.00 | 1.78 | 12.83 | 262.00 | 13.49 | 305.93 | 0.2820 | -933.0 | -847.3 | |
| 0.00 | 1.36 | 0.00 | 0.70 | 11.60 | 261.90 | 13.39 | 302.32 | 0.2696 | -940.0 | -813.1 | |
| 0.00 | 1.18 | 0.00 | 0.61 | 12.18 | 261.83 | 13.32 | 304.29 | 0.2738 | -900.0 | -685.6 | |
| 0.00 | 1.64 | 0.00 | 0.84 | 12.87 | 261.71 | 13.20 | 306.60 | 0.2785 | -787.0 | -619.4 | |
| 45.43 | 279.00 | 23.61 | 145.05 | 15.22 | 261.76 | 13.24 | 312.94 | 0.3033 | -1479.0 | -438.8 | |
| 0.00 | 0.91 | 0.00 | 0.47 | 12.81 | 261.51 | 13.00 | 306.82 | 0.2753 | -802.0 | -647.7 | |
| 2.82 | -11.00 | 1.46 | -11.00 | 14.67 | 261.56 | 13.05 | 311.93 | 0.2948 | -1130.2 | 999999 | |
| 0.00 | 2.00 | 0.00 | 1.03 | 12.63 | 260.90 | 12.39 | 307.58 | 0.2653 | -895.0 | -635.9 | |
| 0.00 | 1.82 | 0.00 | 0.93 | 13.13 | 260.70 | 12.19 | 309.52 | 0.2677 | -1035.0 | -829.2 | |
| 0.00 | 1.18 | 0.00 | 0.61 | 12.45 | 260.63 | 12.12 | 307.60 | 0.2599 | -939.0 | -710.8 | |
| 0.00 | 0.82 | 0.00 | 0.42 | 12.97 | 260.59 | 12.08 | 309.29 | 0.2647 | -961.0 | -774.8 | |
| 0.00 | 1.45 | 0.00 | 0.75 | 14.62 | 260.68 | 12.17 | 313.72 | 0.2835 | -904.0 | -644.4 | |
| 0.00 | 1.27 | 0.00 | 0.65 | 13.41 | 260.52 | 12.01 | 310.75 | 0.2683 | -719.0 | -555.4 | |
| 0.00 | 1.54 | 0.00 | 0.79 | 13.54 | 260.14 | 11.63 | 312.00 | 0.2649 | -669.0 | -547.6 | |
| 0.00 | 0.45 | 0.00 | 0.23 | 11.35 | 259.95 | 11.43 | 305.52 | 0.2399 | -730.0 | -528.2 | |
| 0.00 | 3.18 | 0.00 | 1.63 | 12.74 | 259.91 | 11.40 | 310.16 | 0.2534 | -893.0 | -770.9 | |
| 0.64 | 2.27 | 0.33 | 1.17 | 15.40 | 259.92 | 11.41 | 317.54 | 0.2838 | 965.6 | 770.4 | |
| 0.00 | 2.09 | 0.00 | 1.08 | 14.85 | 259.70 | 11.19 | 316.68 | 0.2745 | -883.0 | -600.7 | |
| 0.00 | 2.00 | 0.00 | 1.03 | 14.14 | 259.28 | 10.77 | 315.86 | 0.2612 | -879.0 | -755.4 | |
| 0.00 | 1.54 | 0.00 | 0.79 | 15.23 | 258.88 | 10.37 | 319.76 | 0.2701 | -741.0 | -606.2 | |
| 0.00 | 1.73 | 0.00 | 0.89 | 16.14 | 258.61 | 10.10 | 322.65 | 0.2788 | 729.0 | 505.1 | |
| 0.00 | 1.27 | 0.00 | 0.65 | 13.56 | 258.17 | 9.65 | 317.28 | 0.2414 | -963.0 | -821.7 | |
| 0.00 | 1.45 | 0.00 | 0.75 | 17.40 | 257.77 | 9.26 | 327.60 | 0.2879 | 877.0 | 691.9 | |
| 2.73 | 4.91 | 1.40 | 2.53 | 16.59 | 257.44 | 8.93 | 326.90 | 0.2736 | 1108.2 | 839.5 | |
| 0.00 | 1.36 | 0.00 | 0.70 | 17.53 | 257.45 | 8.94 | 328.73 | 0.2869 | 949.0 | 694.2 | |
| 0.00 | 1.18 | 0.00 | 0.61 | 15.62 | 257.23 | 8.72 | 325.39 | 0.2583 | 782.0 | 627.6 | |
| 0.00 | 2.00 | 0.00 | 1.03 | 17.63 | 256.65 | 8.14 | 331.23 | 0.2816 | 844.0 | 700.7 | |
| 0.00 | 1.54 | 0.00 | 0.78 | 13.51 | 253.89 | 5.38 | 332.47 | 0.1983 | 758.0 | 426.6 | |
| 0.00 | 1.82 | 0.00 | 0.92 | 15.68 | 253.22 | 4.71 | 339.58 | 0.2275 | 833.0 | 600.3 | |
| 0.00 | 1.27 | 0.00 | 0.64 | 13.92 | 252.11 | 3.60 | 341.49 | 0.1928 | 881.0 | 729.0 | |
| 0.00 | 1.36 | 0.00 | 0.70 | 18.26 | 251.52 | 3.01 | 348.98 | 0.2619 | 845.0 | 655.1 | |
| 0.00 | 1.09 | 0.00 | 0.54 | 10.25 | 250.91 | 2.40 | 340.88 | 0.1262 | 785.0 | 668.6 | |
| 0.00 | 1.91 | 0.00 | 0.97 | 15.17 | 250.52 | 2.01 | 350.55 | 0.2070 | 849.0 | 665.1 | |
| 0.00 | 0.91 | 0.00 | 0.46 | 16.04 | 250.24 | 1.73 | 352.42 | 0.2211 | 771.0 | 608.6 | |
| 0.00 | 0.64 | 0.00 | 0.32 | 16.35 | 249.93 | 1.42 | 353.94 | 0.2258 | 806.0 | 731.1 | |
| 0.00 | 1.73 | 0.00 | 0.88 | 16.57 | 249.84 | 1.32 | 354.43 | 0.2293 | 747.0 | 661.2 | |
| 0.00 | 1.27 | 0.00 | 0.66 | 20.14 | 249.54 | 1.03 | 356.63 | 0.2891 | 854.0 | 645.9 | |
| 0.00 | 1.09 | 0.00 | 0.56 | 16.82 | 249.52 | 1.01 | 355.84 | 0.2331 | 849.0 | 690.4 | |
| 0.00 | 1.36 | 0.00 | 0.68 | 12.26 | 247.81 | -0.70 | 4.47 | 0.1545 | 723.0 | 565.6 | |
| 0.00 | 1.45 | 0.00 | 0.74 | 18.02 | 246.45 | -2.06 | 7.73 | 0.2552 | 667.0 | 496.2 | |
| 0.00 | 0.73 | 0.00 | 0.37 | 15.89 | 246.06 | -2.45 | 10.81 | 0.2205 | 479.0 | 551.2 | |
| 0.00 | 0.45 | 0.00 | 0.24 | 22.09 | 244.62 | -3.89 | 11.11 | 0.3275 | 625.0 | 522.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
