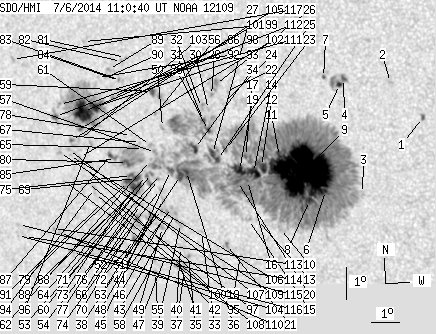

SDO HMI 2014-07-06 11:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 331.89 | 1764.77 | 191.26 | 1019.50 | -7.78 | 220.05 | -28.46 | 111.82 | 0.5100 | 311.4 | 95.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-06 11:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.91 | 2.73 | 0.49 | 1.48 | -6.21 | 226.17 | -22.34 | 113.36 | 0.4133 | 827.8 | 676.5 | |
| 0.00 | 1.82 | 0.00 | 0.99 | -5.16 | 225.15 | -23.36 | 110.11 | 0.4223 | 871.0 | 723.5 | |
| 0.00 | 1.91 | 0.00 | 1.06 | -8.62 | 224.02 | -24.49 | 116.42 | 0.4596 | 275.0 | 227.3 | |
| 2.00 | 19.53 | 1.10 | 10.82 | -5.07 | 223.58 | -24.93 | 108.74 | 0.4452 | -757.7 | -54.6 | |
| 2.45 | -4.00 | 1.36 | -4.00 | -5.26 | 223.44 | -25.08 | 109.04 | 0.4483 | 575.3 | 999999 | |
| 0.91 | 1286.90 | 0.51 | 734.29 | -8.56 | 222.76 | -25.75 | 115.19 | 0.4766 | 1124.9 | 265.4 | |
| 0.64 | 1.54 | 0.35 | 0.86 | -5.06 | 222.90 | -25.61 | 108.24 | 0.4552 | -702.9 | -597.9 | |
| 5.45 | -6.00 | 3.09 | -6.00 | -8.89 | 222.19 | -26.32 | 115.33 | 0.4867 | 882.4 | 999999 | |
| 185.52 | -6.00 | 104.86 | -6.00 | -7.99 | 222.05 | -26.46 | 113.51 | 0.4831 | 1408.7 | 999999 | |
| 0.00 | 3.36 | 0.00 | 1.93 | -9.79 | 221.11 | -27.41 | 116.10 | 0.5071 | -67.0 | 17.9 | |
| 0.27 | -6.00 | 0.15 | -6.00 | -7.54 | 221.25 | -27.26 | 112.05 | 0.4919 | 920.0 | 999999 | |
| 9.18 | -6.00 | 5.25 | -6.00 | -7.87 | 220.60 | -27.91 | 112.20 | 0.5028 | 797.8 | 999999 | |
| 0.00 | 1.09 | 0.00 | 0.63 | -9.53 | 220.32 | -28.19 | 115.02 | 0.5161 | -621.0 | -384.8 | |
| 10.18 | -6.00 | 5.84 | -6.00 | -8.07 | 220.31 | -28.20 | 112.36 | 0.5079 | 876.2 | 999999 | |
| 0.00 | 2.73 | 0.00 | 1.58 | -9.54 | 220.01 | -28.50 | 114.80 | 0.5205 | 366.0 | 341.4 | |
| 0.27 | -6.00 | 0.16 | -6.00 | -8.32 | 220.08 | -28.43 | 112.66 | 0.5125 | 443.0 | 999999 | |
| 1.18 | -6.00 | 0.68 | -6.00 | -7.58 | 220.07 | -28.45 | 111.28 | 0.5087 | 590.9 | 999999 | |
| 0.00 | 0.82 | 0.00 | 0.48 | -10.68 | 219.61 | -28.90 | 116.48 | 0.5327 | 531.0 | 321.6 | |
| 9.36 | -6.00 | 5.40 | -6.00 | -8.02 | 219.82 | -28.69 | 111.93 | 0.5145 | 818.9 | 999999 | |
| 3.27 | -6.00 | 1.89 | -6.00 | -8.36 | 219.72 | -28.79 | 112.49 | 0.5177 | -223.7 | 999999 | |
| 0.36 | 4.18 | 0.21 | 2.45 | -10.35 | 219.15 | -29.36 | 115.56 | 0.5368 | -963.2 | -756.5 | |
| 0.00 | 0.91 | 0.00 | 0.52 | -5.58 | 219.53 | -28.98 | 107.20 | 0.5068 | -468.0 | -523.9 | |
| 1.18 | -6.00 | 0.68 | -6.00 | -7.38 | 219.38 | -29.13 | 110.46 | 0.5174 | 763.7 | 999999 | |
| 0.00 | 0.82 | 0.00 | 0.47 | -5.95 | 219.40 | -29.11 | 107.84 | 0.5103 | -262.0 | -287.0 | |
| 3.36 | -6.00 | 1.95 | -6.00 | -7.70 | 219.07 | -29.44 | 110.85 | 0.5233 | 919.2 | 999999 | |
| 0.00 | 8.45 | 0.00 | 4.86 | -5.38 | 219.16 | -29.36 | 106.61 | 0.5113 | 28.0 | 135.8 | |
| 4.27 | -6.00 | 2.48 | -6.00 | -7.52 | 218.91 | -29.60 | 110.42 | 0.5246 | 771.9 | 999999 | |
| 0.00 | 1.54 | 0.00 | 0.89 | -5.72 | 218.99 | -29.52 | 107.17 | 0.5151 | 828.0 | 691.1 | |
| 1.91 | 79.40 | 1.11 | 46.33 | -6.81 | 218.82 | -29.69 | 109.07 | 0.5225 | 742.5 | 42.3 | |
| 0.00 | 1.64 | 0.00 | 0.95 | -6.16 | 218.86 | -29.65 | 107.90 | 0.5189 | 883.0 | 719.9 | |
| 1.82 | -29.00 | 1.05 | -29.00 | -6.50 | 218.66 | -29.85 | 108.42 | 0.5233 | 861.0 | 999999 | |
| 0.00 | 4.00 | 0.00 | 2.32 | -6.10 | 218.62 | -29.89 | 107.66 | 0.5221 | 710.0 | 514.2 | |
| 0.00 | 1.45 | 0.00 | 0.86 | -9.97 | 218.29 | -30.22 | 114.30 | 0.5460 | 522.0 | 402.5 | |
| 3.72 | -6.00 | 2.18 | -6.00 | -7.38 | 218.28 | -30.23 | 109.79 | 0.5327 | 788.4 | 999999 | |
| 0.00 | 1.54 | 0.00 | 0.92 | -10.77 | 217.74 | -30.77 | 115.26 | 0.5579 | -862.0 | -759.8 | |
| 1.73 | -6.00 | 1.02 | -6.00 | -8.10 | 217.93 | -30.58 | 110.86 | 0.5410 | -1017.3 | 999999 | |
| 0.00 | 1.91 | 0.00 | 1.14 | -11.15 | 217.55 | -30.96 | 115.75 | 0.5626 | -746.0 | -637.5 | |
| 5.72 | -6.00 | 3.38 | -6.00 | -8.24 | 217.71 | -30.80 | 110.95 | 0.5448 | -998.6 | 999999 | |
| 0.00 | 6.90 | 0.00 | 4.10 | -9.74 | 217.56 | -30.95 | 113.42 | 0.5545 | -235.0 | -319.7 | |
| 0.00 | 1.00 | 0.00 | 0.60 | -10.49 | 217.48 | -31.03 | 114.62 | 0.5597 | -826.0 | -726.4 | |
| 0.00 | 1.18 | 0.00 | 0.71 | -10.90 | 217.36 | -31.15 | 115.22 | 0.5636 | -865.0 | -765.7 | |
| 0.00 | 1.82 | 0.00 | 1.09 | -11.06 | 217.27 | -31.24 | 115.42 | 0.5657 | -740.0 | -683.6 | |
| 0.00 | 1.82 | 0.00 | 1.08 | -9.43 | 217.41 | -31.10 | 112.80 | 0.5548 | -330.0 | -317.2 | |
| 0.00 | 1.64 | 0.00 | 0.97 | -9.25 | 217.29 | -31.22 | 112.41 | 0.5556 | -870.0 | -732.3 | |
| 2.91 | -6.00 | 1.72 | -6.00 | -8.09 | 217.36 | -31.15 | 110.49 | 0.5488 | -947.1 | 999999 | |
| 0.00 | 2.18 | 0.00 | 1.30 | -9.38 | 217.13 | -31.38 | 112.53 | 0.5584 | -832.0 | -725.8 | |
| 0.00 | 0.45 | 0.00 | 0.27 | -10.79 | 216.90 | -31.61 | 114.73 | 0.5690 | -265.0 | -344.0 | |
| 0.00 | 2.45 | 0.00 | 1.46 | -9.00 | 217.02 | -31.49 | 111.84 | 0.5579 | -741.0 | -637.7 | |
| 0.00 | 2.00 | 0.00 | 1.20 | -9.88 | 216.89 | -31.62 | 113.23 | 0.5642 | -569.0 | -525.8 | |
| 0.00 | 2.45 | 0.00 | 1.45 | -6.76 | 217.18 | -31.33 | 108.07 | 0.5452 | -364.0 | -436.9 | |
| 0.00 | 0.82 | 0.00 | 0.49 | -9.32 | 216.92 | -31.59 | 112.31 | 0.5609 | -805.0 | -669.2 | |
| 0.00 | 1.45 | 0.00 | 0.87 | -8.70 | 216.94 | -31.57 | 111.27 | 0.5574 | -768.0 | -639.6 | |
| 0.00 | 1.09 | 0.00 | 0.65 | -8.23 | 216.99 | -31.52 | 110.50 | 0.5546 | -607.0 | -488.0 | |
| 0.00 | 1.27 | 0.00 | 0.76 | -8.39 | 216.90 | -31.61 | 110.72 | 0.5565 | -818.0 | -714.9 | |
| 0.00 | 1.54 | 0.00 | 0.94 | -11.31 | 216.47 | -32.04 | 115.27 | 0.5775 | -672.0 | -611.8 | |
| 0.00 | 1.09 | 0.00 | 0.64 | -6.34 | 216.96 | -31.55 | 107.20 | 0.5465 | -991.0 | -887.3 | |
| 0.00 | 2.82 | 0.00 | 1.67 | -7.55 | 216.87 | -31.65 | 109.26 | 0.5531 | -430.0 | -442.7 | |
| 0.00 | 1.18 | 0.00 | 0.71 | -10.96 | 216.48 | -32.04 | 114.72 | 0.5755 | -673.0 | -513.5 | |
| 3.00 | 11.17 | 1.77 | 6.58 | -5.66 | 216.90 | -31.62 | 105.97 | 0.5447 | -973.0 | -820.5 | |
| 0.64 | 7.90 | 0.38 | 4.72 | -8.21 | 216.66 | -31.85 | 110.27 | 0.5589 | -964.3 | -765.8 | |
| 0.00 | 2.63 | 0.00 | 1.57 | -7.34 | 216.70 | -31.81 | 108.81 | 0.5544 | -418.0 | -316.2 | |
| 0.00 | 0.91 | 0.00 | 0.54 | -7.80 | 216.66 | -31.85 | 109.59 | 0.5570 | -719.0 | -672.3 | |
| 0.00 | 4.27 | 0.00 | 2.57 | -9.58 | 216.45 | -32.06 | 112.46 | 0.5685 | -870.0 | -725.2 | |
| 0.73 | -60.00 | 0.43 | -60.00 | -8.27 | 216.47 | -32.04 | 110.28 | 0.5618 | -988.6 | 999999 | |
| 0.00 | 1.00 | 0.00 | 0.60 | -7.44 | 216.44 | -32.07 | 108.84 | 0.5584 | -166.0 | -157.5 | |
| 0.00 | 0.91 | 0.00 | 0.55 | -9.19 | 216.17 | -32.35 | 111.63 | 0.5703 | -834.0 | -744.3 | |
| 0.00 | 0.45 | 0.00 | 0.27 | -7.25 | 216.35 | -32.17 | 108.47 | 0.5589 | 134.0 | 69.4 | |
| 3.63 | 28.80 | 2.18 | 17.33 | -8.63 | 216.15 | -32.36 | 110.69 | 0.5678 | -955.2 | -602.5 | |
| 4.36 | -68.00 | 2.62 | -68.00 | -8.38 | 216.10 | -32.41 | 110.25 | 0.5673 | -1086.4 | 999999 | |
| 1.27 | 6.81 | 0.77 | 4.12 | -9.66 | 215.97 | -32.54 | 112.29 | 0.5753 | -862.4 | -698.2 | |
| 1.64 | -68.00 | 0.98 | -68.00 | -8.82 | 216.02 | -32.49 | 110.93 | 0.5705 | -679.1 | 999999 | |
| 1.27 | 2.82 | 0.77 | 1.71 | -10.29 | 215.82 | -32.69 | 113.23 | 0.5804 | -688.4 | -542.4 | |
| 3.54 | -68.00 | 2.13 | -68.00 | -8.66 | 215.96 | -32.55 | 110.64 | 0.5705 | -893.0 | 999999 | |
| 0.00 | 2.18 | 0.00 | 1.32 | -9.92 | 215.79 | -32.72 | 112.60 | 0.5789 | -552.0 | -500.6 | |
| 1.82 | -68.00 | 1.09 | -68.00 | -8.29 | 215.93 | -32.59 | 110.00 | 0.5693 | -903.2 | 999999 | |
| 0.00 | 1.54 | 0.00 | 0.94 | -9.54 | 215.80 | -32.71 | 111.99 | 0.5770 | -613.0 | -485.9 | |
| 0.00 | 0.64 | 0.00 | 0.38 | -9.26 | 215.83 | -32.68 | 111.55 | 0.5752 | -640.0 | -530.4 | |
| 0.00 | 0.73 | 0.00 | 0.43 | -7.05 | 216.04 | -32.48 | 107.96 | 0.5623 | 382.0 | 294.8 | |
| 4.54 | -68.00 | 2.74 | -68.00 | -8.48 | 215.80 | -32.71 | 110.25 | 0.5719 | -817.4 | 999999 | |
| 5.00 | 43.34 | 3.01 | 26.02 | -7.89 | 215.82 | -32.70 | 109.27 | 0.5690 | -1104.4 | -598.0 | |
| 0.00 | 1.27 | 0.00 | 0.76 | -4.64 | 215.98 | -32.53 | 103.75 | 0.5540 | -735.0 | -669.4 | |
| 0.00 | 2.00 | 0.00 | 1.19 | -4.77 | 215.83 | -32.69 | 103.91 | 0.5565 | -767.0 | -653.1 | |
| 0.00 | 0.82 | 0.00 | 0.49 | -5.36 | 215.75 | -32.76 | 104.91 | 0.5596 | -457.0 | -526.4 | |
| 0.00 | 1.00 | 0.00 | 0.60 | -5.36 | 215.68 | -32.83 | 104.88 | 0.5606 | -765.0 | -718.5 | |
| 0.27 | -80.00 | 0.16 | -80.00 | -7.78 | 215.39 | -33.13 | 108.86 | 0.5743 | -894.3 | 999999 | |
| 0.00 | 1.82 | 0.00 | 1.09 | -5.89 | 215.43 | -33.08 | 105.68 | 0.5661 | -940.0 | -855.5 | |
| 1.73 | -80.00 | 1.04 | -80.00 | -7.69 | 215.21 | -33.30 | 108.62 | 0.5763 | -867.2 | 999999 | |
| 0.00 | 1.54 | 0.00 | 0.94 | -9.54 | 214.98 | -33.53 | 111.52 | 0.5877 | -638.0 | -477.4 | |
| 0.00 | 2.36 | 0.00 | 1.41 | -5.03 | 215.34 | -33.18 | 104.16 | 0.5643 | -817.0 | -708.0 | |
| 0.00 | 0.91 | 0.00 | 0.55 | -5.28 | 215.21 | -33.30 | 104.54 | 0.5669 | -774.0 | -696.8 | |
| 0.00 | 1.00 | 0.00 | 0.61 | -9.14 | 214.81 | -33.71 | 110.77 | 0.5882 | -550.0 | -430.1 | |
| 0.00 | 0.91 | 0.00 | 0.55 | -5.29 | 214.92 | -33.60 | 104.43 | 0.5711 | -678.0 | -568.8 | |
| 8.99 | 129.64 | 5.44 | 78.90 | -6.19 | 214.78 | -33.73 | 105.90 | 0.5762 | -1138.8 | -392.8 | |
| 0.00 | 0.82 | 0.00 | 0.50 | -8.74 | 214.51 | -34.00 | 109.98 | 0.5902 | -805.0 | -630.0 | |
| 0.00 | 1.09 | 0.00 | 0.67 | -8.90 | 214.50 | -34.02 | 110.22 | 0.5912 | -554.0 | -447.4 | |
| 0.00 | 2.00 | 0.00 | 1.22 | -7.31 | 214.50 | -34.01 | 107.64 | 0.5843 | -867.0 | -729.5 | |
| 0.00 | 1.18 | 0.00 | 0.73 | -8.60 | 214.27 | -34.24 | 109.61 | 0.5928 | -548.0 | -426.4 | |
| 26.44 | -93.00 | 16.10 | -93.00 | -6.36 | 214.32 | -34.19 | 105.98 | 0.5831 | -1025.4 | 999999 | |
| 0.00 | 1.18 | 0.00 | 0.71 | -4.20 | 214.46 | -34.05 | 102.39 | 0.5739 | -759.0 | -590.7 | |
| 0.00 | 0.73 | 0.00 | 0.45 | -8.10 | 214.17 | -34.34 | 108.76 | 0.5920 | -631.0 | -522.9 | |
| 1.18 | -93.00 | 0.72 | -93.00 | -6.89 | 214.17 | -34.34 | 106.79 | 0.5872 | -631.1 | 999999 | |
| 0.00 | 1.64 | 0.00 | 1.00 | -7.79 | 214.05 | -34.46 | 108.21 | 0.5924 | -855.0 | -653.2 | |
| 0.00 | 2.27 | 0.00 | 1.39 | -7.27 | 214.06 | -34.45 | 107.35 | 0.5901 | -904.0 | -566.5 | |
| 0.00 | 3.18 | 0.00 | 1.99 | -10.78 | 213.44 | -35.07 | 112.60 | 0.6136 | -115.0 | -260.1 | |
| 0.73 | 4.45 | 0.45 | 2.73 | -7.28 | 213.80 | -34.71 | 107.24 | 0.5937 | -734.9 | -646.1 | |
| 0.00 | 0.91 | 0.00 | 0.56 | -7.74 | 213.68 | -34.83 | 107.95 | 0.5971 | -449.0 | -384.9 | |
| 0.00 | 1.73 | 0.00 | 1.06 | -7.56 | 213.66 | -34.85 | 107.64 | 0.5966 | -595.0 | -520.1 | |
| 0.00 | 1.36 | 0.00 | 0.85 | -8.56 | 213.41 | -35.10 | 109.12 | 0.6041 | -540.0 | -434.6 | |
| 0.00 | 1.82 | 0.00 | 1.12 | -7.66 | 213.31 | -35.20 | 107.64 | 0.6017 | -639.0 | -480.9 | |
| 0.00 | 1.64 | 0.00 | 1.03 | -10.17 | 213.03 | -35.49 | 111.43 | 0.6161 | -719.0 | -543.8 | |
| 0.00 | 2.09 | 0.00 | 1.29 | -6.17 | 213.44 | -35.07 | 105.29 | 0.5944 | -756.0 | -548.7 | |
| 2.54 | 7.63 | 1.57 | 4.71 | -6.55 | 213.26 | -35.25 | 105.83 | 0.5982 | -704.7 | -450.8 | |
| 0.00 | 1.27 | 0.00 | 0.80 | -10.05 | 212.81 | -35.70 | 111.14 | 0.6183 | -675.0 | -587.2 | |
| 0.00 | 0.91 | 0.00 | 0.58 | -10.34 | 211.66 | -36.86 | 110.99 | 0.6343 | -666.0 | -535.3 | |
| 0.00 | 1.45 | 0.00 | 0.93 | -9.97 | 211.47 | -37.04 | 110.35 | 0.6350 | -611.0 | -491.2 | |
| 0.00 | 0.36 | 0.00 | 0.23 | -10.32 | 211.39 | -37.12 | 110.83 | 0.6376 | -473.0 | -457.8 | |
| 0.00 | 2.27 | 0.00 | 1.42 | -4.84 | 211.75 | -36.76 | 102.50 | 0.6130 | -614.0 | -468.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
