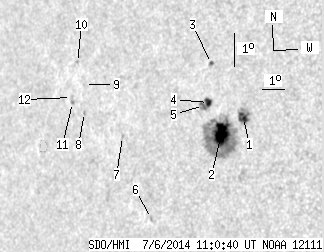

SDO HMI 2014-07-06 11:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 37.08 | 141.55 | 25.83 | 99.48 | 6.49 | 203.33 | -45.18 | 84.27 | 0.7103 | -641.7 | -240.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-06 11:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 6.45 | 13.63 | 4.43 | 9.36 | 6.85 | 204.62 | -43.89 | 83.69 | 0.6948 | -911.1 | -619.1 | |
| 24.08 | 105.30 | 16.78 | 73.46 | 6.32 | 203.73 | -44.78 | 84.49 | 0.7056 | -1022.9 | -264.7 | |
| 0.64 | 1.91 | 0.45 | 1.35 | 8.44 | 203.02 | -45.49 | 81.54 | 0.7155 | -523.9 | -388.6 | |
| 4.00 | 11.81 | 2.82 | 8.35 | 7.24 | 203.06 | -45.46 | 83.22 | 0.7143 | -611.3 | -330.2 | |
| 1.91 | -4.00 | 1.35 | -4.00 | 7.14 | 202.85 | -45.66 | 83.37 | 0.7168 | -509.4 | 999999 | |
| 0.00 | 1.45 | 0.00 | 1.07 | 3.60 | 200.86 | -47.65 | 88.26 | 0.7402 | -412.0 | -424.6 | |
| 0.00 | 1.36 | 0.00 | 1.03 | 6.04 | 199.29 | -49.22 | 84.99 | 0.7582 | 682.0 | 577.3 | |
| 0.00 | 1.18 | 0.00 | 0.93 | 6.69 | 197.38 | -51.14 | 84.18 | 0.7796 | 399.0 | 417.6 | |
| 0.00 | 0.27 | 0.00 | 0.22 | 7.54 | 197.24 | -51.27 | 83.08 | 0.7812 | 585.0 | 620.0 | |
| 0.00 | 1.36 | 0.00 | 1.09 | 8.20 | 196.78 | -51.73 | 82.27 | 0.7864 | 499.0 | 402.0 | |
| 0.00 | 1.64 | 0.00 | 1.31 | 6.97 | 196.74 | -51.77 | 83.84 | 0.7865 | 522.0 | 443.7 | |
| 0.00 | 1.64 | 0.00 | 1.31 | 7.12 | 196.67 | -51.84 | 83.65 | 0.7873 | 386.0 | 307.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
