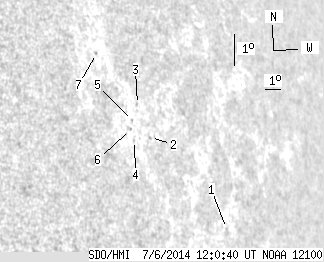

SDO HMI 2014-07-06 12:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 6.18 | 0.00 | 6.12 | 9.76 | 307.99 | 60.03 | 279.34 | 0.8667 | 343.4 | 261.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-06 12:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.18 | 0.00 | 1.33 | 6.66 | 312.09 | 64.13 | 275.73 | 0.9000 | -32.0 | -79.8 | |
| 0.00 | 0.82 | 0.00 | 0.81 | 9.68 | 307.88 | 59.92 | 279.21 | 0.8661 | 342.0 | 270.0 | |
| 0.00 | 0.91 | 0.00 | 0.88 | 10.73 | 307.40 | 59.44 | 280.44 | 0.8623 | 186.0 | 176.0 | |
| 0.00 | 0.27 | 0.00 | 0.26 | 9.64 | 306.89 | 58.93 | 279.19 | 0.8574 | 435.0 | 417.3 | |
| 0.00 | 1.00 | 0.00 | 0.96 | 10.26 | 306.95 | 58.99 | 279.91 | 0.8582 | 437.0 | 358.1 | |
| 0.00 | 0.91 | 0.00 | 0.87 | 9.99 | 306.75 | 58.79 | 279.60 | 0.8563 | 452.0 | 444.9 | |
| 0.00 | 1.09 | 0.00 | 1.01 | 12.41 | 305.51 | 57.55 | 282.52 | 0.8463 | 584.0 | 489.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
