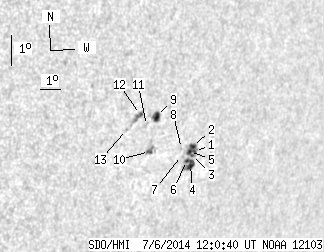

SDO HMI 2014-07-06 12:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 19.44 | 47.97 | 15.99 | 39.12 | -12.73 | 298.36 | 50.40 | 251.10 | 0.7964 | 221.2 | 35.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-06 12:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.91 | 24.98 | 0.76 | 20.93 | -13.09 | 299.60 | 51.64 | 251.04 | 0.8097 | 642.4 | 566.5 | |
| 2.73 | -1.00 | 2.28 | -1.00 | -12.92 | 299.45 | 51.49 | 251.20 | 0.8078 | 717.9 | 999999 | |
| 0.73 | -1.00 | 0.61 | -1.00 | -13.21 | 299.48 | 51.52 | 250.86 | 0.8089 | 720.6 | 999999 | |
| 4.63 | -1.00 | 3.89 | -1.00 | -13.50 | 299.52 | 51.56 | 250.53 | 0.8100 | 659.3 | 999999 | |
| 2.45 | -1.00 | 2.05 | -1.00 | -13.08 | 299.34 | 51.38 | 250.98 | 0.8072 | 898.7 | 999999 | |
| 1.27 | -1.00 | 1.06 | -1.00 | -13.36 | 299.27 | 51.31 | 250.62 | 0.8072 | 899.7 | 999999 | |
| 0.00 | 0.36 | 0.00 | 0.30 | -13.18 | 298.97 | 51.01 | 250.74 | 0.8038 | 172.0 | 220.2 | |
| 0.00 | 0.55 | 0.00 | 0.45 | -12.96 | 298.91 | 50.95 | 250.99 | 0.8026 | 535.0 | 507.2 | |
| 4.54 | 7.18 | 3.61 | 5.71 | -11.88 | 297.39 | 49.43 | 251.85 | 0.7845 | -632.9 | -436.7 | |
| 1.45 | 4.54 | 1.16 | 3.64 | -12.98 | 297.34 | 49.38 | 250.48 | 0.7870 | -696.6 | -468.1 | |
| 0.00 | 2.27 | 0.00 | 1.79 | -12.14 | 296.98 | 49.02 | 251.40 | 0.7810 | -354.0 | -252.1 | |
| 0.73 | 7.36 | 0.57 | 5.74 | -11.78 | 296.61 | 48.65 | 251.73 | 0.7761 | -624.9 | -494.1 | |
| 0.00 | 0.73 | 0.00 | 0.56 | -12.22 | 296.05 | 48.09 | 250.99 | 0.7715 | -408.0 | -391.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
