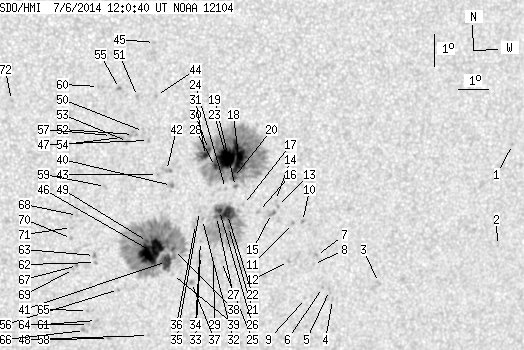

SDO HMI 2014-07-06 12:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 140.08 | 780.76 | 76.81 | 428.29 | -11.83 | 268.30 | 20.34 | 232.62 | 0.4307 | 258.8 | 49.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-06 12:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.09 | 0.00 | 0.65 | -10.19 | 279.00 | 31.04 | 245.89 | 0.5581 | 748.0 | 566.6 | |
| 0.00 | 1.00 | 0.00 | 0.60 | -13.37 | 278.85 | 30.89 | 240.65 | 0.5752 | 684.0 | 583.0 | |
| 0.00 | 2.09 | 0.00 | 1.22 | -14.42 | 274.72 | 26.76 | 235.43 | 0.5316 | 729.0 | 590.6 | |
| 0.00 | 1.45 | 0.00 | 0.84 | -14.92 | 273.17 | 25.21 | 233.06 | 0.5169 | 644.0 | 544.4 | |
| 0.00 | 2.36 | 0.00 | 1.36 | -14.63 | 273.03 | 25.07 | 233.38 | 0.5128 | 636.0 | 573.8 | |
| 0.00 | 0.82 | 0.00 | 0.47 | -14.52 | 272.77 | 24.81 | 233.27 | 0.5088 | 735.0 | 687.1 | |
| 0.00 | 0.64 | 0.00 | 0.36 | -13.49 | 272.45 | 24.49 | 234.63 | 0.4962 | 726.0 | 649.7 | |
| 0.00 | 0.73 | 0.00 | 0.41 | -13.78 | 272.37 | 24.41 | 234.08 | 0.4977 | 769.0 | 599.4 | |
| 0.00 | 0.64 | 0.00 | 0.36 | -14.86 | 272.22 | 24.26 | 232.12 | 0.5051 | 588.0 | 522.1 | |
| 0.00 | 1.27 | 0.00 | 0.72 | -12.40 | 271.85 | 23.89 | 235.89 | 0.4797 | 800.0 | 604.1 | |
| 0.00 | 1.18 | 0.00 | 0.66 | -12.45 | 271.52 | 23.56 | 235.42 | 0.4759 | 763.0 | 655.5 | |
| 0.00 | 1.27 | 0.00 | 0.72 | -13.66 | 271.50 | 23.54 | 233.31 | 0.4860 | 827.0 | 695.4 | |
| 0.00 | 1.18 | 0.00 | 0.66 | -11.90 | 270.96 | 23.00 | 235.79 | 0.4641 | 725.0 | 679.3 | |
| 0.00 | 0.45 | 0.00 | 0.25 | -11.71 | 270.87 | 22.91 | 236.04 | 0.4615 | 417.0 | 273.2 | |
| 0.00 | 4.09 | 0.00 | 2.28 | -12.12 | 270.77 | 22.81 | 235.18 | 0.4636 | 876.0 | 738.9 | |
| 0.00 | 1.45 | 0.00 | 0.81 | -12.04 | 270.33 | 22.37 | 234.80 | 0.4573 | 825.0 | 636.4 | |
| 0.00 | 1.18 | 0.00 | 0.65 | -11.81 | 269.80 | 21.84 | 234.60 | 0.4486 | 701.0 | 560.2 | |
| 26.07 | 300.14 | 14.31 | 164.48 | -10.29 | 269.52 | 21.56 | 237.17 | 0.4320 | 1111.0 | 422.2 | |
| 0.45 | 1.54 | 0.25 | 0.85 | -11.23 | 269.49 | 21.53 | 235.30 | 0.4396 | 780.6 | 583.1 | |
| 1.91 | -18.00 | 1.05 | -18.00 | -10.95 | 269.40 | 21.44 | 235.74 | 0.4360 | 726.2 | 999999 | |
| 1.09 | 117.64 | 0.60 | 65.11 | -12.49 | 269.36 | 21.40 | 232.78 | 0.4491 | 457.3 | 183.8 | |
| 14.90 | -21.00 | 8.23 | -21.00 | -12.11 | 269.29 | 21.33 | 233.40 | 0.4448 | 952.1 | 999999 | |
| 30.70 | -18.00 | 16.81 | -18.00 | -10.31 | 269.12 | 21.16 | 236.64 | 0.4270 | 1414.4 | 999999 | |
| 0.00 | 1.27 | 0.00 | 0.70 | -11.29 | 269.16 | 21.20 | 234.78 | 0.4358 | 567.0 | 476.1 | |
| 0.00 | 0.82 | 0.00 | 0.46 | -13.60 | 269.22 | 21.26 | 230.63 | 0.4577 | -673.0 | -545.3 | |
| 3.45 | -21.00 | 1.90 | -21.00 | -11.98 | 269.01 | 21.05 | 233.29 | 0.4401 | 1213.2 | 999999 | |
| 0.64 | -21.00 | 0.35 | -21.00 | -12.17 | 268.93 | 20.97 | 232.83 | 0.4408 | 893.0 | 999999 | |
| 2.82 | -18.00 | 1.54 | -18.00 | -10.59 | 268.77 | 20.81 | 235.66 | 0.4247 | 1154.0 | 999999 | |
| 0.00 | 1.73 | 0.00 | 0.96 | -13.50 | 268.94 | 20.98 | 230.45 | 0.4534 | -722.0 | -446.5 | |
| 1.91 | -18.00 | 1.04 | -18.00 | -10.05 | 268.51 | 20.54 | 236.41 | 0.4166 | 1244.8 | 999999 | |
| 3.72 | -18.00 | 2.03 | -18.00 | -10.24 | 268.42 | 20.46 | 235.92 | 0.4170 | 1248.6 | 999999 | |
| 0.00 | 1.36 | 0.00 | 0.75 | -12.25 | 268.47 | 20.51 | 232.07 | 0.4358 | 801.0 | 687.9 | |
| 0.00 | 1.54 | 0.00 | 0.85 | -13.40 | 268.50 | 20.54 | 230.04 | 0.4470 | 635.0 | 476.7 | |
| 0.00 | 1.00 | 0.00 | 0.55 | -12.95 | 268.46 | 20.50 | 230.78 | 0.4423 | 553.0 | 439.0 | |
| 0.00 | 1.00 | 0.00 | 0.55 | -12.00 | 268.35 | 20.39 | 232.39 | 0.4319 | 587.0 | 479.2 | |
| 0.00 | 5.90 | 0.00 | 3.24 | -12.41 | 268.25 | 20.29 | 231.49 | 0.4345 | 387.0 | 405.7 | |
| 0.00 | 1.91 | 0.00 | 1.06 | -14.25 | 268.27 | 20.31 | 228.25 | 0.4528 | -870.0 | -690.5 | |
| 1.54 | 268.98 | 0.85 | 147.06 | -13.18 | 267.58 | 19.62 | 229.14 | 0.4340 | -1059.9 | -512.6 | |
| 0.00 | 0.82 | 0.00 | 0.45 | -13.98 | 267.61 | 19.65 | 227.79 | 0.4424 | -671.0 | -546.6 | |
| 0.00 | 2.91 | 0.00 | 1.58 | -11.15 | 267.36 | 19.40 | 232.65 | 0.4116 | 853.0 | 733.8 | |
| 10.63 | -38.00 | 5.84 | -38.00 | -13.56 | 267.38 | 19.42 | 228.18 | 0.4354 | -959.9 | 999999 | |
| 0.00 | 4.81 | 0.00 | 2.61 | -10.68 | 267.16 | 19.20 | 233.33 | 0.4046 | 893.0 | 708.6 | |
| 0.00 | 1.00 | 0.00 | 0.54 | -10.80 | 266.87 | 18.91 | 232.67 | 0.4021 | 810.0 | 613.0 | |
| 0.00 | 1.36 | 0.00 | 0.73 | -8.32 | 266.70 | 18.74 | 237.73 | 0.3776 | 995.0 | 750.6 | |
| 0.00 | 1.09 | 0.00 | 0.58 | -6.68 | 266.57 | 18.60 | 241.43 | 0.3623 | 840.0 | 628.0 | |
| 38.34 | -38.00 | 20.97 | -38.00 | -13.23 | 266.85 | 18.89 | 228.00 | 0.4259 | -1362.5 | 999999 | |
| 0.00 | 1.45 | 0.00 | 0.78 | -9.72 | 266.51 | 18.55 | 234.38 | 0.3874 | 641.0 | 562.4 | |
| 0.00 | 1.09 | 0.00 | 0.61 | -15.93 | 266.99 | 19.03 | 223.67 | 0.4559 | -764.0 | -613.8 | |
| 1.91 | -38.00 | 1.04 | -38.00 | -12.91 | 266.69 | 18.73 | 228.35 | 0.4207 | -1272.4 | 999999 | |
| 0.00 | 2.36 | 0.00 | 1.27 | -9.44 | 266.34 | 18.37 | 234.73 | 0.3825 | 703.0 | 557.0 | |
| 0.00 | 2.18 | 0.00 | 1.16 | -8.34 | 266.09 | 18.12 | 236.82 | 0.3693 | 986.0 | 736.9 | |
| 0.00 | 4.81 | 0.00 | 2.58 | -9.53 | 266.02 | 18.05 | 234.07 | 0.3791 | 697.0 | 781.0 | |
| 0.00 | 2.00 | 0.00 | 1.07 | -9.74 | 265.83 | 17.87 | 233.33 | 0.3787 | 872.0 | 793.8 | |
| 0.00 | 1.82 | 0.00 | 0.97 | -9.61 | 265.63 | 17.67 | 233.30 | 0.3748 | 907.0 | 780.8 | |
| 0.00 | 1.54 | 0.00 | 0.82 | -8.08 | 265.49 | 17.53 | 236.55 | 0.3589 | 1002.0 | 836.9 | |
| 0.00 | 1.36 | 0.00 | 0.75 | -14.42 | 265.86 | 17.90 | 224.39 | 0.4271 | -883.0 | -609.7 | |
| 0.00 | 1.27 | 0.00 | 0.68 | -9.54 | 265.30 | 17.34 | 232.94 | 0.3699 | 824.0 | 726.6 | |
| 0.00 | 1.73 | 0.00 | 0.95 | -15.99 | 265.66 | 17.70 | 221.53 | 0.4426 | -922.0 | -735.6 | |
| 0.00 | 1.73 | 0.00 | 0.93 | -11.14 | 265.20 | 17.24 | 229.41 | 0.3845 | 705.0 | 519.5 | |
| 0.00 | 1.09 | 0.00 | 0.58 | -8.01 | 264.81 | 16.85 | 235.69 | 0.3490 | 911.0 | 686.2 | |
| 0.00 | 1.27 | 0.00 | 0.70 | -15.41 | 265.21 | 17.25 | 221.74 | 0.4312 | -775.0 | -700.2 | |
| 0.00 | 1.27 | 0.00 | 0.69 | -13.54 | 265.03 | 17.07 | 224.58 | 0.4082 | -838.0 | -659.5 | |
| 0.00 | 2.09 | 0.00 | 1.13 | -13.32 | 264.98 | 17.02 | 224.90 | 0.4052 | -966.0 | -825.3 | |
| 0.00 | 1.00 | 0.00 | 0.55 | -15.53 | 264.96 | 16.99 | 221.12 | 0.4300 | -803.0 | -616.8 | |
| 0.00 | 0.91 | 0.00 | 0.50 | -15.08 | 264.89 | 16.92 | 221.73 | 0.4240 | -768.0 | -704.6 | |
| 0.00 | 3.36 | 0.00 | 1.84 | -15.72 | 264.84 | 16.88 | 220.63 | 0.4310 | -721.0 | -579.0 | |
| 0.00 | 1.18 | 0.00 | 0.64 | -13.63 | 264.45 | 16.49 | 223.45 | 0.4027 | -962.0 | -796.1 | |
| 0.00 | 1.00 | 0.00 | 0.54 | -12.04 | 264.34 | 16.38 | 226.19 | 0.3838 | -747.0 | -667.4 | |
| 0.00 | 0.55 | 0.00 | 0.29 | -13.75 | 264.32 | 16.36 | 223.02 | 0.4028 | -1079.0 | -855.7 | |
| 0.00 | 1.54 | 0.00 | 0.83 | -12.77 | 264.19 | 16.23 | 224.57 | 0.3901 | -764.0 | -636.9 | |
| 0.00 | 1.09 | 0.00 | 0.59 | -12.42 | 264.17 | 16.21 | 225.18 | 0.3860 | -680.0 | -649.0 | |
| 0.00 | 1.36 | 0.00 | 0.71 | -8.39 | 262.05 | 14.08 | 229.82 | 0.3165 | -845.0 | -691.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
