SDO HMI 2014-07-06 12:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 56.61 | 340.85 | 29.46 | 177.21 | 15.10 | 261.02 | 13.05 | 313.58 | 0.3032 | -629.4 | -362.8 | |
|
previous
or next observation for the same group /

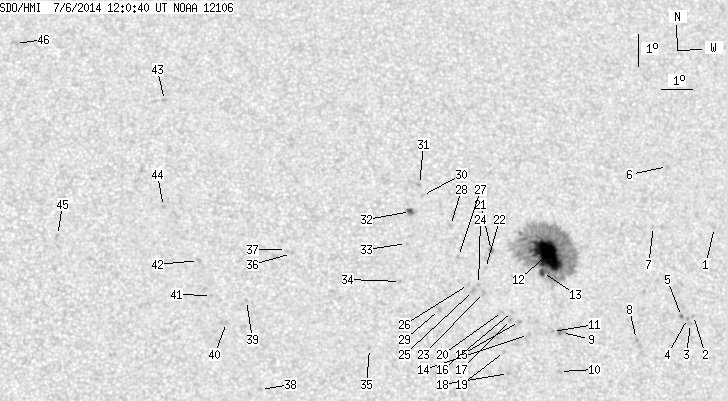

back to the solar disc SDO HMI 2014-07-06 12:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.09 | 0.00 | 0.59 | 15.96 | 267.34 | 19.37 | 304.60 | 0.3891 | -814.0 | -647.9 | |
| 0.00 | 1.36 | 0.00 | 0.72 | 13.24 | 266.39 | 18.43 | 299.38 | 0.3546 | -739.0 | -651.3 | |
| 0.00 | 1.73 | 0.00 | 0.91 | 13.00 | 266.27 | 18.31 | 298.90 | 0.3511 | -852.0 | -688.2 | |
| 0.00 | 1.18 | 0.00 | 0.62 | 13.15 | 266.18 | 18.22 | 299.41 | 0.3511 | -1048.0 | -853.6 | |
| 0.55 | 2.09 | 0.29 | 1.10 | 13.22 | 265.99 | 18.03 | 299.82 | 0.3488 | -966.8 | -772.3 | |
| 0.00 | 1.64 | 0.00 | 0.88 | 17.90 | 265.96 | 18.00 | 310.66 | 0.3892 | -895.0 | -721.6 | |
| 0.00 | 0.91 | 0.00 | 0.48 | 16.03 | 265.30 | 17.34 | 307.60 | 0.3631 | -707.0 | -546.6 | |
| 0.00 | 1.54 | 0.00 | 0.81 | 12.54 | 264.47 | 16.51 | 300.05 | 0.3218 | -972.0 | -839.2 | |
| 0.00 | 4.81 | 0.00 | 2.49 | 12.79 | 262.05 | 14.09 | 304.67 | 0.2900 | -911.0 | -813.6 | |
| 0.00 | 1.91 | 0.00 | 0.98 | 11.59 | 261.92 | 13.96 | 301.26 | 0.2777 | -934.0 | -778.0 | |
| 0.00 | 1.09 | 0.00 | 0.56 | 12.83 | 261.77 | 13.81 | 305.31 | 0.2864 | -909.0 | -782.6 | |
| 50.42 | 268.53 | 26.26 | 139.92 | 15.22 | 261.76 | 13.79 | 311.81 | 0.3100 | -1427.7 | -417.6 | |
| 2.82 | -12.00 | 1.46 | -12.00 | 14.66 | 261.56 | 13.59 | 310.78 | 0.3016 | -1083.7 | 999999 | |
| 0.00 | 1.64 | 0.00 | 0.84 | 12.75 | 260.99 | 13.03 | 306.58 | 0.2751 | -763.0 | -642.5 | |
| 0.00 | 1.64 | 0.00 | 0.84 | 13.15 | 260.72 | 12.76 | 308.34 | 0.2755 | -983.0 | -827.0 | |
| 0.00 | 0.82 | 0.00 | 0.42 | 13.46 | 260.52 | 12.56 | 309.69 | 0.2759 | -744.0 | -653.2 | |
| 0.00 | 1.36 | 0.00 | 0.70 | 13.22 | 260.44 | 12.48 | 309.14 | 0.2724 | -1054.0 | -815.1 | |
| 0.00 | 1.82 | 0.00 | 0.93 | 11.55 | 260.29 | 12.33 | 304.25 | 0.2543 | -831.0 | -561.6 | |
| 0.00 | 1.09 | 0.00 | 0.56 | 12.23 | 260.20 | 12.24 | 306.66 | 0.2593 | -859.0 | -665.5 | |
| 0.00 | 0.64 | 0.00 | 0.33 | 13.47 | 260.20 | 12.23 | 310.41 | 0.2719 | -776.0 | -573.6 | |
| 0.64 | 2.09 | 0.33 | 1.08 | 15.37 | 259.95 | 11.99 | 316.07 | 0.2900 | 853.9 | 714.9 | |
| 0.00 | 1.45 | 0.00 | 0.75 | 14.81 | 259.72 | 11.76 | 315.18 | 0.2808 | -794.0 | -577.1 | |
| 0.00 | 3.00 | 0.00 | 1.54 | 14.07 | 259.62 | 11.66 | 313.44 | 0.2711 | -873.0 | -695.1 | |
| 0.00 | 1.45 | 0.00 | 0.75 | 14.32 | 259.47 | 11.51 | 314.47 | 0.2721 | -806.0 | -633.7 | |
| 0.00 | 2.91 | 0.00 | 1.49 | 14.13 | 259.30 | 11.34 | 314.39 | 0.2680 | -952.0 | -775.3 | |
| 0.00 | 1.45 | 0.00 | 0.75 | 14.32 | 259.15 | 11.19 | 315.27 | 0.2684 | -789.0 | -580.0 | |
| 0.00 | 1.54 | 0.00 | 0.80 | 15.19 | 258.88 | 10.91 | 318.25 | 0.2756 | -868.0 | -700.6 | |
| 0.00 | 1.36 | 0.00 | 0.70 | 16.16 | 258.67 | 10.71 | 321.10 | 0.2855 | 636.0 | 488.5 | |
| 0.00 | 2.09 | 0.00 | 1.07 | 13.56 | 258.19 | 10.23 | 315.65 | 0.2480 | -959.0 | -727.4 | |
| 0.00 | 0.64 | 0.00 | 0.33 | 17.11 | 257.82 | 9.86 | 325.40 | 0.2894 | 825.0 | 665.1 | |
| 0.00 | 1.54 | 0.00 | 0.80 | 17.46 | 257.74 | 9.78 | 326.31 | 0.2934 | 936.0 | 761.1 | |
| 2.18 | 4.18 | 1.12 | 2.15 | 16.62 | 257.40 | 9.44 | 325.49 | 0.2788 | 1082.3 | 841.4 | |
| 0.00 | 1.27 | 0.00 | 0.65 | 15.62 | 257.23 | 9.27 | 323.77 | 0.2636 | 796.0 | 646.2 | |
| 0.00 | 1.18 | 0.00 | 0.60 | 14.44 | 256.98 | 9.02 | 321.58 | 0.2455 | 686.0 | 571.2 | |
| 0.00 | 1.27 | 0.00 | 0.64 | 12.37 | 255.92 | 7.96 | 319.03 | 0.2073 | 739.0 | 576.2 | |
| 0.00 | 0.73 | 0.00 | 0.37 | 15.34 | 253.55 | 5.59 | 335.54 | 0.2278 | 796.0 | 598.4 | |
| 0.00 | 0.73 | 0.00 | 0.37 | 15.46 | 253.39 | 5.43 | 336.37 | 0.2287 | 563.0 | 563.6 | |
| 0.00 | 1.54 | 0.00 | 0.77 | 11.14 | 252.48 | 4.52 | 330.04 | 0.1555 | 841.0 | 621.8 | |
| 0.00 | 1.09 | 0.00 | 0.55 | 13.89 | 252.09 | 4.13 | 338.92 | 0.1953 | 817.0 | 614.8 | |
| 0.00 | 1.18 | 0.00 | 0.59 | 13.21 | 251.45 | 3.49 | 340.75 | 0.1806 | 941.0 | 796.2 | |
| 0.00 | 1.09 | 0.00 | 0.55 | 14.05 | 250.99 | 3.03 | 344.43 | 0.1920 | 865.0 | 697.1 | |
| 0.00 | 2.18 | 0.00 | 1.10 | 15.14 | 250.60 | 2.64 | 347.64 | 0.2085 | 798.0 | 646.1 | |
| 0.00 | 1.73 | 0.00 | 0.89 | 20.17 | 249.58 | 1.62 | 354.75 | 0.2904 | 768.0 | 572.8 | |
| 0.00 | 1.36 | 0.00 | 0.69 | 16.83 | 249.51 | 1.55 | 353.63 | 0.2340 | 901.0 | 734.9 | |
| 0.00 | 1.09 | 0.00 | 0.55 | 15.92 | 246.14 | -1.82 | 8.04 | 0.2193 | 744.0 | 638.2 | |
| 0.00 | 3.82 | 0.00 | 2.00 | 22.00 | 244.70 | -3.26 | 9.41 | 0.3241 | 548.0 | 424.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
