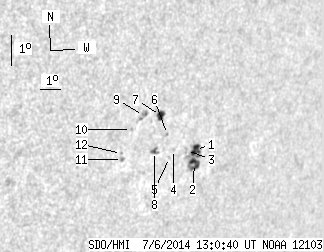

SDO HMI 2014-07-06 13:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 18.71 | 52.15 | 15.65 | 43.15 | -12.88 | 298.45 | 51.04 | 251.11 | 0.8031 | 148.4 | 69.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-06 13:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 6.36 | 27.61 | 5.39 | 23.44 | -13.04 | 299.44 | 52.03 | 251.21 | 0.8134 | 770.6 | 491.9 | |
| 6.54 | -1.00 | 5.57 | -1.00 | -13.49 | 299.52 | 52.11 | 250.70 | 0.8153 | 677.5 | 999999 | |
| 0.00 | 2.00 | 0.00 | 1.67 | -13.05 | 298.98 | 51.57 | 251.07 | 0.8090 | 653.0 | 557.9 | |
| 0.00 | 1.18 | 0.00 | 0.98 | -12.99 | 298.31 | 50.90 | 250.94 | 0.8023 | 300.0 | 265.1 | |
| 0.00 | 1.00 | 0.00 | 0.82 | -13.24 | 298.18 | 50.77 | 250.60 | 0.8017 | 275.0 | 222.8 | |
| 0.00 | 0.73 | 0.00 | 0.59 | -12.49 | 297.88 | 50.47 | 251.41 | 0.7967 | -261.0 | -211.1 | |
| 4.63 | 6.81 | 3.73 | 5.48 | -11.87 | 297.37 | 49.96 | 252.02 | 0.7899 | -625.0 | -408.4 | |
| 1.18 | 3.82 | 0.96 | 3.09 | -13.01 | 297.38 | 49.97 | 250.63 | 0.7930 | -742.4 | -541.0 | |
| 0.00 | 5.36 | 0.00 | 4.23 | -11.83 | 296.54 | 49.13 | 251.82 | 0.7813 | -688.0 | -534.8 | |
| 0.00 | 1.00 | 0.00 | 0.78 | -12.25 | 296.07 | 48.66 | 251.15 | 0.7776 | -372.0 | -394.4 | |
| 0.00 | 1.82 | 0.00 | 1.43 | -13.19 | 295.89 | 48.48 | 249.92 | 0.7784 | -676.0 | -501.6 | |
| 0.00 | 0.82 | 0.00 | 0.64 | -12.99 | 295.79 | 48.38 | 250.13 | 0.7768 | -604.0 | -519.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
