SDO HMI 2014-07-06 13:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 131.25 | 773.11 | 72.27 | 425.75 | -11.92 | 268.29 | 20.88 | 233.15 | 0.4383 | 206.0 | 61.4 | |
|
previous
or next observation for the same group /

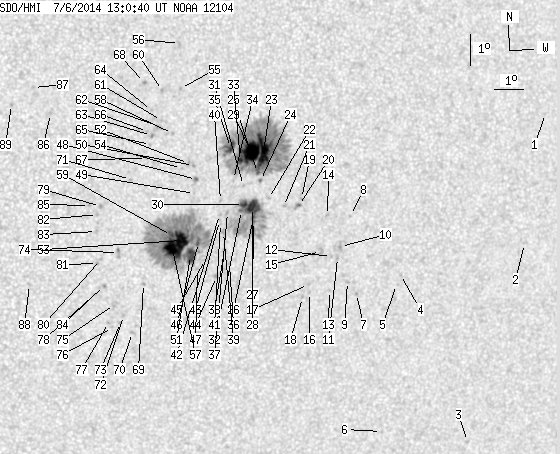

back to the solar disc SDO HMI 2014-07-06 13:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.73 | 0.00 | 0.44 | -9.43 | 279.28 | 31.87 | 247.68 | 0.5651 | 572.0 | 505.1 | |
| 0.00 | 0.91 | 0.00 | 0.55 | -13.52 | 279.02 | 31.61 | 240.95 | 0.5851 | 605.0 | 499.6 | |
| 0.00 | 1.64 | 0.00 | 1.03 | -19.90 | 278.05 | 30.64 | 230.97 | 0.6190 | 505.0 | 427.8 | |
| 0.00 | 1.09 | 0.00 | 0.64 | -14.37 | 274.66 | 27.25 | 235.98 | 0.5372 | 736.0 | 639.9 | |
| 0.00 | 0.55 | 0.00 | 0.32 | -14.68 | 274.56 | 27.15 | 235.38 | 0.5384 | 445.0 | 521.2 | |
| 0.00 | 1.00 | 0.00 | 0.61 | -19.47 | 274.77 | 27.36 | 228.53 | 0.5805 | 520.0 | 415.3 | |
| 0.00 | 1.00 | 0.00 | 0.58 | -14.93 | 273.18 | 25.77 | 233.62 | 0.5238 | 688.0 | 607.9 | |
| 0.00 | 1.09 | 0.00 | 0.62 | -12.43 | 272.68 | 25.27 | 237.27 | 0.4975 | 682.0 | 566.1 | |
| 0.00 | 1.64 | 0.00 | 0.94 | -14.54 | 272.81 | 25.40 | 233.88 | 0.5161 | 791.0 | 647.0 | |
| 0.00 | 3.72 | 0.00 | 2.13 | -13.41 | 272.44 | 25.03 | 235.35 | 0.5023 | 776.0 | 660.0 | |
| 0.00 | 2.18 | 0.00 | 1.25 | -13.76 | 272.37 | 24.96 | 234.70 | 0.5043 | 690.0 | 386.0 | |
| 0.00 | 0.82 | 0.00 | 0.47 | -13.72 | 272.16 | 24.75 | 234.53 | 0.5014 | 735.0 | 635.4 | |
| 0.00 | 1.00 | 0.00 | 0.58 | -14.81 | 272.22 | 24.81 | 232.81 | 0.5113 | 625.0 | 510.5 | |
| 0.00 | 1.54 | 0.00 | 0.87 | -12.41 | 271.89 | 24.48 | 236.49 | 0.4872 | 904.0 | 657.9 | |
| 0.00 | 3.72 | 0.00 | 2.12 | -13.55 | 271.76 | 24.35 | 234.39 | 0.4951 | 628.0 | 715.7 | |
| 0.00 | 1.00 | 0.00 | 0.57 | -14.86 | 271.53 | 24.12 | 231.97 | 0.5034 | 653.0 | 576.5 | |
| 0.00 | 1.18 | 0.00 | 0.67 | -14.60 | 271.47 | 24.06 | 232.32 | 0.5004 | 697.0 | 571.1 | |
| 0.00 | 1.18 | 0.00 | 0.68 | -15.01 | 271.31 | 23.90 | 231.47 | 0.5022 | 716.0 | 526.8 | |
| 0.00 | 1.36 | 0.00 | 0.76 | -11.85 | 270.94 | 23.53 | 236.48 | 0.4706 | 796.0 | 636.4 | |
| 0.55 | 3.09 | 0.31 | 1.73 | -12.07 | 270.86 | 23.45 | 235.99 | 0.4714 | 812.8 | 730.9 | |
| 0.00 | 1.18 | 0.00 | 0.66 | -12.09 | 270.35 | 22.94 | 235.39 | 0.4651 | 758.0 | 591.0 | |
| 0.00 | 1.36 | 0.00 | 0.76 | -11.82 | 269.82 | 22.41 | 235.26 | 0.4560 | 699.0 | 556.3 | |
| 17.35 | 294.30 | 9.56 | 161.88 | -10.34 | 269.54 | 22.13 | 237.75 | 0.4400 | 1140.3 | 468.4 | |
| 0.36 | 1.54 | 0.20 | 0.85 | -11.25 | 269.51 | 22.10 | 235.96 | 0.4471 | 758.5 | 611.0 | |
| 0.27 | -23.00 | 0.15 | -23.00 | -10.99 | 269.39 | 21.98 | 236.30 | 0.4434 | 768.7 | 999999 | |
| 1.82 | 103.82 | 1.01 | 57.67 | -12.41 | 269.37 | 21.96 | 233.63 | 0.4554 | 569.2 | 161.0 | |
| 0.64 | -26.00 | 0.35 | -26.00 | -12.54 | 269.38 | 21.97 | 233.42 | 0.4567 | 486.6 | 999999 | |
| 15.26 | -26.00 | 8.47 | -26.00 | -12.09 | 269.31 | 21.90 | 234.14 | 0.4518 | 926.7 | 999999 | |
| 23.71 | -23.00 | 13.03 | -23.00 | -10.33 | 269.14 | 21.73 | 237.30 | 0.4346 | 1449.5 | 999999 | |
| 4.54 | -26.00 | 2.51 | -26.00 | -11.99 | 269.00 | 21.59 | 233.95 | 0.4470 | 1176.6 | 999999 | |
| 0.00 | 1.18 | 0.00 | 0.65 | -11.39 | 268.95 | 21.54 | 235.01 | 0.4411 | 563.0 | 498.3 | |
| 1.27 | -26.00 | 0.70 | -26.00 | -12.18 | 268.95 | 21.54 | 233.54 | 0.4480 | 860.4 | 999999 | |
| 2.27 | -23.00 | 1.25 | -23.00 | -10.60 | 268.79 | 21.38 | 236.34 | 0.4323 | 1163.2 | 999999 | |
| 0.00 | 1.73 | 0.00 | 0.95 | -11.19 | 268.60 | 21.19 | 234.96 | 0.4349 | 436.0 | 375.7 | |
| 7.72 | -23.00 | 4.22 | -23.00 | -10.18 | 268.43 | 21.02 | 236.73 | 0.4240 | 1263.5 | 999999 | |
| 0.00 | 1.18 | 0.00 | 0.66 | -13.89 | 268.70 | 21.29 | 230.17 | 0.4608 | -771.0 | -616.6 | |
| 0.00 | 1.27 | 0.00 | 0.70 | -12.23 | 268.48 | 21.07 | 232.85 | 0.4427 | 871.0 | 678.7 | |
| 0.00 | 1.18 | 0.00 | 0.66 | -13.41 | 268.48 | 21.07 | 230.74 | 0.4536 | 498.0 | 389.6 | |
| 0.00 | 2.91 | 0.00 | 1.61 | -12.86 | 268.40 | 20.99 | 231.59 | 0.4475 | 576.0 | 447.5 | |
| 0.00 | 1.36 | 0.00 | 0.75 | -11.85 | 268.22 | 20.81 | 233.23 | 0.4358 | 569.0 | 470.7 | |
| 0.00 | 0.64 | 0.00 | 0.35 | -12.57 | 268.28 | 20.87 | 231.95 | 0.4433 | 460.0 | 377.4 | |
| 0.00 | 1.54 | 0.00 | 0.85 | -12.29 | 268.22 | 20.81 | 232.40 | 0.4399 | 540.0 | 501.5 | |
| 0.00 | 0.91 | 0.00 | 0.50 | -12.48 | 268.24 | 20.83 | 232.07 | 0.4419 | 535.0 | 431.3 | |
| 0.00 | 2.09 | 0.00 | 1.16 | -14.26 | 268.30 | 20.89 | 229.00 | 0.4596 | -846.0 | -698.4 | |
| 0.00 | 1.82 | 0.00 | 1.01 | -13.71 | 267.87 | 20.46 | 229.39 | 0.4493 | -174.0 | -124.9 | |
| 2.36 | 264.33 | 1.30 | 144.99 | -13.16 | 267.59 | 20.18 | 229.97 | 0.4405 | -1027.6 | -515.3 | |
| 0.00 | 1.00 | 0.00 | 0.55 | -13.99 | 267.63 | 20.22 | 228.57 | 0.4492 | -669.0 | -525.5 | |
| 0.45 | 1.91 | 0.25 | 1.04 | -11.16 | 267.37 | 19.96 | 233.41 | 0.4189 | 847.4 | 699.1 | |
| 0.00 | 0.91 | 0.00 | 0.50 | -11.60 | 267.34 | 19.93 | 232.51 | 0.4225 | 393.0 | 261.6 | |
| 0.00 | 1.36 | 0.00 | 0.74 | -10.72 | 267.24 | 19.83 | 234.11 | 0.4131 | 865.0 | 688.1 | |
| 11.99 | -46.00 | 6.62 | -46.00 | -13.57 | 267.36 | 19.95 | 228.92 | 0.4418 | -953.7 | 999999 | |
| 0.00 | 2.27 | 0.00 | 1.23 | -10.65 | 267.07 | 19.66 | 234.01 | 0.4104 | 939.0 | 722.6 | |
| 17.35 | -46.00 | 9.53 | -46.00 | -13.09 | 267.02 | 19.61 | 229.31 | 0.4329 | -1396.1 | 999999 | |
| 0.00 | 0.73 | 0.00 | 0.39 | -10.81 | 266.85 | 19.44 | 233.40 | 0.4089 | 719.0 | 598.1 | |
| 0.00 | 0.91 | 0.00 | 0.49 | -8.30 | 266.67 | 19.26 | 238.48 | 0.3846 | 866.0 | 749.5 | |
| 0.00 | 2.09 | 0.00 | 1.11 | -6.90 | 266.58 | 19.17 | 241.59 | 0.3721 | 773.0 | 669.7 | |
| 20.71 | -46.00 | 11.37 | -46.00 | -13.33 | 266.74 | 19.33 | 228.46 | 0.4321 | -1294.9 | 999999 | |
| 0.00 | 1.36 | 0.00 | 0.73 | -9.70 | 266.49 | 19.08 | 235.17 | 0.3941 | 778.0 | 592.1 | |
| 2.63 | -46.00 | 1.44 | -46.00 | -12.92 | 266.67 | 19.26 | 229.11 | 0.4271 | -1268.0 | 999999 | |
| 0.00 | 1.64 | 0.00 | 0.87 | -8.35 | 266.09 | 18.68 | 237.58 | 0.3770 | 1022.0 | 866.1 | |
| 0.00 | 1.18 | 0.00 | 0.63 | -9.29 | 266.10 | 18.69 | 235.52 | 0.3853 | 778.0 | 596.4 | |
| 0.00 | 2.82 | 0.00 | 1.51 | -9.47 | 266.05 | 18.64 | 235.04 | 0.3863 | 865.0 | 762.0 | |
| 0.00 | 1.73 | 0.00 | 0.93 | -9.75 | 265.80 | 18.39 | 234.09 | 0.3856 | 797.0 | 798.3 | |
| 0.00 | 1.00 | 0.00 | 0.53 | -8.97 | 265.76 | 18.35 | 235.73 | 0.3779 | 742.0 | 661.7 | |
| 0.00 | 1.09 | 0.00 | 0.59 | -10.03 | 265.79 | 18.38 | 233.47 | 0.3880 | 796.0 | 586.6 | |
| 0.00 | 1.00 | 0.00 | 0.54 | -9.62 | 265.67 | 18.26 | 234.16 | 0.3826 | 947.0 | 732.4 | |
| 0.00 | 1.00 | 0.00 | 0.54 | -10.47 | 265.68 | 18.27 | 232.40 | 0.3908 | 631.0 | 508.5 | |
| 0.00 | 1.36 | 0.00 | 0.73 | -8.09 | 265.49 | 18.08 | 237.34 | 0.3666 | 1060.0 | 921.3 | |
| 0.00 | 1.64 | 0.00 | 0.90 | -14.43 | 265.87 | 18.46 | 225.25 | 0.4336 | -534.0 | -469.7 | |
| 0.00 | 1.91 | 0.00 | 1.06 | -16.00 | 265.64 | 18.23 | 222.35 | 0.4484 | -1014.0 | -744.6 | |
| 0.00 | 1.09 | 0.00 | 0.59 | -11.12 | 265.20 | 17.79 | 230.33 | 0.3911 | 668.0 | 504.2 | |
| 0.00 | 1.36 | 0.00 | 0.75 | -15.45 | 265.29 | 17.88 | 222.68 | 0.4384 | -721.0 | -637.2 | |
| 0.00 | 0.82 | 0.00 | 0.45 | -15.67 | 265.21 | 17.80 | 222.20 | 0.4401 | -562.0 | -469.3 | |
| 0.00 | 3.63 | 0.00 | 1.97 | -13.42 | 264.96 | 17.55 | 225.58 | 0.4124 | -938.0 | -820.5 | |
| 0.00 | 4.72 | 0.00 | 2.59 | -15.09 | 264.96 | 17.55 | 222.74 | 0.4308 | -661.0 | -611.8 | |
| 0.00 | 1.09 | 0.00 | 0.60 | -15.83 | 264.96 | 17.55 | 221.55 | 0.4392 | -563.0 | -438.3 | |
| 0.00 | 1.36 | 0.00 | 0.75 | -15.66 | 264.81 | 17.40 | 221.57 | 0.4358 | -844.0 | -678.5 | |
| 0.00 | 1.54 | 0.00 | 0.84 | -14.47 | 264.58 | 17.17 | 223.15 | 0.4198 | -862.0 | -727.5 | |
| 0.00 | 1.82 | 0.00 | 0.98 | -11.95 | 264.27 | 16.86 | 227.18 | 0.3885 | -951.0 | -805.7 | |
| 0.00 | 1.00 | 0.00 | 0.54 | -13.64 | 264.39 | 16.98 | 224.27 | 0.4083 | -955.0 | -767.2 | |
| 0.00 | 0.91 | 0.00 | 0.49 | -13.76 | 264.30 | 16.89 | 223.90 | 0.4087 | -900.0 | -750.3 | |
| 0.00 | 1.27 | 0.00 | 0.68 | -12.20 | 264.19 | 16.78 | 226.56 | 0.3903 | -806.0 | -653.4 | |
| 0.00 | 1.64 | 0.00 | 0.88 | -12.74 | 264.19 | 16.78 | 225.56 | 0.3962 | -688.0 | -556.4 | |
| 0.00 | 1.18 | 0.00 | 0.64 | -14.75 | 264.28 | 16.87 | 222.17 | 0.4197 | -702.0 | -604.2 | |
| 0.00 | 1.00 | 0.00 | 0.54 | -11.91 | 263.91 | 16.50 | 226.65 | 0.3839 | -765.0 | -600.6 | |
| 0.00 | 1.09 | 0.00 | 0.57 | -9.00 | 262.51 | 15.10 | 230.32 | 0.3357 | -765.0 | -607.2 | |
| 0.00 | 1.54 | 0.00 | 0.81 | -8.18 | 261.93 | 14.52 | 231.20 | 0.3199 | -803.0 | -604.6 | |
| 0.00 | 1.45 | 0.00 | 0.78 | -14.39 | 262.12 | 14.71 | 218.94 | 0.3930 | -711.0 | -518.1 | |
| 0.00 | 0.91 | 0.00 | 0.47 | -8.70 | 261.25 | 13.84 | 228.59 | 0.3167 | -792.0 | -674.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
