SDO HMI 2014-07-06 13:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 37.53 | 140.35 | 25.65 | 97.07 | 6.55 | 203.17 | -44.24 | 84.13 | 0.6986 | -537.6 | -210.3 | |
|
previous
or next observation for the same group /

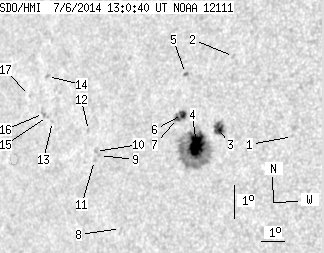

back to the solar disc SDO HMI 2014-07-06 13:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.09 | 0.00 | 0.70 | 6.77 | 207.67 | -39.74 | 83.55 | 0.6412 | -356.0 | -350.2 | |
| 0.00 | 2.00 | 0.00 | 1.34 | 9.12 | 204.96 | -42.44 | 80.26 | 0.6784 | -602.0 | -458.2 | |
| 7.18 | 11.72 | 4.84 | 7.90 | 6.90 | 204.62 | -42.79 | 83.56 | 0.6810 | -879.4 | -613.6 | |
| 23.53 | 99.55 | 16.09 | 68.18 | 6.34 | 203.75 | -43.66 | 84.42 | 0.6917 | -1014.6 | -286.5 | |
| 0.55 | 2.00 | 0.38 | 1.39 | 8.52 | 203.01 | -44.40 | 81.34 | 0.7023 | -576.3 | -428.4 | |
| 3.91 | 10.36 | 2.70 | 7.18 | 7.26 | 203.05 | -44.36 | 83.13 | 0.7009 | -684.7 | -359.3 | |
| 2.36 | -6.00 | 1.64 | -6.00 | 7.13 | 202.85 | -44.56 | 83.33 | 0.7033 | -516.8 | 999999 | |
| 0.00 | 0.91 | 0.00 | 0.66 | 3.68 | 200.67 | -46.74 | 88.19 | 0.7294 | -582.0 | -431.1 | |
| 0.00 | 1.09 | 0.00 | 0.80 | 5.86 | 199.52 | -47.89 | 85.21 | 0.7428 | 614.0 | 560.5 | |
| 0.00 | 1.45 | 0.00 | 1.08 | 5.97 | 199.32 | -48.09 | 85.06 | 0.7452 | 689.0 | 611.8 | |
| 0.00 | 1.36 | 0.00 | 1.01 | 5.70 | 199.31 | -48.10 | 85.43 | 0.7453 | 605.0 | 482.1 | |
| 0.00 | 1.18 | 0.00 | 0.88 | 6.60 | 198.92 | -48.49 | 84.23 | 0.7499 | 516.0 | 438.5 | |
| 0.00 | 1.00 | 0.00 | 0.77 | 6.80 | 197.19 | -50.22 | 84.02 | 0.7695 | 456.0 | 400.0 | |
| 0.00 | 2.00 | 0.00 | 1.56 | 8.16 | 196.73 | -50.68 | 82.27 | 0.7750 | 529.0 | 450.8 | |
| 0.00 | 1.09 | 0.00 | 0.85 | 6.94 | 196.93 | -50.48 | 83.84 | 0.7725 | 659.0 | 475.8 | |
| 0.00 | 2.91 | 0.00 | 2.27 | 7.02 | 196.72 | -50.69 | 83.74 | 0.7748 | 445.0 | 372.5 | |
| 0.00 | 0.64 | 0.00 | 0.50 | 7.54 | 195.95 | -51.46 | 83.10 | 0.7833 | 323.0 | 268.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
