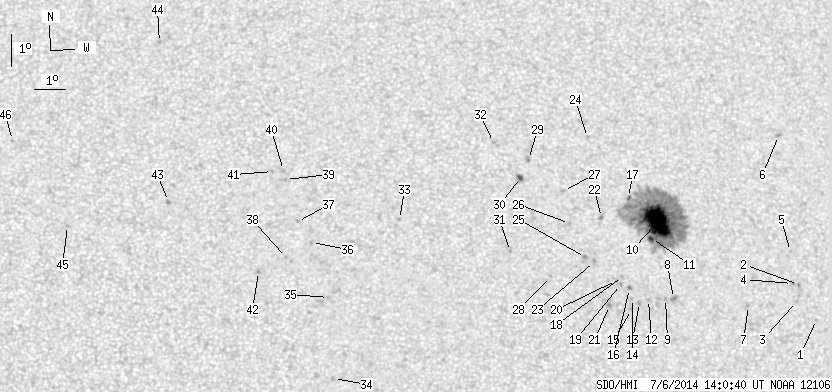

SDO HMI 2014-07-06 14:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 53.48 | 344.31 | 27.98 | 179.84 | 15.13 | 260.84 | 13.98 | 312.14 | 0.3152 | -573.8 | -327.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2014-07-06 14:00:40 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.00 | 0.00 | 0.53 | 12.07 | 266.75 | 19.89 | 294.76 | 0.3679 | 719.0 | 564.5 | |
| 0.00 | 1.45 | 0.00 | 0.77 | 13.16 | 266.24 | 19.38 | 298.04 | 0.3677 | -920.0 | -781.7 | |
| 0.00 | 1.00 | 0.00 | 0.53 | 12.64 | 266.13 | 19.27 | 296.85 | 0.3625 | -800.0 | -641.5 | |
| 0.00 | 1.09 | 0.00 | 0.58 | 13.20 | 266.04 | 19.18 | 298.35 | 0.3651 | -912.0 | -771.8 | |
| 0.00 | 1.09 | 0.00 | 0.58 | 14.19 | 266.06 | 19.20 | 300.74 | 0.3726 | -744.0 | -629.4 | |
| 0.00 | 2.54 | 0.00 | 1.38 | 17.81 | 266.03 | 19.17 | 308.80 | 0.4028 | -995.0 | -694.9 | |
| 0.00 | 0.54 | 0.00 | 0.29 | 12.54 | 264.54 | 17.68 | 298.49 | 0.3388 | -983.0 | -858.5 | |
| 0.00 | 3.18 | 0.00 | 1.65 | 12.80 | 262.11 | 15.26 | 302.69 | 0.3063 | -1005.0 | -836.6 | |
| 0.00 | 1.09 | 0.00 | 0.57 | 12.81 | 261.86 | 15.00 | 303.13 | 0.3027 | -837.0 | -730.7 | |
| 48.95 | 277.74 | 25.62 | 145.41 | 15.20 | 261.76 | 14.90 | 309.65 | 0.3237 | -1421.4 | -406.3 | |
| 2.54 | -10.00 | 1.33 | -10.00 | 14.67 | 261.53 | 14.67 | 308.75 | 0.3155 | -1119.4 | 999999 | |
| 0.00 | 1.18 | 0.00 | 0.61 | 12.79 | 261.31 | 14.45 | 304.01 | 0.2948 | -769.0 | -629.5 | |
| 0.00 | 2.09 | 0.00 | 1.08 | 12.70 | 261.01 | 14.15 | 304.28 | 0.2899 | -891.0 | -785.2 | |
| 0.00 | 0.73 | 0.00 | 0.38 | 12.83 | 260.79 | 13.93 | 305.05 | 0.2881 | -819.0 | -678.5 | |
| 0.00 | 1.00 | 0.00 | 0.52 | 12.49 | 260.74 | 13.88 | 304.14 | 0.2843 | -896.0 | -752.5 | |
| 0.00 | 1.73 | 0.00 | 0.89 | 13.14 | 260.71 | 13.86 | 306.10 | 0.2899 | -941.0 | -761.9 | |
| 0.54 | -10.00 | 0.28 | -10.00 | 15.96 | 260.87 | 14.01 | 313.18 | 0.3206 | -866.2 | 999999 | |
| 0.00 | 1.36 | 0.00 | 0.71 | 13.51 | 260.51 | 13.65 | 307.55 | 0.2907 | -722.0 | -575.5 | |
| 0.00 | 1.63 | 0.00 | 0.85 | 13.26 | 260.43 | 13.57 | 307.01 | 0.2873 | -892.0 | -746.3 | |
| 0.00 | 0.91 | 0.00 | 0.47 | 13.39 | 260.31 | 13.45 | 307.60 | 0.2869 | -883.0 | -731.6 | |
| 0.00 | 2.00 | 0.00 | 1.03 | 12.62 | 260.04 | 13.18 | 305.88 | 0.2759 | -992.0 | -885.5 | |
| 0.00 | 2.27 | 0.00 | 1.18 | 15.35 | 259.95 | 13.09 | 313.58 | 0.3028 | 973.0 | 687.7 | |
| 0.00 | 1.91 | 0.00 | 0.99 | 13.99 | 259.64 | 12.78 | 310.67 | 0.2842 | -854.0 | -770.0 | |
| 0.00 | 1.82 | 0.00 | 0.95 | 17.86 | 259.66 | 12.81 | 319.88 | 0.3288 | -532.0 | -461.1 | |
| 0.00 | 2.09 | 0.00 | 1.08 | 14.12 | 259.35 | 12.50 | 311.64 | 0.2820 | -892.0 | -823.8 | |
| 0.00 | 1.36 | 0.00 | 0.70 | 15.18 | 258.90 | 12.04 | 315.47 | 0.2884 | -898.0 | -731.9 | |
| 0.00 | 1.73 | 0.00 | 0.90 | 16.21 | 258.77 | 11.91 | 318.27 | 0.2990 | 630.0 | 512.8 | |
| 0.00 | 1.36 | 0.00 | 0.70 | 13.54 | 258.20 | 11.34 | 312.71 | 0.2613 | -825.0 | -661.7 | |
| 0.00 | 2.27 | 0.00 | 1.18 | 17.19 | 257.69 | 10.84 | 323.05 | 0.3000 | 969.0 | 798.5 | |
| 1.45 | 3.36 | 0.75 | 1.74 | 16.63 | 257.40 | 10.54 | 322.58 | 0.2898 | 1131.4 | 869.4 | |
| 0.00 | 1.00 | 0.00 | 0.51 | 14.33 | 256.96 | 10.10 | 318.16 | 0.2559 | 670.0 | 524.7 | |
| 0.00 | 1.09 | 0.00 | 0.57 | 17.74 | 256.59 | 9.73 | 326.99 | 0.2968 | 780.0 | 642.3 | |
| 0.00 | 1.45 | 0.00 | 0.74 | 15.36 | 253.46 | 6.61 | 331.80 | 0.2358 | 807.0 | 707.6 | |
| 0.00 | 1.54 | 0.00 | 0.77 | 10.46 | 251.27 | 4.42 | 328.25 | 0.1445 | 805.0 | 734.8 | |
| 0.00 | 1.36 | 0.00 | 0.69 | 12.96 | 251.16 | 4.30 | 336.16 | 0.1817 | 867.0 | 677.8 | |
| 0.00 | 1.36 | 0.00 | 0.69 | 14.66 | 250.66 | 3.80 | 341.77 | 0.2059 | 704.0 | 596.7 | |
| 0.00 | 1.54 | 0.00 | 0.78 | 15.32 | 250.23 | 3.37 | 344.61 | 0.2145 | 847.0 | 626.2 | |
| 0.00 | 1.18 | 0.00 | 0.60 | 14.20 | 249.86 | 3.00 | 344.78 | 0.1944 | 767.0 | 581.3 | |
| 0.00 | 1.18 | 0.00 | 0.60 | 16.63 | 249.87 | 3.01 | 347.56 | 0.2347 | 824.0 | 688.5 | |
| 0.00 | 1.73 | 0.00 | 0.88 | 16.91 | 249.81 | 2.95 | 348.06 | 0.2392 | 801.0 | 561.0 | |
| 0.00 | 1.18 | 0.00 | 0.60 | 16.88 | 249.46 | 2.60 | 349.42 | 0.2376 | 883.0 | 665.2 | |
| 0.00 | 1.73 | 0.00 | 0.87 | 13.77 | 248.98 | 2.12 | 348.67 | 0.1837 | 932.0 | 764.4 | |
| 0.00 | 1.82 | 0.00 | 0.92 | 15.95 | 246.15 | -0.71 | 3.15 | 0.2179 | 920.0 | 751.2 | |
| 0.00 | 1.82 | 0.00 | 0.94 | 20.97 | 245.84 | -1.02 | 3.15 | 0.3030 | 945.0 | 699.3 | |
| 0.00 | 1.54 | 0.00 | 0.78 | 15.20 | 242.96 | -3.90 | 17.84 | 0.2152 | 857.0 | 606.8 | |
| 0.00 | 1.27 | 0.00 | 0.65 | 17.85 | 241.14 | -5.72 | 20.84 | 0.2678 | 736.0 | 590.6 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
